2.4 Mounting SIMODRIVE POSMO A
2-58
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
2.4.4 Extension set ”separate version” POSMO A – 300 W
The separate version for SIMODRIVE POSMO A – 300 W means that
the drive unit is mounted separately from the motor. This means that
for applications with restricted space, the space requirement of the
motor can be flexibly adapted to the mounting space available.
The SIMODRIVE POSMO A – 300 W is supplied as complete unit.
This is the reason that for this particular application, the drive unit is to
be separated from the motor and connected to the motor using the ex-
tension set ”separate version”.
It is only permissible to use the pre–fabricated extension set from
Siemens. Refer to Chapter 1.2 for ordering data.
When disassembling the drive unit (refer to Fig. 2-29) and when mount-
ing/installing the extension set (refer to Fig. 2-30), proceed in the fol-
lowing sequence:
!
Warning
Before disassembling the drive unit, the positioning motor must be
brought into a no–voltage condition and locked–out so that it cannot be
powered–up again!
1. Release and remove the four retaining screws of the drive unit (do
not re–use!).
––> Allen key SW 3
2. Remove the drive unit
1
2
SW 3
POSMO A – 300 W
Motor
Drive unit

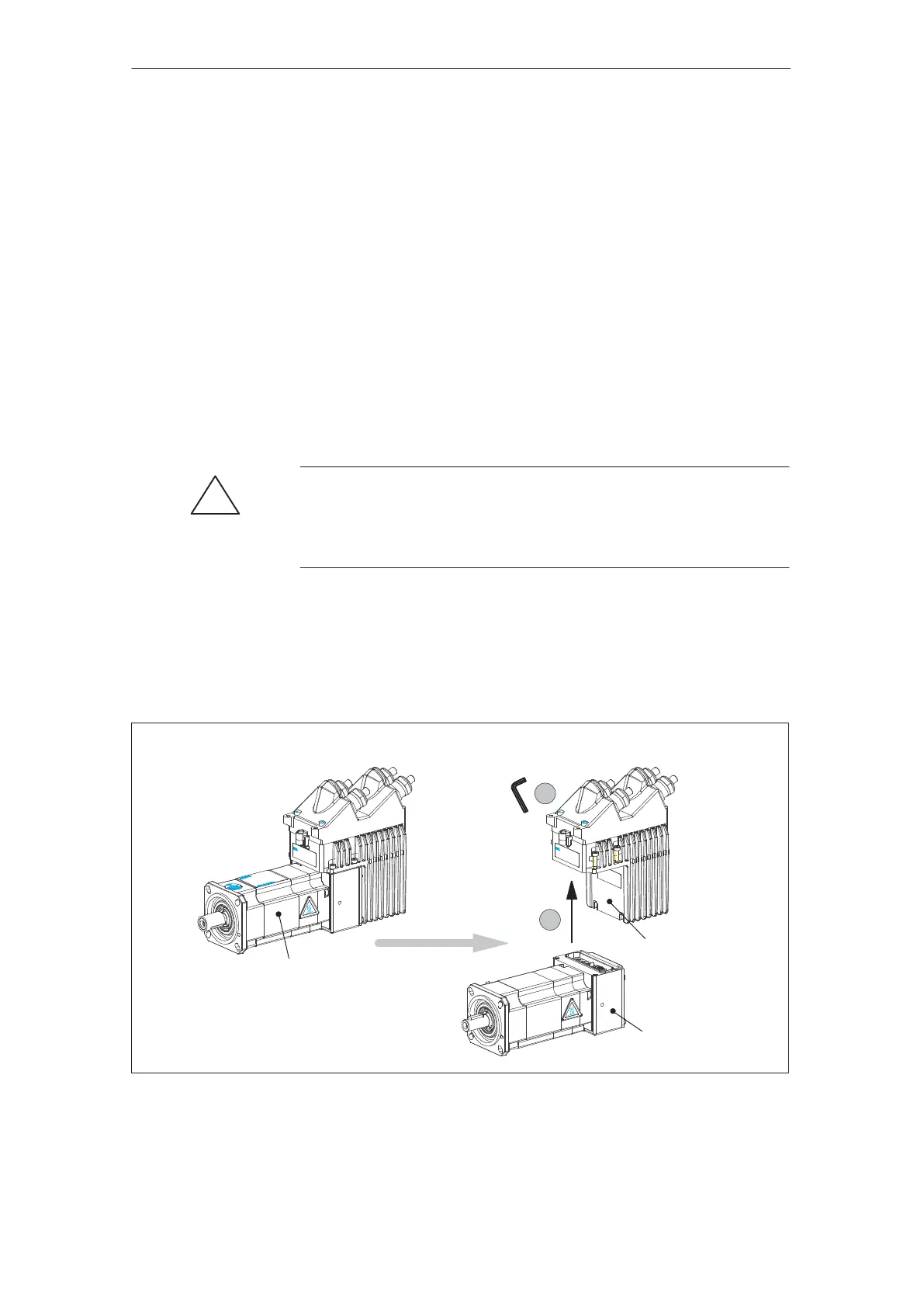

Fig. 2-29 Withdraw the drive unit from the motor
How is the
extension set
mounted?
2 Installing and Connecting–Up
02.9906.05
