2.3 Connection and wiring overview
2-44
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
2.3.1 Connection and setting possibilities in the connection cover
The SIMODRIVE POSMO A wiring is completely realized in the con-
nection cover.
One connection can be used as input or output. The user defines this
using the appropriate wiring.
All of the cable connections are fed through PG glands.
Slotted
screw
Dummy plugs (reserve)
Refer under the index entry ”changing the cable outlet
direction”
When using this connection, the dummy plug is replaced
by a PG11 PG gland.
Cap
When using this
connection, the dummy
plug is replaced by a
PG11 PG gland.
Cable for digital
Inputs/outputs
Slotted screw
Cable for
S PROFIBUS
or
S PROFIBUS and
electronics power
supply
Input/output
Cable for the load
power supply
Input/output
Cable for
S PROFIBUS
or
S PROFIBUS and electronics power supply
Input/output
––> e.g. to the next drive
Cable for the load power supply
Input/output
––> e.g. to the next drive
4 (1.0 x 6.5)
max. 1.8 Nm
Potential bonding/
protective conductor
with cable lug and screw
Cross–section:
 4 mm
2
Thread:
M5 x 10
hole
Torx T20
max. 3 Nm
Protective conductor

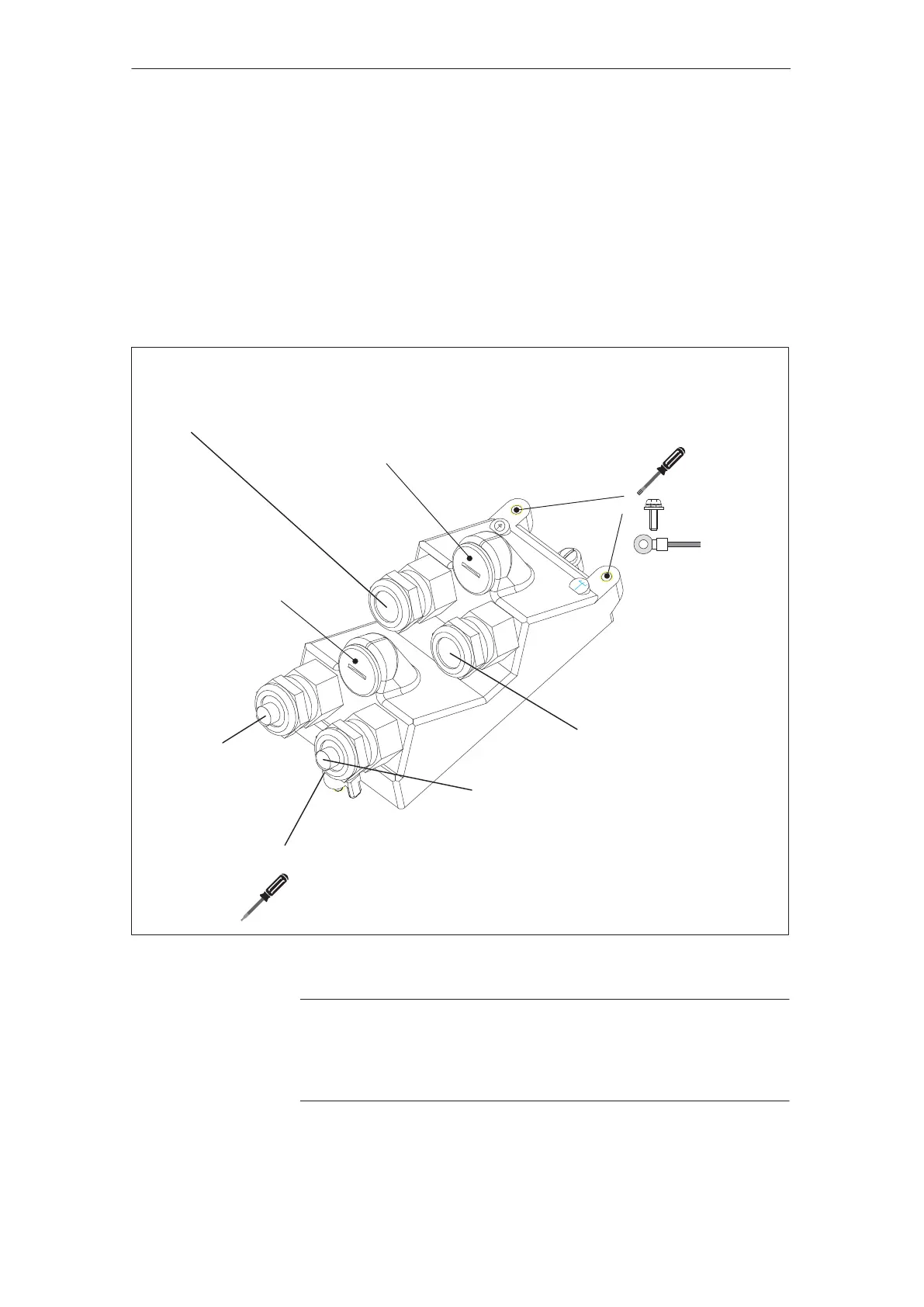

Fig. 2-14 SIMODRIVE POSMO A connection cover from the top
Caution
In order to guarantee the degree of protection, all of the connections
must be provided with either a dummy plug or with a PG gland; both of
these must be tightly screwed–in.
Connection cover
from the top
2 Installing and Connecting–Up
02.9908.03
