C.2 Dimension drawings for SIMODRIVE POSMO A – 300W
C-281
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
The reproduction, transmission or use of this document or its contents is not permitted without express written authority. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Weitergabe sowie Vervielf ltigung dieser Unterlage, Verwer– tung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdr cklich zugestanden. Zuwiderhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten, insbesondere f
r
den Fall der Patenterteilung oder GM–Eintragung. Confi
titre de secret d’entreprise. Tous droits r servs.
Confiado como secreto industial. Nos reservamos todos los derechos Comunicado como segredo empresarial. Reservados todos os direitos
* PRO/E *
8765432
1
9
H G F E D C B A
8
CAD–Drawing
Manual modification prohibited
G F E D C B A
7654321 9101112
Belonging to this:
PRO/E–CAD
First angle
projection
DIN 6
C C
m
k
109
4.291[]
36
1.417[]
72
2.835[]
45
–0,2
1.772
–.007[]
l
84
3.307[]
16
.630[]
k620
+0,015
+0,002
.7874
+.0005
+.0001[]
M6
h655
–0,019
2.1654
–.0007[]
9
.354[]
84
3.307[]
80
3.150[]
36
1.417[]
4,5
.177[]
22,5
.886[]
6
.236[]
84
3.307[]
159,399
6.276[]
172
[6.772]
97
3.819[]
46
1.811[]
109,5
4.311[]
Ausf./
version
Type Getriebe/gearbox Achshöhe/
shaft height
Gewicht / weight
ohne Kabel/without cable
Motor / motor
Gewicht / weight
ohne Kabel/without cable
Umrichter / inverter
Länge / length Schutzart/
Degree of protection
bersetzungen /
ratios
ohne Bremse/ without brake
mit Bremse/
with brake
klm
mm [inch] kg [lb] mm [inch]
01 6SN2155
3–stufig/
3–stage
120 36[1.417] 7,2[15.9] 7,3[16.1]
1.5[3.3]
254[10] 228[8.976]140[5.512] IP54
General tolerance . .
Doc. number: A5E00282014 with 3 st. G._m
ISO 2768–mk . .
Scale: 1 :2 kg/piece: .
Tolerance . .
ISO 8015
.
A1
.
Tolerances: Surface: Material:
Sheet size
Date: 20.04.2005
Ma blatt POSMO A 300W modular mit 3–stufigem Getriebe
Author: Heilmann Check: Hecht dimension sheet POSMO A 300W modular
with 3 stage gearbox
Dep.: MC RD45 Name: Site: Erlangen F80
Type/MLFB:6SN2155
A5E00282014
MB
AC
1
Sheet:
A&D
1
Article: Doc.type Revision
Sheets:
Rev. Modification Date Name Replacement for/replaced by:
Ausführung mit Paßfeder / version with key
Thread M5x10 (3x) for lifting eye and can be used for support / thread M5x10 (M5x.394) (3x) useful for lifting eye and support
1:2
C–C
Abmaße nach DIN 6885Bl1/ Dimensions acc. to DIN 6885 Sh.1
Note: Additional dimension data on the motor – 300 W and drive unit, refer to the dimension drawings for SIMODRIVE POSMO A – 300 W in Chapter C.2.

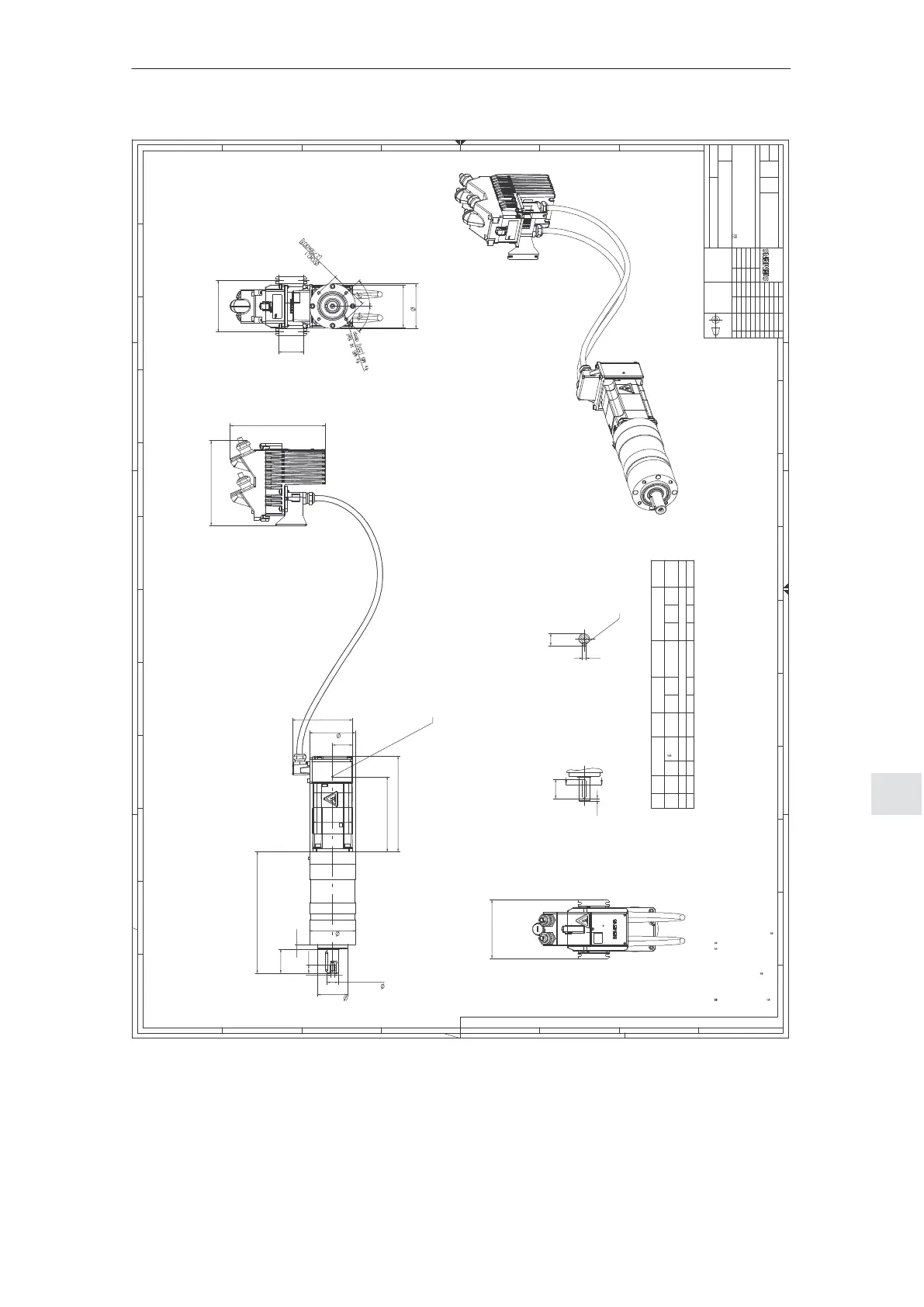

Fig. C-9 Dimension drawing: SIMODRIVE POSMO A – 300 W extension set ”separate version” with
planetary gearbox (3–stage)
J
C Dimension Drawings
