Electrical connection
8.3 System integration
1FT2 synchronous motors for SINAMICS S120
118 Configuration Manual, 03/2021, A5E50645584B AA

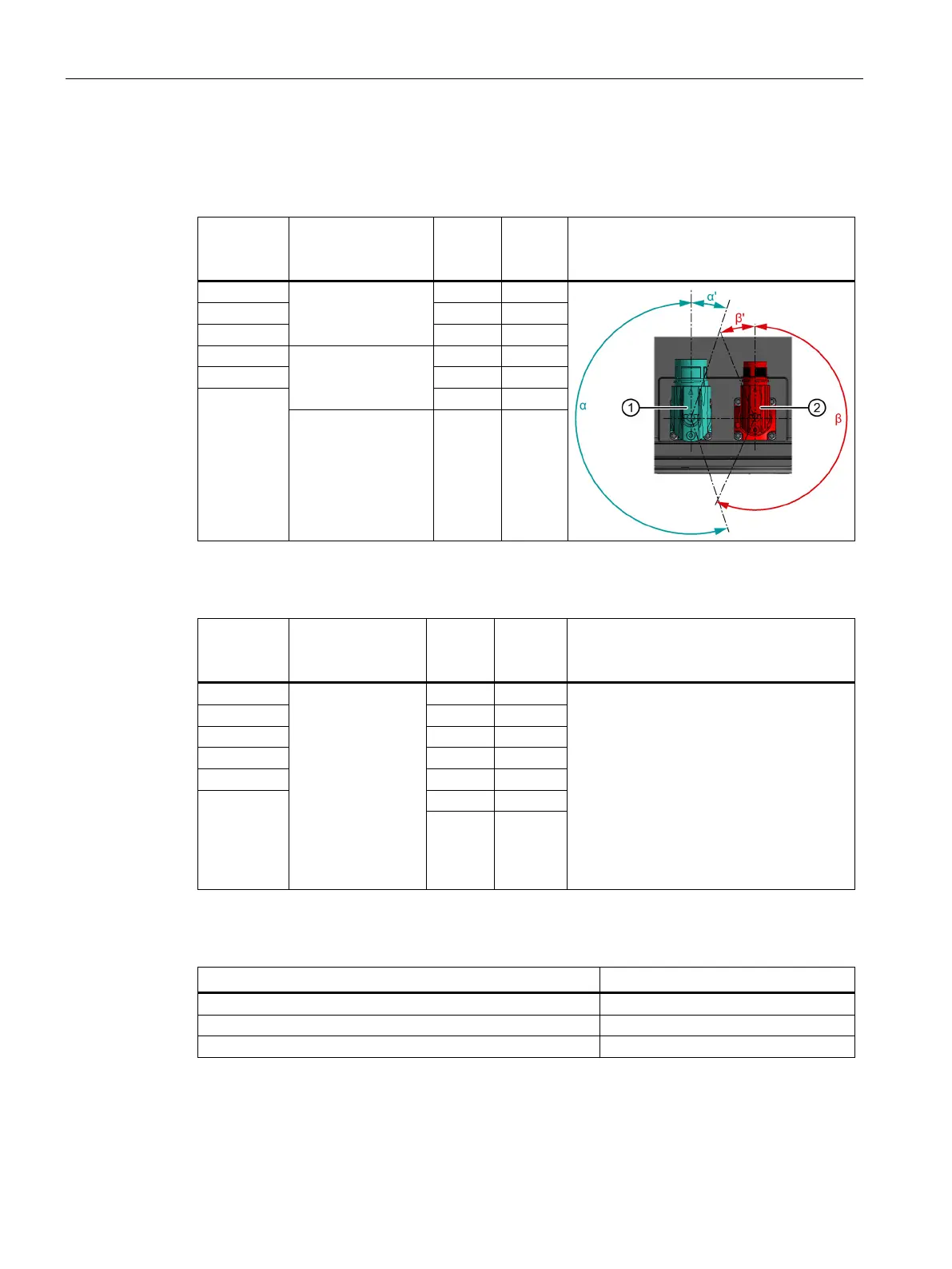

Rotatability of the power connector and signal connector
Table 8- 3 Rotation range of the power connector ①
Motor Connector size of
the power con-
nector ①
Angle α Angle α' Drawing
1FT2☐03
M17
205
29
1FT2☐04
205
25
1FT2☐05
228
35
1FT2☐06
M23
222
40
1FT2☐08
222
46
1FT2☐10
222
55
M40
228
48
Table 8- 4 Rotation range of the signal connector ②
Motor Connector size of
the signal con-
nector ②
Angle β Angle β' Drawing
1FT2☐03
M17
209
25
See table "Rotation range of the power
connector"
1FT2☐04
205
25
1FT2☐05
215
48
1FT2☐06
215
41
1FT2☐08
215
46
1FT2☐10
215
57
210
48
Table 8- 5 Maximum rotating torque for the connectors
Connectors
Max. torque when rotating
Connector M17
8 Nm
Connector M23
12 Nm
Connector M40
20 Nm
