Electrical connection
8.3 System integration
1FT2 synchronous motors for SINAMICS S120
122 Configuration Manual, 03/2021, A5E50645584B AA

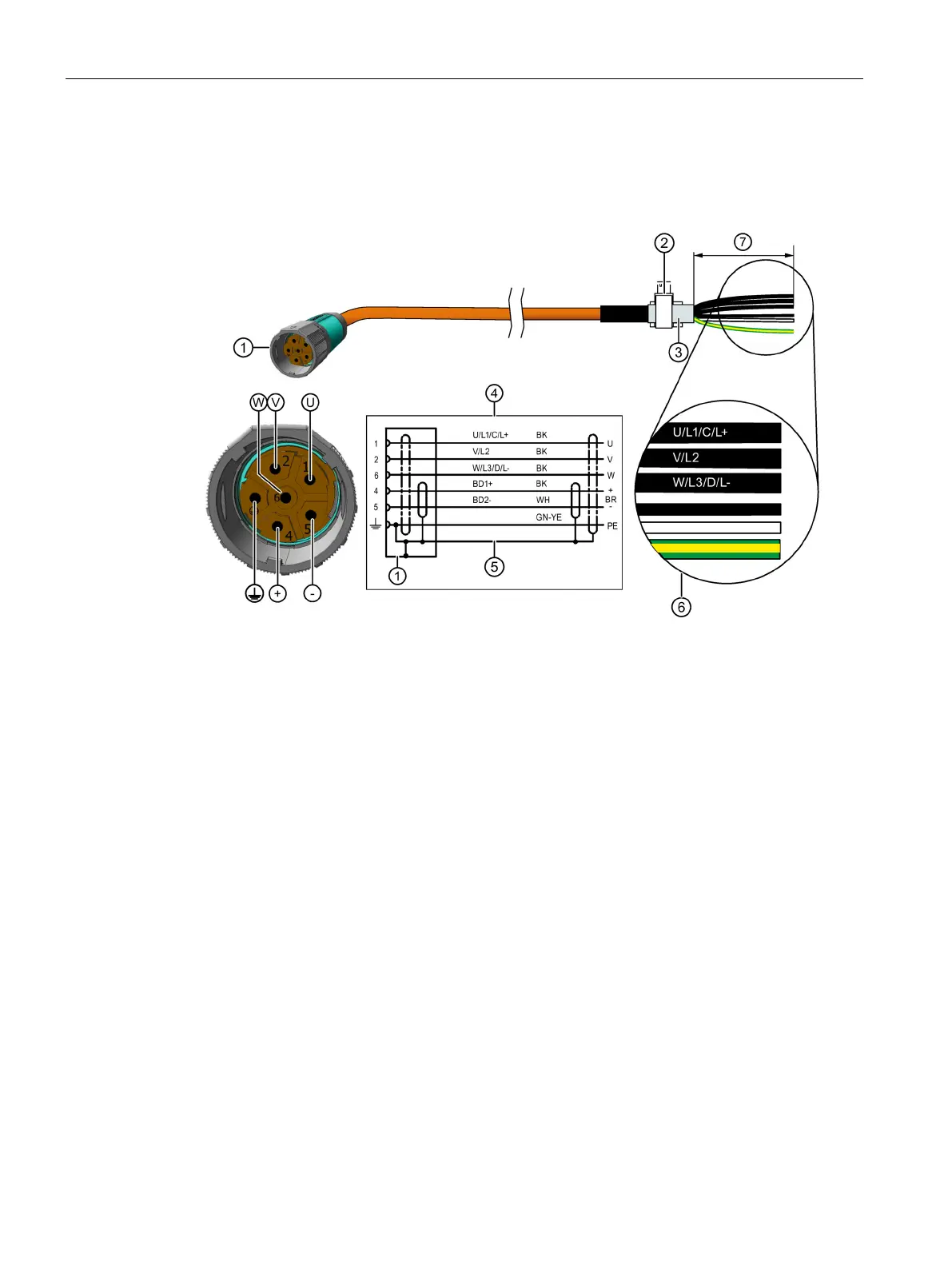

For connector size M23
SPEED-CONNECT connector, size M23
Terminal for the cable shield
④ Connection diagram
U; V; W = power cables, 1.5 mm
2
, each cable with separate shielding
BD1+ and BD2- = brake cable without lettering, 1.5 mm
2
, shielded together
PE = protective conductor
Recommended length of the cable ends: 105 mm
