Mechanical properties
3.6 Radial and axial forces
1FT2 synchronous motors for SINAMICS S120
Configuration Manual, 03/2021, A5E50645584B AA
37

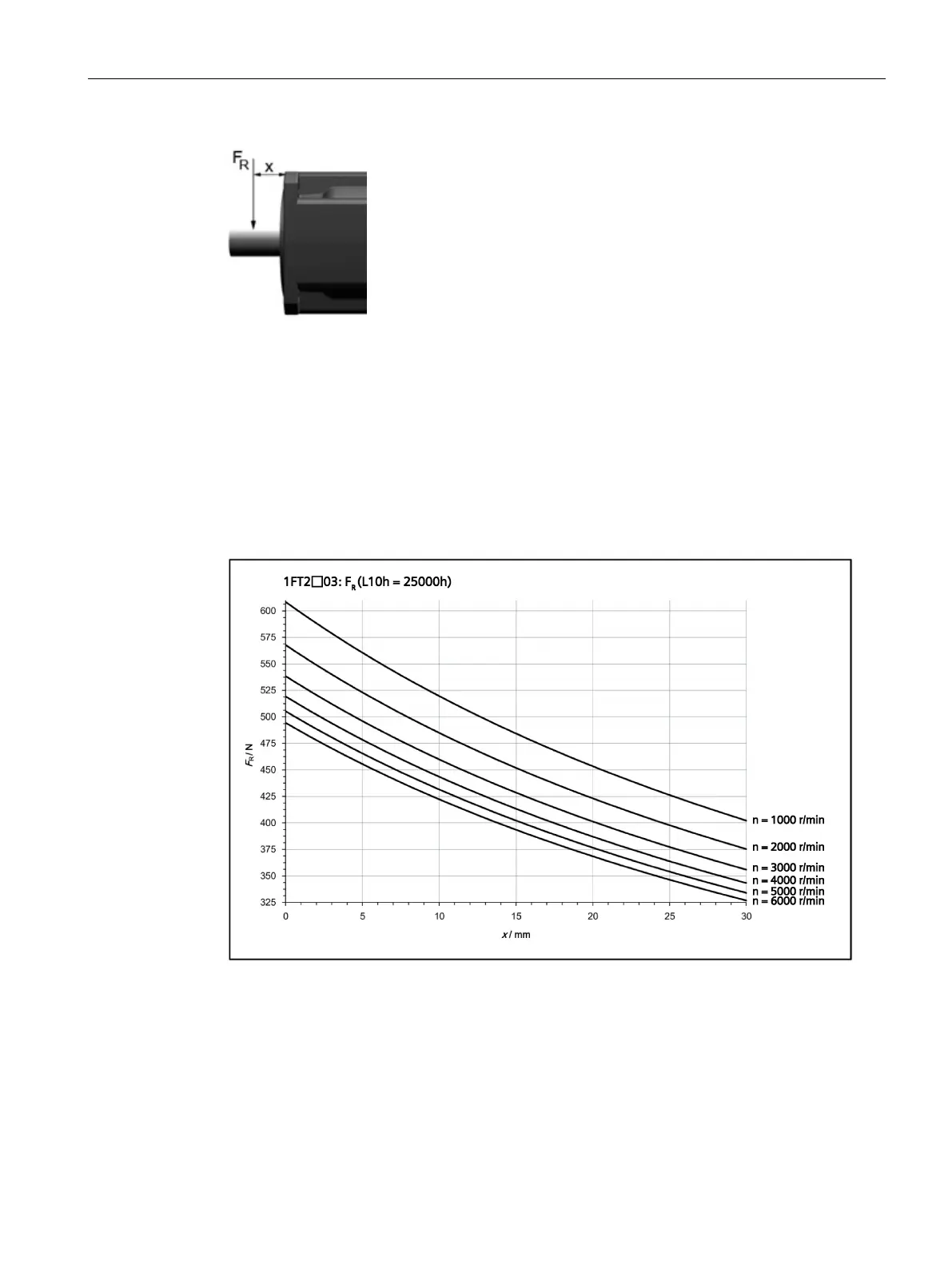

Point of application of the radial force at the shaft extension
Distance between where the radial force is applied and the flange in mm
Figure 3-1 Force application point at the DE (A side)
The following diagrams indicate the maximum permissible radial force for the corresponding
motor shaft height. It depends on the force application point and the average speed. It is
given for a nominal bearing service life (L10h) of 25000 h.
Radial force diagram 1FT2x03
Figure 3-2 Maximum permissible radial force F
R at a distance x from the flange for a nominal bearing
lifetime of 25000 h
