Mechanical properties
3.6 Radial and axial forces
1FT2 synchronous motors for SINAMICS S120
40 Configuration Manual, 03/2021, A5E50645584B AA

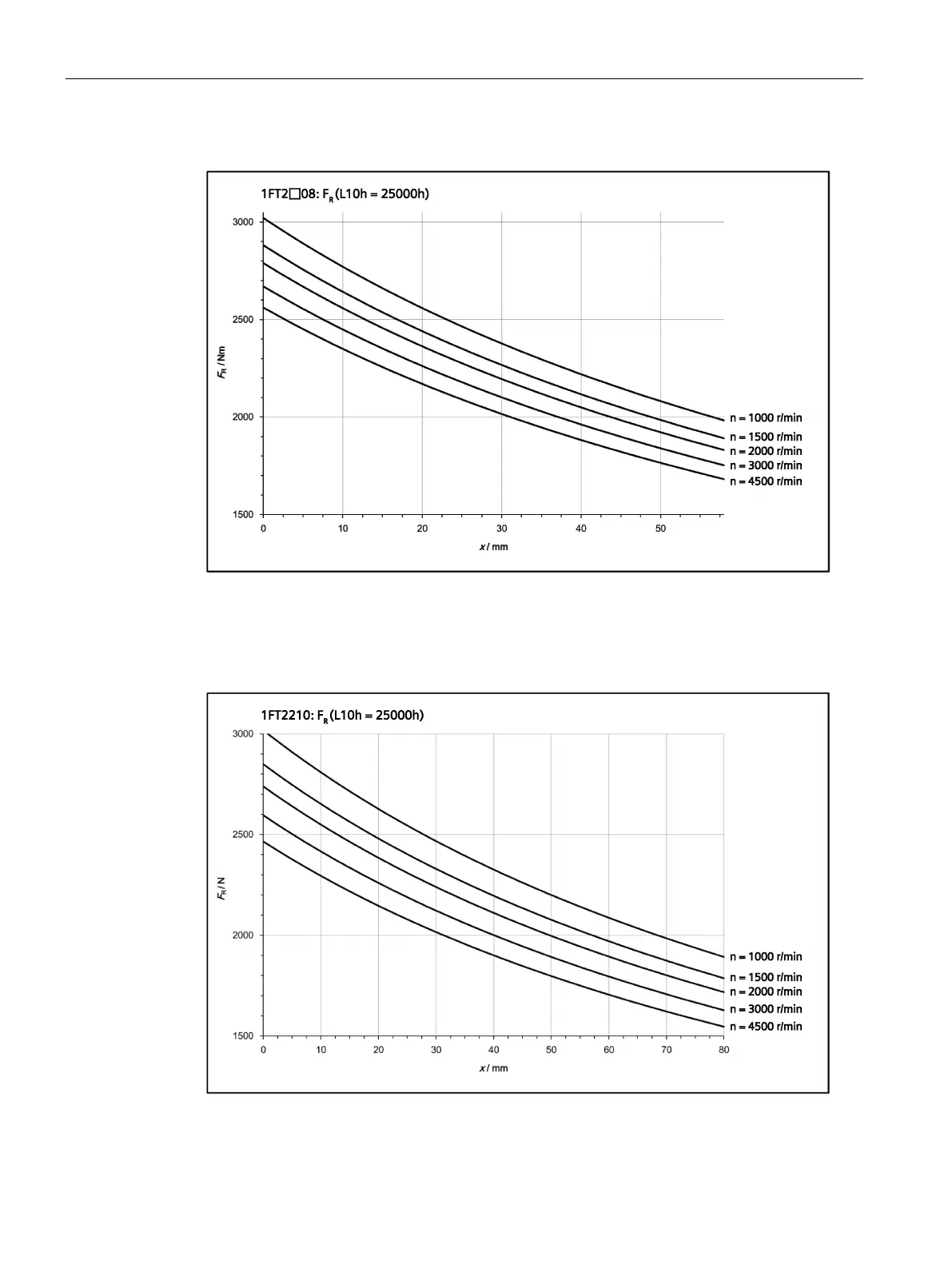

Radial force diagram 1FT2x08
Figure 3-7 Maximum permissible radial force FR at a distance x from the flange for a nominal bearing
lifetime of 25000 h
Radial force diagram 1FT2210
Figure 3-8 Maximum permissible radial force F
R at a distance x from the flange for a nominal bearing
lifetime of 25000 h
