Configuring and installing
4.3 Installing
SIMOTION C
84 Operating Instructions, 02/2012
4.3 Installing
4.3.1 Installing mounting rails
Installing a 2-meter mounting rail
You must prepare the 2-meter mounting rail for installation. Proceed as follows:
1. Shorten the 2-meter mounting rail to the required dimension.
2. Mark in
– Four holes for mounting screws (dimensions: see table below)
– One hole for a protective conductor mounting screw.
3. Is the mounting rail longer than 830 mm?
If so: you must drill additional holes for more mounting screws to stabilize the mounting
rail. Mark out these holes along the groove in the middle section of the rail (see the figure
below). These additional holes should be spaced approximately every 500 mm.
If not: no additional work required.
4. Drill the 6.5
+ 0.2
mm-diameter holes where marked for M6-size screws.
5. Fit an M6 screw to secure the protective conductor.
*URRYHIRUGULOOLQJDGGLWLRQDO
KROHVIRUIL[LQJVFUHZV
+ROHIRUFRQQHFWLQJDSURWHFWLYH
FRQGXFWRU
+ROHIRUIL[LQJVFUHZ
'ULOOHGKROHIRUH[WUDIL[LQJVFUHZ
+ROHIRUIL[LQJVFUHZ

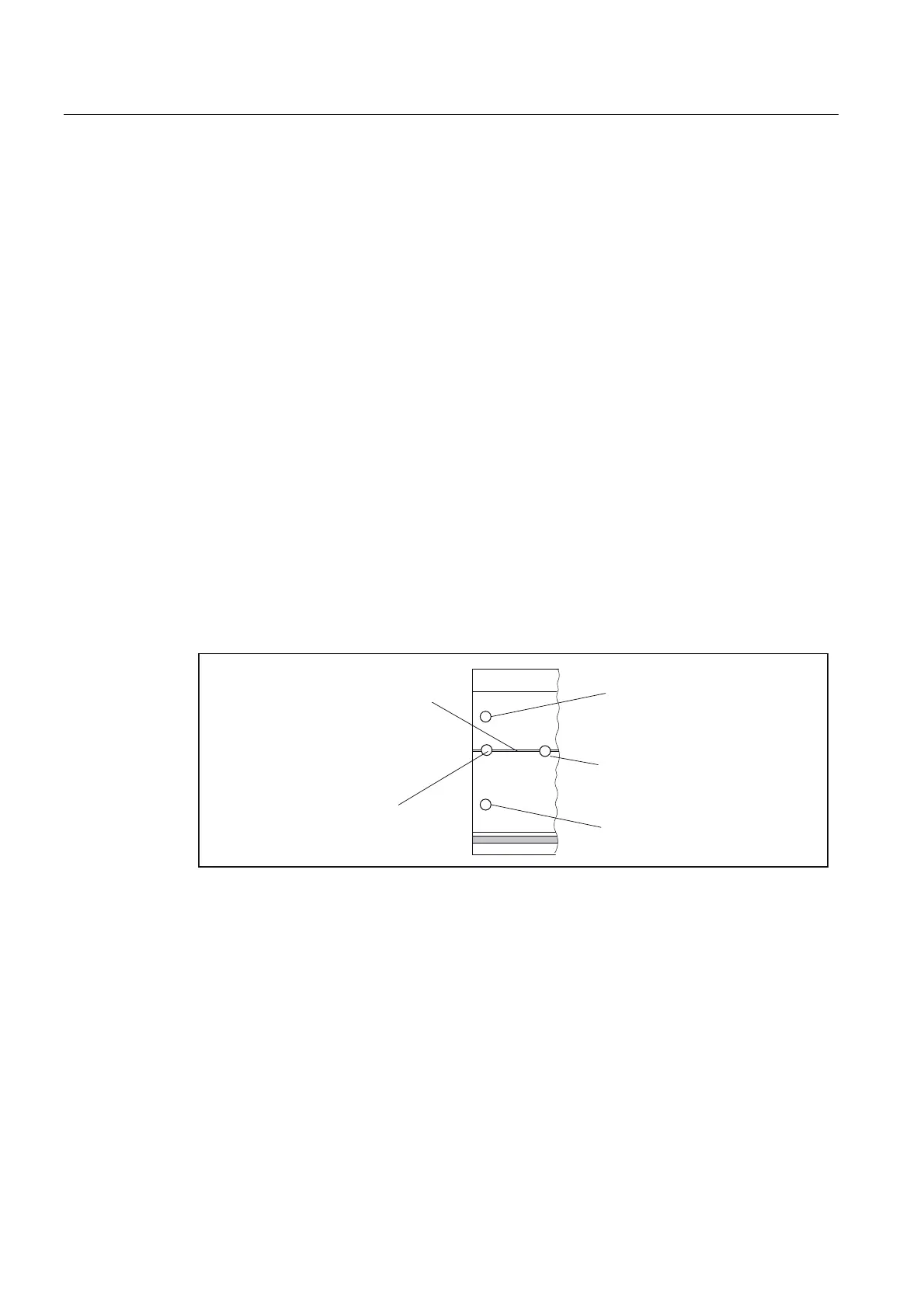

Figure 4-5 Mounting holes in a 2-meter mounting rail
