Motion control has been combined with two other open-loop control functions found in most
machines: PLC and technology functions.
This approach enables the motion control of axes and machine control within the same system.
The same applies to technology functions, such as pressure control of a hydraulic axis. A
seamless switch can be made from position-controlled positioning mode to pressure control.
Combining the three open-loop control functions of motion control, PLC and technology
functions has the following benefits:
● Reduced engineering overhead and increased machine performance
● Time-critical interfaces between the individual components are no longer required
● Simple, uniform and transparent programming and diagnostics of the entire machine
The following figures show system configurations with SIMOTION C230-2, C240 and C240 PN.
+0,GHYLFH
352),%86'3
352),%86'3LVRFKURQRXVHTXLGLVWDQW
36
3*3&
(WKHUQHW
6,2
2QERDUGGULYHLQWHUIDFH
6
&
(7
(7
6,0$7,&

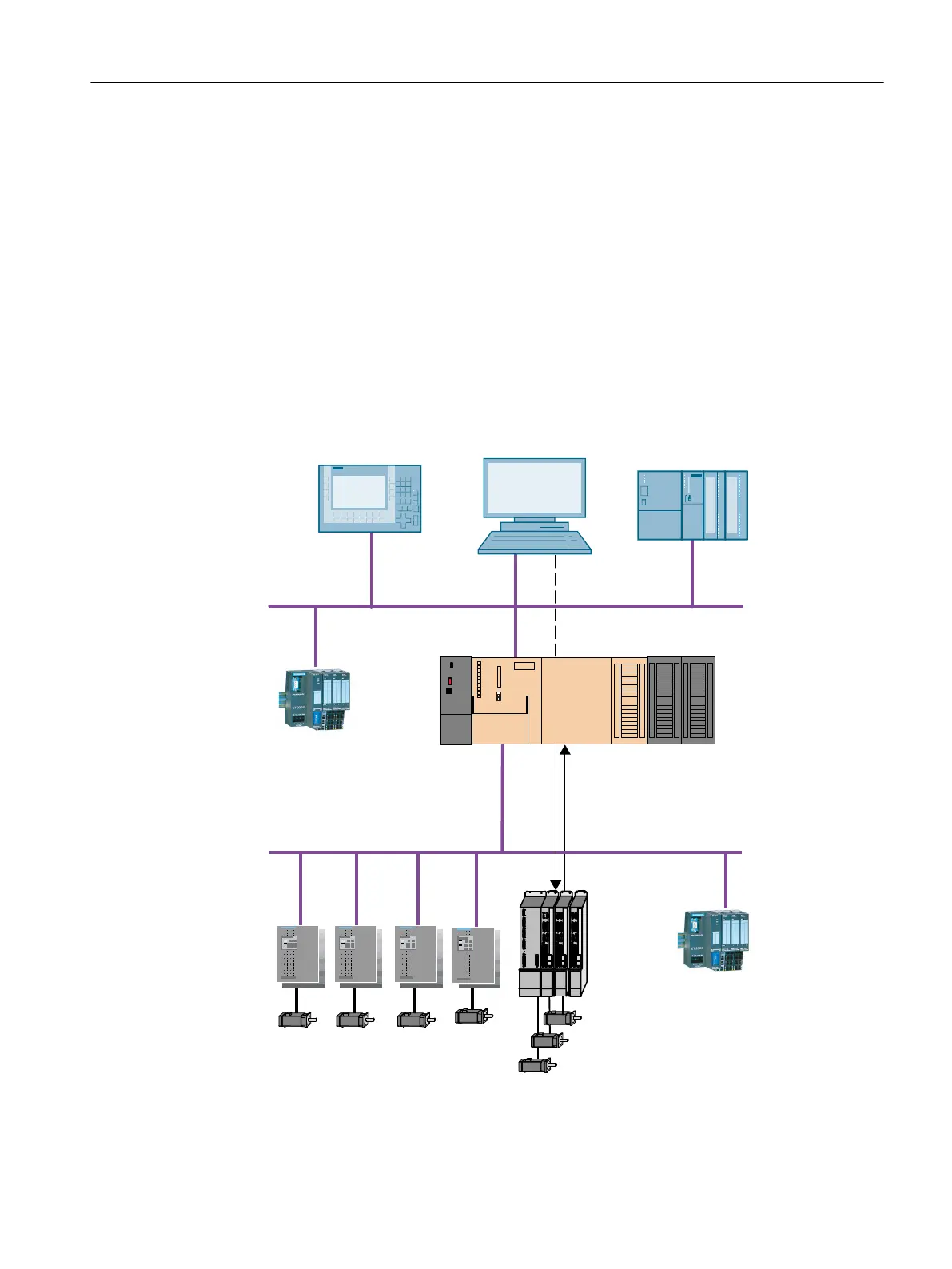

Figure 2-2 System overview of C240
Description
2.1 System overview
SIMOTION C
Operating Instructions, 11/2016, A5E33441428B 17
