Options
7.2 Hand-held device
Intelligent Operator Panel (IOP)
Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
111
Fitting the batteries
The hand-held device is powered by four 'AA' rechargeable batteries; these batteries are
supplied with the hand-held kit. The batteries are fitted as shown in the figure below.

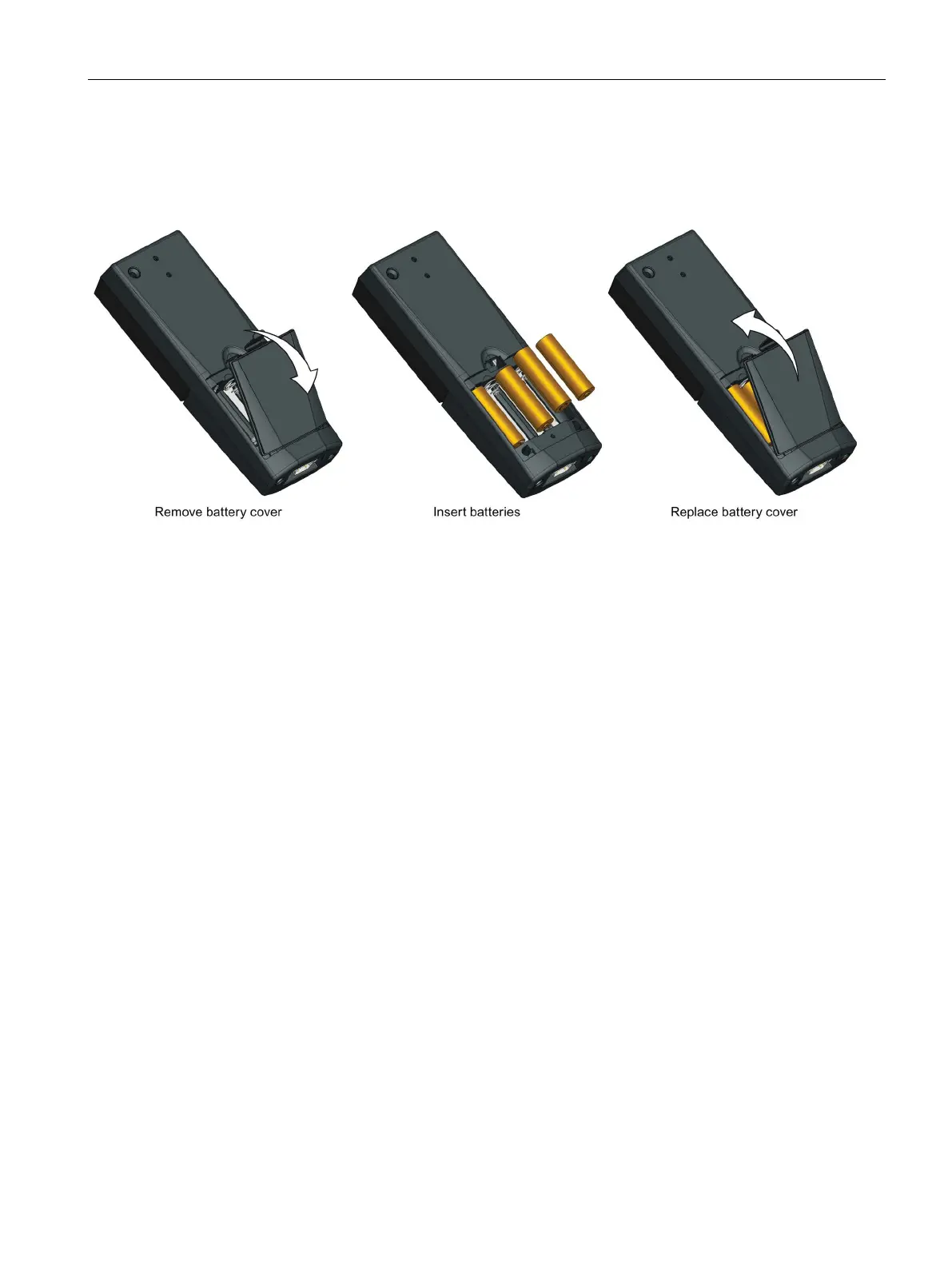

Figure 7-5 Installing batteries for handheld kit
