Siemens SINAMICS Intelligent Operator Panel User Manual

Options
7.2 Hand-held device
Intelligent Operator Panel (IOP)
110 Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF

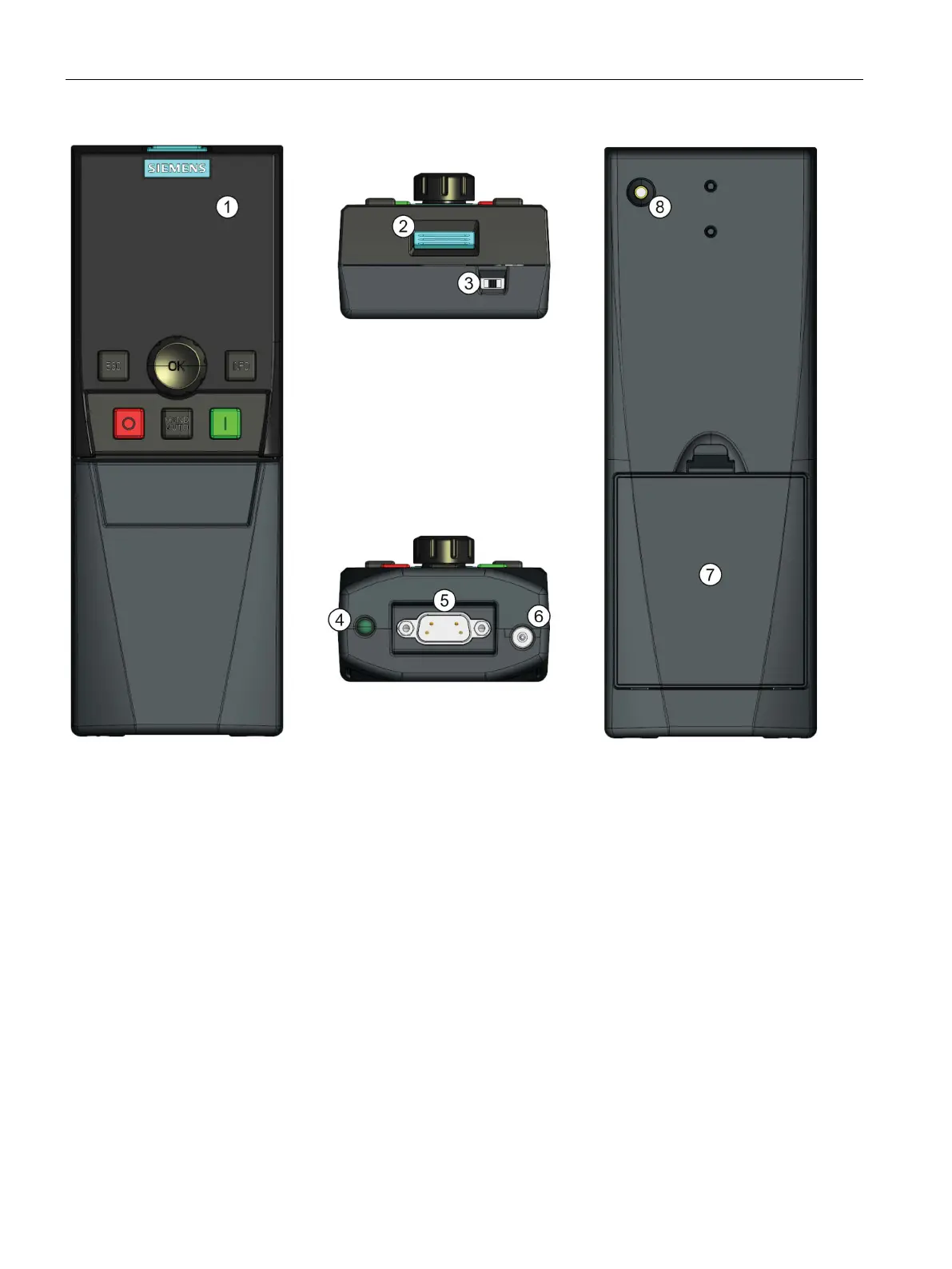

Figure 7-4 IOP hand-held kit layout
1. Intelligent Operator Panel (IOP)
2. IOP release catch
3. ON/OFF switch
4. Charging LED - ON when charging, OFF when charged
5. 9-pin Sub-D male connector (RS232)
6. Charging unit input
7. Battery compartment cover
8. IOP retaining screw
