6.2 Diagnostics
Intelligent Operator Panel (IOP)
Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
61

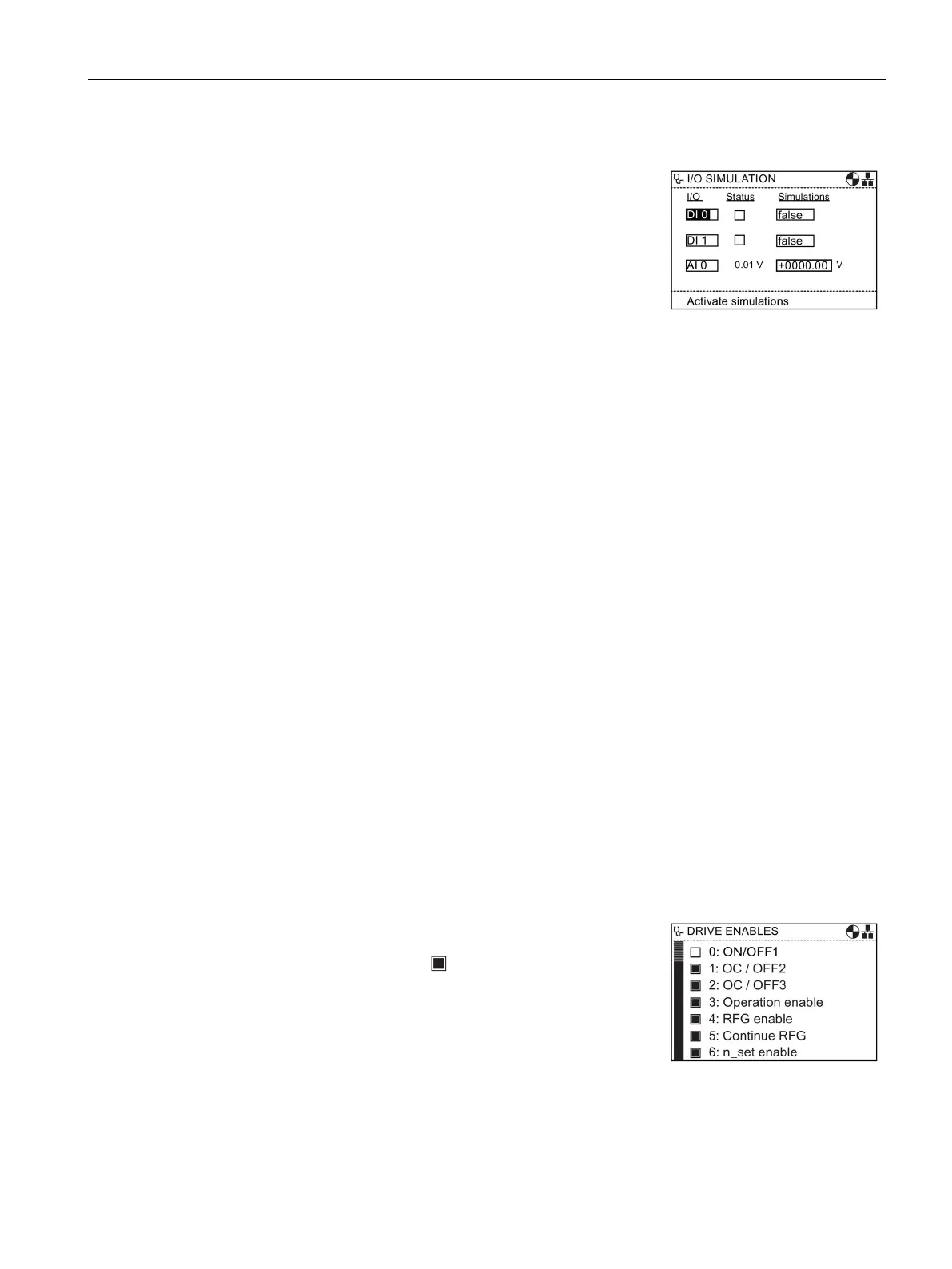

The IOP simulation screen allows digital and analog IOs to be
simulated without the requirement for external signals. These
features are of gre
at benefit during commissioning and fault
finding, as the user can quickly simulate a situation without
using wires, tools and external equipment.
A digital input can be made high without any wires in the terminals.
An analog input or output can be driven to any value without any wires in the terminals.
A digital output can be overridden and made high.
The screen presents the following options:
I/O - Three I/Os can be simulated - two digital and one analog.
Status - this indicates the real-time status of the input or output. If the square is shaded
then the input or output signal is present. This is a read-only section of the screen.
Control - this column of the screen displays the present status of the input or output and
can be altered.
To use the I/O simulation the following actions should be performed:
Using the
, rotate the wheel until the required digital input or output is displayed in
the first field.
Press
.
The relevant control field is highlighted.
Using the
, rotate the wheel until the required control signal is displayed.
Press
.
Repeat this process until all the fields have been completed as required.
When all fields have been completed the "activate the simulation" will be highlighted.
Press
. The simulation will start running.
While the simulation is running "
" will be highlighted - Press
to
stop the simulation.
The drive enables screen displays a list of all the current en
a-
bling signals for the Inverter. If the enable signal is present
and active it will be selected
. If the enable signal is not
esent and is not active it will be unselected ☐.
-only and is for information purposes only.
