Controlling the safety functions
5.2 Control of "STO" and "SS1" via terminal module for option K82
Safety Integrated
Function Manual, 08/2023, A5E03264275A
45

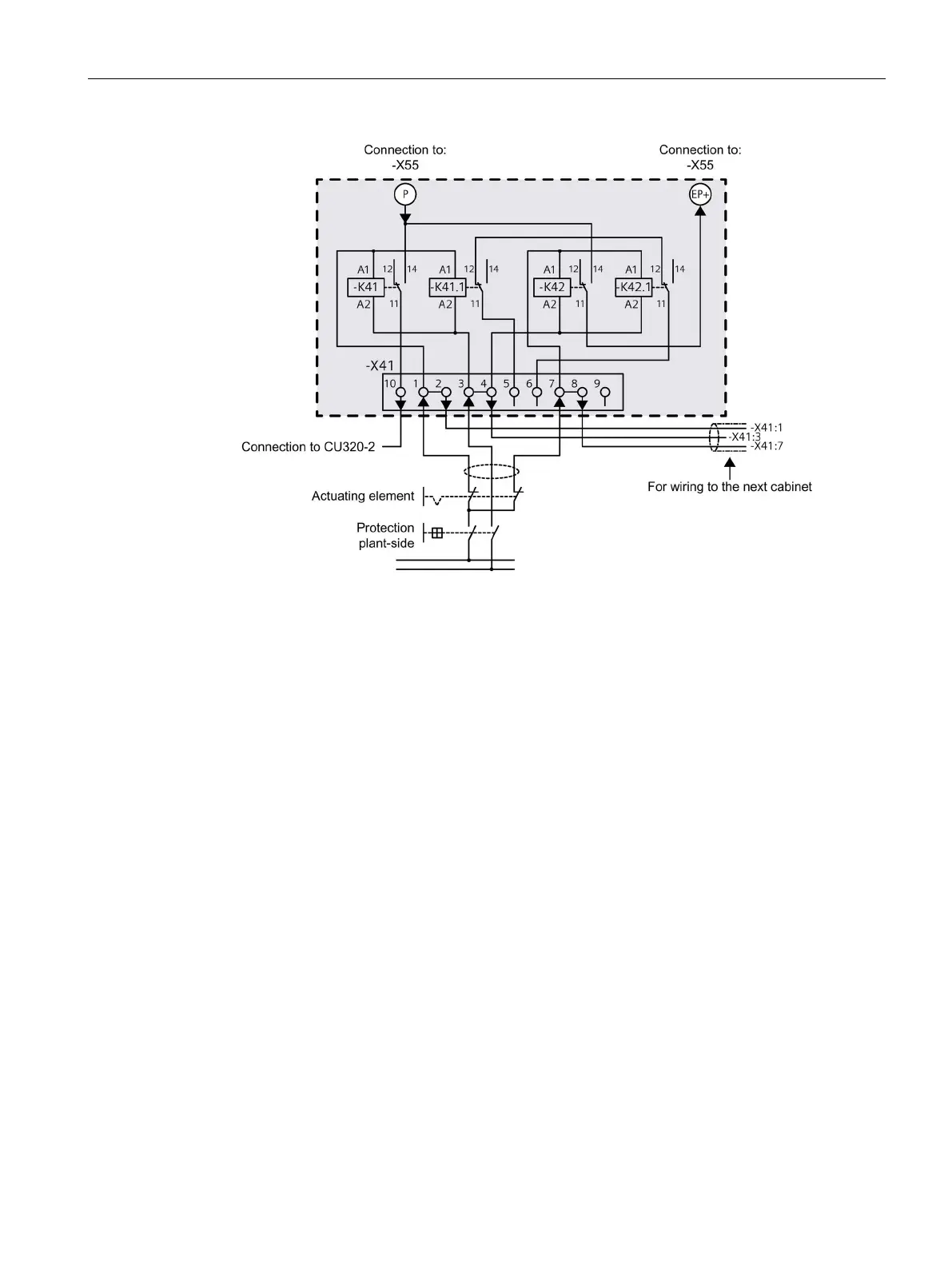

Figure 5-4 Circuit Terminal Module for option K82
A switch according to ISO 13850, positive opening according to IEC 60947-5-1 or a certified
safety control must be used as actuating element.
5.2.2.2 Use of the K82 option with Control Unit CU320-2
In conjunction with option K90 or K95 (CU320-2 DP or CU320-2 PN), terminal -X41:10 is
already connected inside the cabinet with digital input DI 7 of the CU320-2.
These interconnections have to be taken into account when Safety function parameters are
assigned.
