Siemens SINAMICS Series Function Manual

Controlling the safety functions
5.4 Activating "SBC" via the Safe Brake Adapter
Safety Integrated
88 Function Manual, 07/2016, A5E03264275A
Interfaces

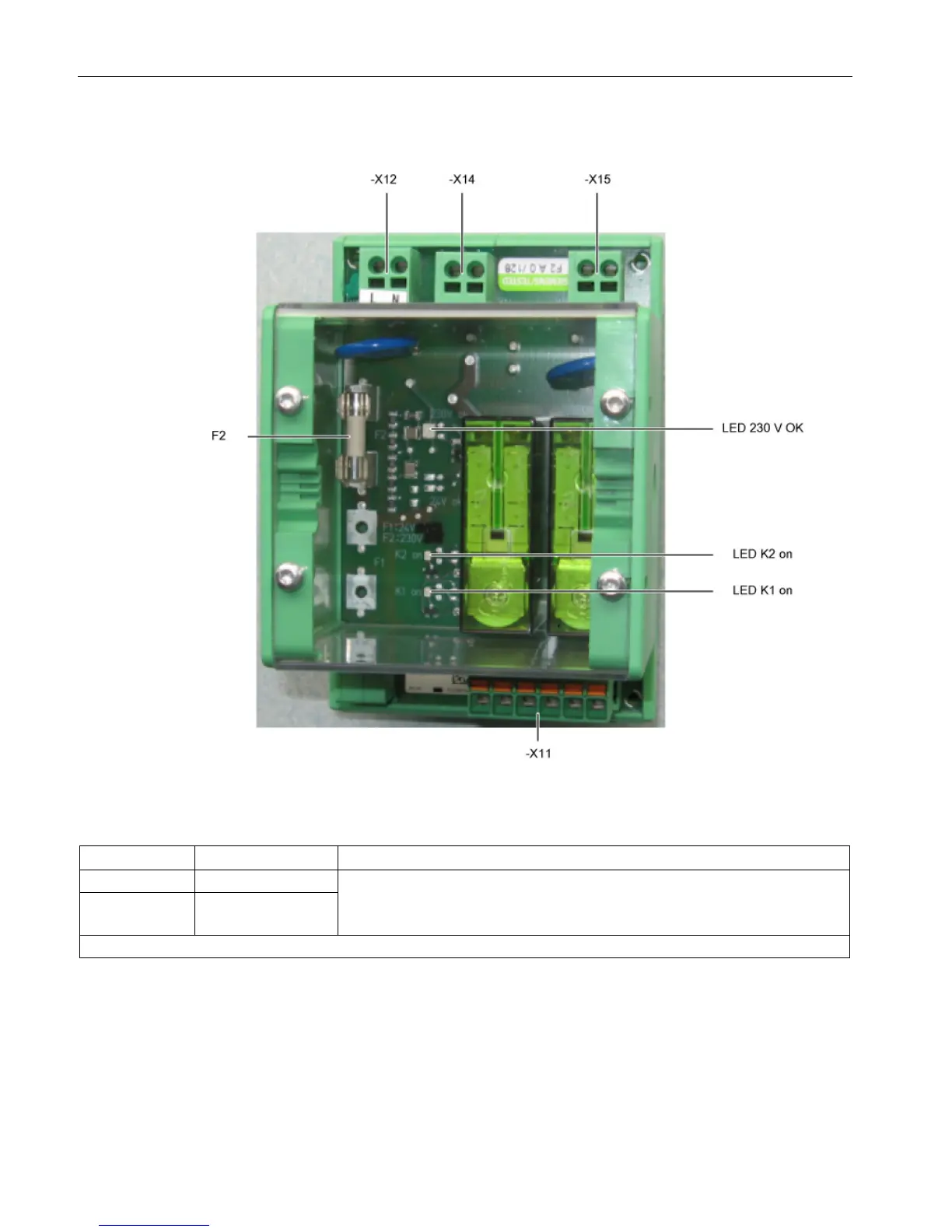

Figure 5-7 Safe Brake Adapter interface overview 230 VAC
Table 5- 22 Terminal strip X12, 230 VAC power supply
Connection
Signal
Description
X12.1
L
Supply voltage: 230 VAC
Current consumption: 2 A
Protection according to IEC 60269-1, operating class gG
X12.2 N
Max. connectable cross-section 2.5 mm
2

Siemens SINAMICS Series Specifications

General

Product Line	SINAMICS
Cooling Method	Air-cooled, Liquid-cooled
Voltage Range	200 V to 690 V
Power Range	0.12kW - 250kW
Communication Interfaces	PROFINET, PROFIBUS, Ethernet
Control Modes	Vector control, V/f control
Protection Class	IP20
Type	Variable Frequency Drives (VFD)
