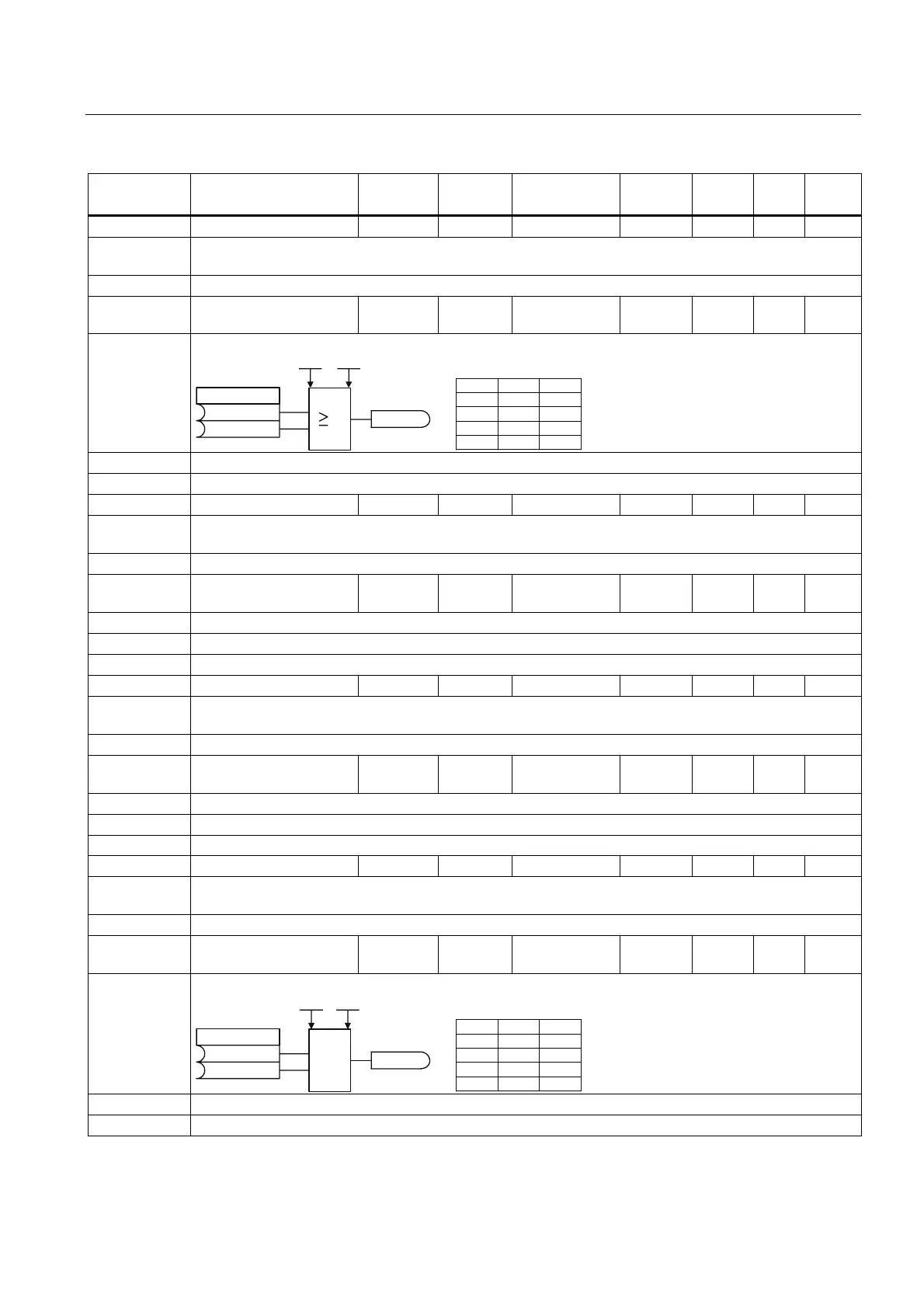

Parameter list
7.2 Parameter list
SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
215
Parameter Function Range Factory
default
Can be
changed
Scaling Data
set
Data
type
Acc.
Level
r2815.0 BO: AND 3 - - - - - U16 3
Output of AND 3 element. Displays and logic of bits defined in P2814[0], P2814[1]. See r2811 for the bit
field description.
Dependency: See P2814
P2816[0...1] BI: OR 1 - 0 U, T - - U32 /
Bin
3
P2816[0], P2816[1] define inputs of OR 1 element, output is r2817.
A
B
C
P2816
r2817
ABC
000
011
101
111
1
P2800 P2801[3]
,QGH[
,QGH[
Index: See P2810
Dependency: P2801[3] assigns the OR element to the processing sequence.
r2817.0 BO: OR 1 - - - - - U16 3
Output of OR 1 element. Displays or logic of bits defined in P2816[0], P2816[1]. See r2811 for the bit field
description.
Dependency: See P2816
P2818[0...1] BI: OR 2 - 0 U, T - - U32 /
Bin
3
P2818[0], P2818[1] define inputs of OR 2 element, output is r2819.
Index: See P2810
Dependency: P2801[4] assigns the OR element to the processing sequence.
r2819.0 BO: OR 2 - - - - - U16 3
Output of OR 2 element. Displays or logic of bits defined in P2818[0], P2818[1]. See r2811 for the bit field
description.
Dependency: See P2818
P2820[0...1] BI: OR 3 - 0 U, T - - U32 /
Bin
3
P2820[0], P2820[1] define inputs of OR 3 element, output is r2821.
Index: See P2810
Dependency: P2801[5] assigns the OR element to the processing sequence.
r2821.0 BO: OR 3 - - - - - U16 3
Output of OR 3 element. Displays or logic of bits defined in P2820[0], P2820[1]. See r2811 for the bit field
description.
Dependency: See P2820
P2822[0...1] BI: XOR 1 - 0 U, T - - U32 /
Bin
3
P2822[0], P2822[1] define inputs of XOR 1 element, output is r2823.
A
B
C
P2822
r2823
ABC
000
011
101
110
1
=
P2800 P2801[6]
,QGH[
,QGH[
Index: See P2810
Dependency: P2801[6] assigns the XOR element to the processing sequence.
