Siemens SINAMICS V20 Series User Manual

Parameter list

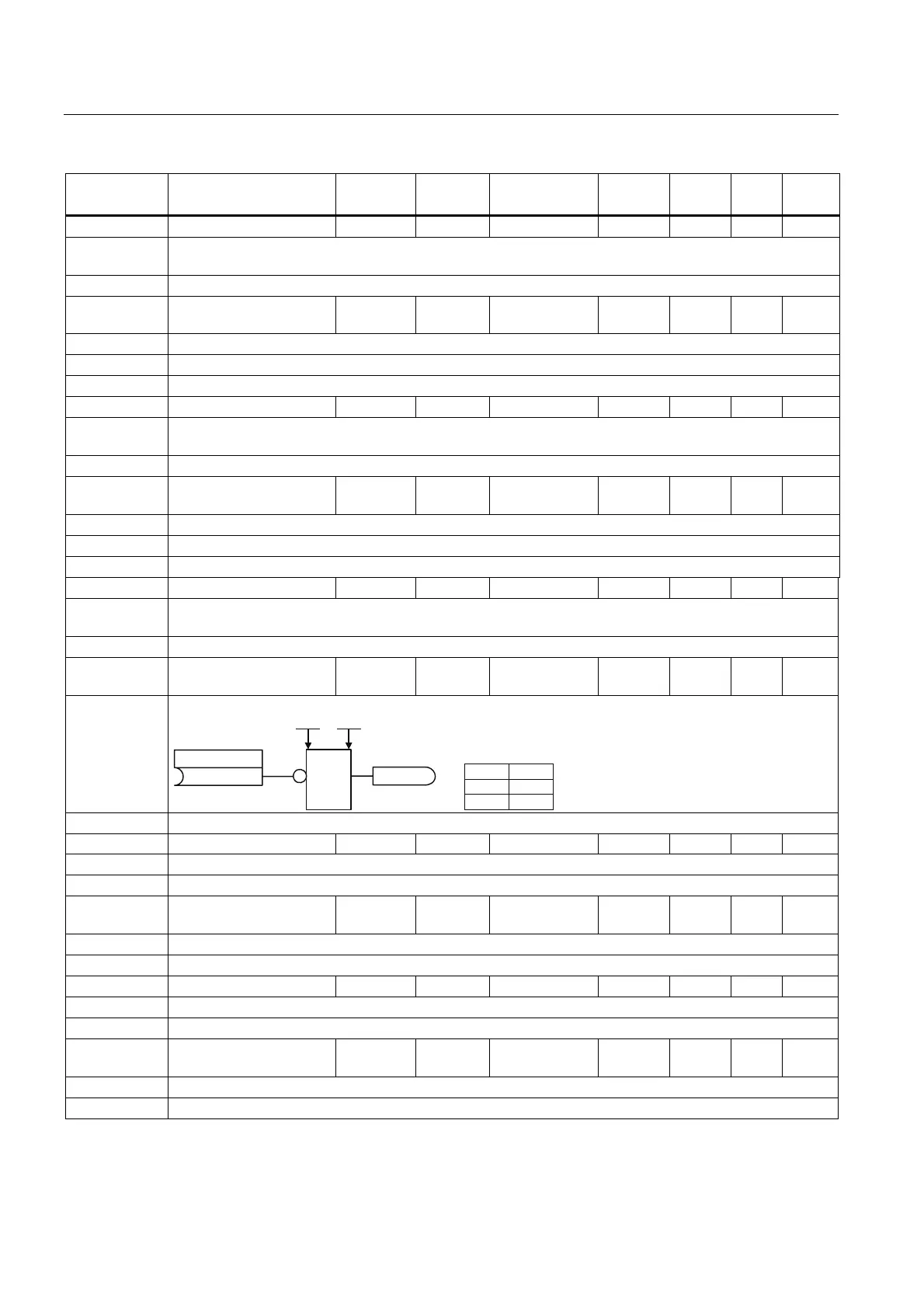

7.2 Parameter list
SINAMICS V20 Inverter
216 Operating Instructions, 07/2012, A5E03728167
Parameter Function Range Factory
default
Can be
changed
Scaling Data
set
Data
type
Acc.
Level
r2823.0 BO: XOR 1 - - - - - U16 3
Output of XOR 1 element. Displays exclusive-or logic of bits defined in P2822[0], P2822[1]. See r2811 for
the bit field description.
Dependency: See P2822
P2824[0...1] BI: XOR 2 - 0 U, T - - U32 /
Bin
3
P2824[0], P2824[1] define inputs of XOR 2 element, output is r2825.
Index: See P2810
Dependency: P2801[7] assigns the XOR element to the processing sequence.
r2825.0 BO: XOR 2 - - - - - U16 3
Output of XOR 2 element. Displays exclusive-or logic of bits defined in P2824[0], P2824[1]. See r2811 for
the bit field description.
Dependency: See P2824
P2826[0...1] BI: XOR 3 - 0 U, T - - U32 /
Bin
3
P2826[0], P2826[1] define inputs of XOR 3 element, output is r2827.
Index: See P2810
Dependency: P2801[8] assigns the XOR element to the processing sequence.
r2827.0 BO: XOR 3 - - - - - U16 3
Output of XOR 3 element. Displays exclusive-or logic of bits defined in P2826[0], P2826[1]. See r2811 for
the bit field description.
Dependency: See P2826
P2828 BI: NOT 1 - 0 U, T - - U32 /
Bin
3
P2828 defines input of NOT 1 element, output is r2829.
,QGH[
U

&$
AC


3
3
3>@
Dependency: P2801[9] assigns the NOT element to the processing sequence.
r2829.0 BO: NOT 1 - - - - - U16 3
Output of NOT 1 element. Displays not logic of bit defined in P2828. See r2811 for the bit field description.
Dependency: See P2828
P2830 BI: NOT 2 - 0 U, T - - U32 /
Bin
3
P2830 defines input of NOT 2 element, output is r2831.
Dependency: P2801[10] assigns the NOT element to the processing sequence.
r2831.0 BO: NOT 2 - - - - - U16 3
Output of NOT 2 element. Displays not logic of bit defined in P2830. See r2811 for the bit field description.
Dependency: See P2830
P2832 BI: NOT 3 - 0 U, T - - U32 /
Bin
3
P2832 defines input of NOT 3 element, output is r2833.
Dependency: P2801[11] assigns the NOT element to the processing sequence.
