Parameter list
7.2 Parameter list
SINAMICS V20 Inverter
Operating Instructions, 07/2012, A5E03728167
217
Parameter Function Range Factory
default
Can be
changed
Scaling Data
set
Data
type
Acc.
Level
r2833.0 BO: NOT 3 - - - - - U16 3
Output of NOT 3 element. Displays not logic of bit defined in P2832. See r2811 for the bit field description.
Dependency: See P2832

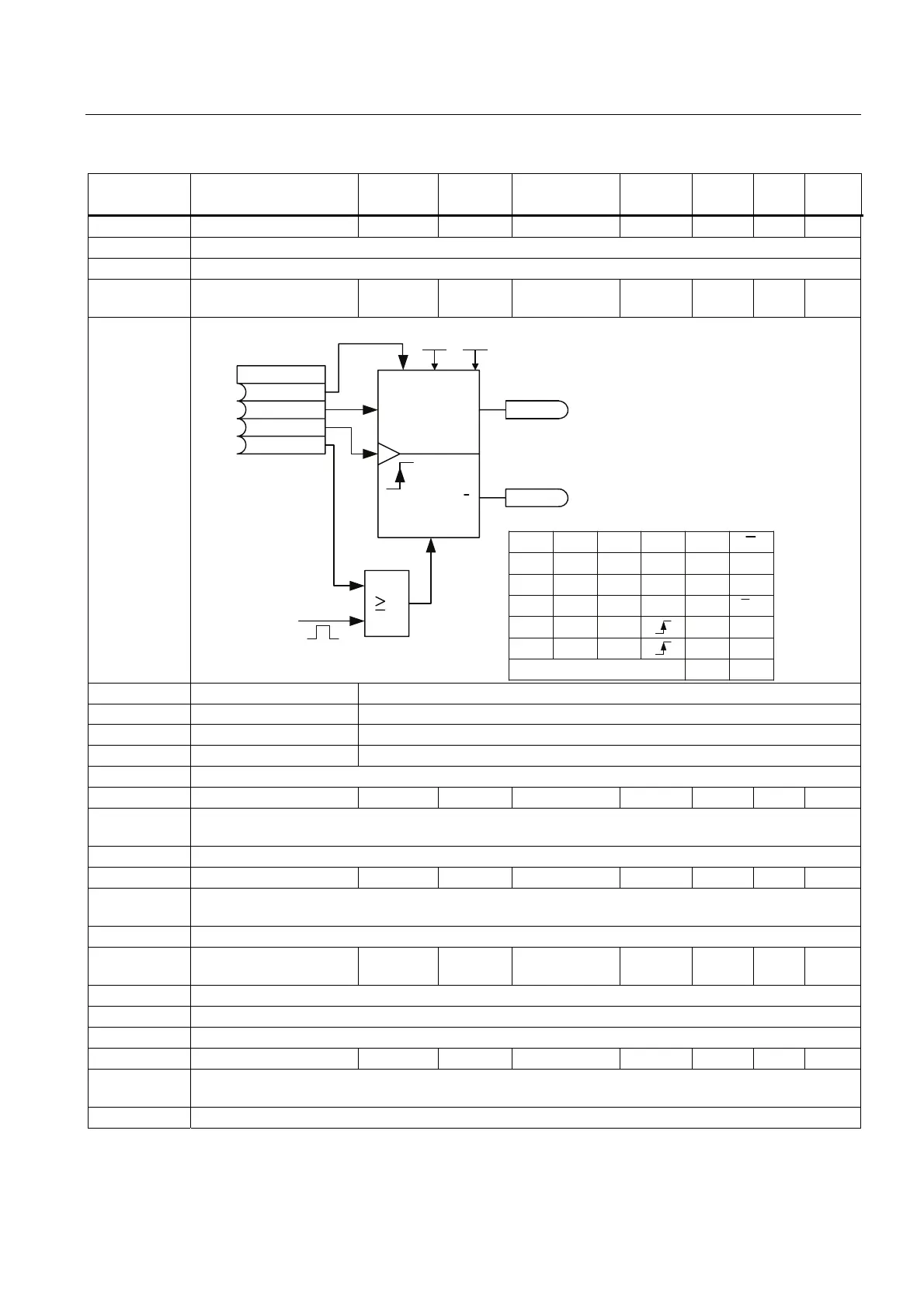

P2834[0...3] BI: D-FF 1 - 0 U, T - - U32 /
Bin
3
P2834[0], P2834[1], P2834[2], P2834[3] define inputs of D-FlipFlop 1, outputs are r2835, r2836.
'
U
U
4
4
[[
[[
[[4
Q
4
Q
,QGH[
6(74
5(6(74
32:(521
6725(
,QGH[
,QGH[
,QGH[
SET
RESET
STORE
32:(521
3
3 3>@
DQ
Q
Index: [0] Binector input: Set
[1] Binector input: D input
[2] Binector input: Store pulse
[3] Binector input: Reset
Dependency: P2801[12] assigns the D-FlipFlop to the processing sequence.
r2835.0 BO: Q D-FF 1 - - - - - U16 3
Displays output of D-FlipFlop 1, inputs are defined in P2834[0], P2834[1], P2834[2], P2834[3]. See r2811
for the bit field description.
Dependency: See P2834
r2836.0 BO: NOT-Q D-FF 1 - - - - - U16 3
Displays Not-output of D-FlipFlop 1, inputs are defined in P2834[0], P2834[1], P2834[2], P2834[3]. See
r2811 for the bit field description.
Dependency: See P2834
P2837[0...3] BI: D-FF 2 - 0 U, T - - U32 /
Bin
3
P2837[0], P2837[1], P2837[2], P2837[3] define inputs of D-FlipFlop 2, outputs are r2838, r2839.
Index: See P2834
Dependency: P2801[13] assigns the D-FlipFlop to the processing sequence.
r2838.0 BO: Q D-FF 2 - - - - - U16 3
Displays output of D-FlipFlop 2, inputs are defined in P2837[0], P2837[1], P2837[2], P2837[3]. See r2811
for the bit field description.
Dependency: See P2837
