Siemens SINAMICS V20 Series User Manual

Parameter list

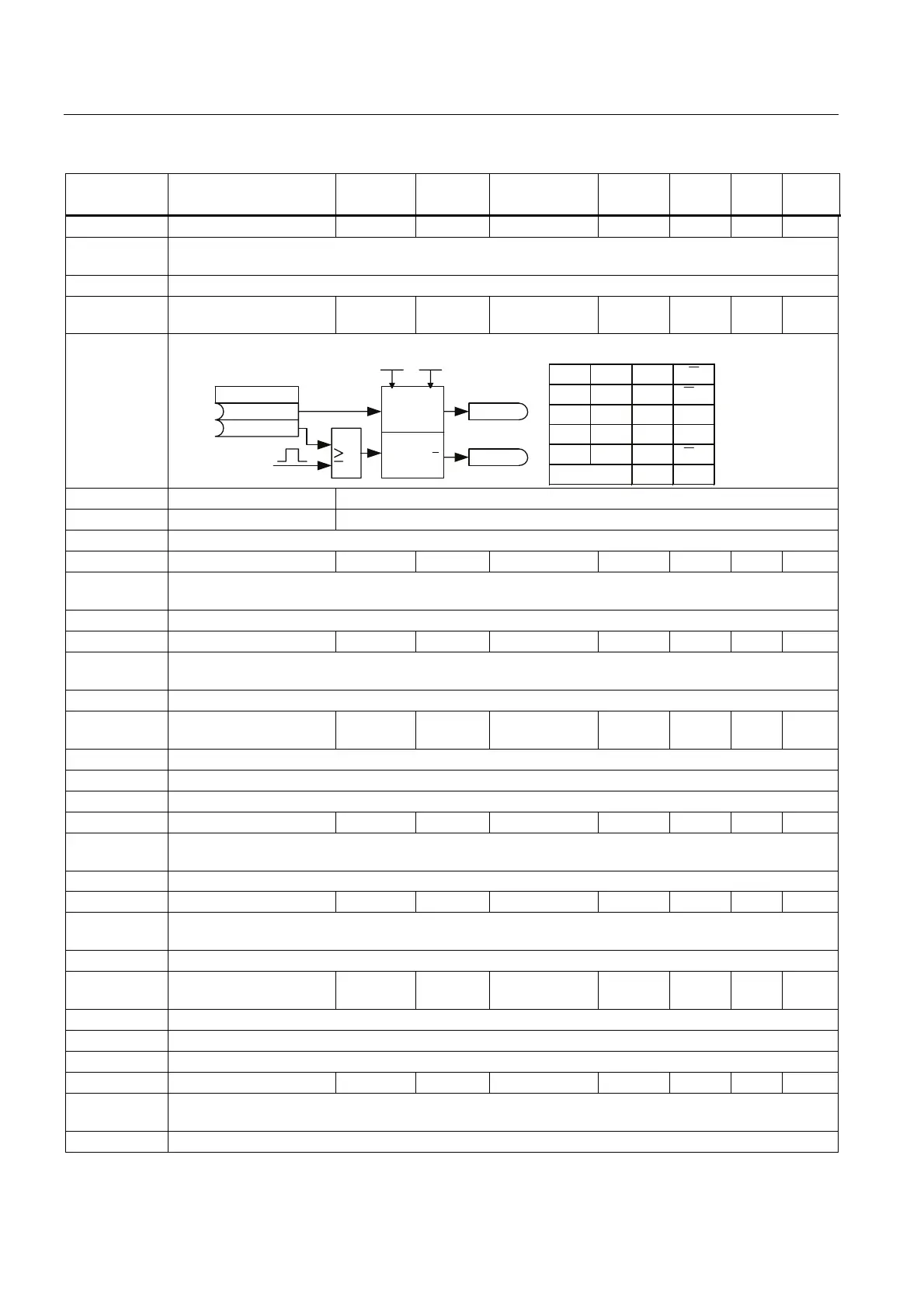

7.2 Parameter list
SINAMICS V20 Inverter
218 Operating Instructions, 07/2012, A5E03728167
Parameter Function Range Factory
default
Can be
changed
Scaling Data
set
Data
type
Acc.
Level
r2839.0 BO: NOT-Q D-FF 2 - - - - - U16 3
Displays Not-output of D-FlipFlop 2, inputs are defined in P2837[0], P2837[1], P2837[2], P2837[3]. See
r2811 for the bit field description.
Dependency: See P2837
P2840[0...1] BI: RS-FF 1 - 0 U, T - - U32 /
Bin
3
P2840[0], P2840[1] define inputs of RS-FlipFlop 1, outputs are r2841, r2842.
QQ
00Q
n-1
Q
n-1
0101
1010
11Q
n-1
Q
n-1
01
P2800 P2801[14]
(Q=1)
(Q=0)
Q
Q
P2840
1
r2841
r2842
,QGH[
32:(521
6(7
SET RESET
5(6(7
32:(521
,QGH[
Index: [0] Binector input: Set
[1] Binector input: Reset
Dependency: P2801[14] assigns the RS-FlipFlop to the processing sequence.
r2841.0 BO: Q RS-FF 1 - - - - - U16 3
Displays output of RS-FlipFlop 1, inputs are defined in P2840[0], P2840[1]. See r2811 for the bit field
description.
Dependency: See P2840
r2842.0 BO: NOT-Q RS-FF 1 - - - - - U16 3
Displays Not-output of RS-FlipFlop 1, inputs are defined in P2840[0], P2840[1]. See r2811 for the bit field
description.
Dependency: See P2840
P2843[0...1] BI: RS-FF 2 - 0 U, T - - U32 /
Bin
3
P2843[0], P2843[1] define inputs of RS-FlipFlop 2, outputs are r2844, r2845.
Index: See P2840
Dependency: P2801[15] assigns the RS-FlipFlop to the processing sequence.
r2844.0 BO: Q RS-FF 2 - - - - - U16 3
Displays output of RS-FlipFlop 2, inputs are defined in P2843[0], P2843[1]. See r2811 for the bit field
description.
Dependency: See P2843
r2845.0 BO: NOT-Q RS-FF 2 - - - - - U16 3
Displays Not-output of RS-FlipFlop 2, inputs are defined in P2843[0], P2843[1]. See r2811 for the bit field
description.
Dependency: See P2843
P2846[0...1] BI: RS-FF 3 - 0 U, T - - U32 /
Bin
3
P2846[0], P2846[1] define inputs of RS-FlipFlop 3, outputs are r2847, r2848.
Index: See P2840
Dependency: P2801[16] assigns the RS-FlipFlop to the processing sequence.
r2847.0 BO: Q RS-FF 3 - - - - - U16 3
Displays output of RS-FlipFlop 3, inputs are defined in P2846[0], P2846[1]. See r2811 for the bit field
description.
Dependency: See P2846
