Siemens SINUMERIK 802D sl Operator's Manual

Setup functions
3.2 Measure tools
SINUMERIK 802D sl pro - Milling
Control system overview for machine tools' sales people, 07/2008
13
3.2.2 Measure tools automatically in JOG
☑ Basic configuration

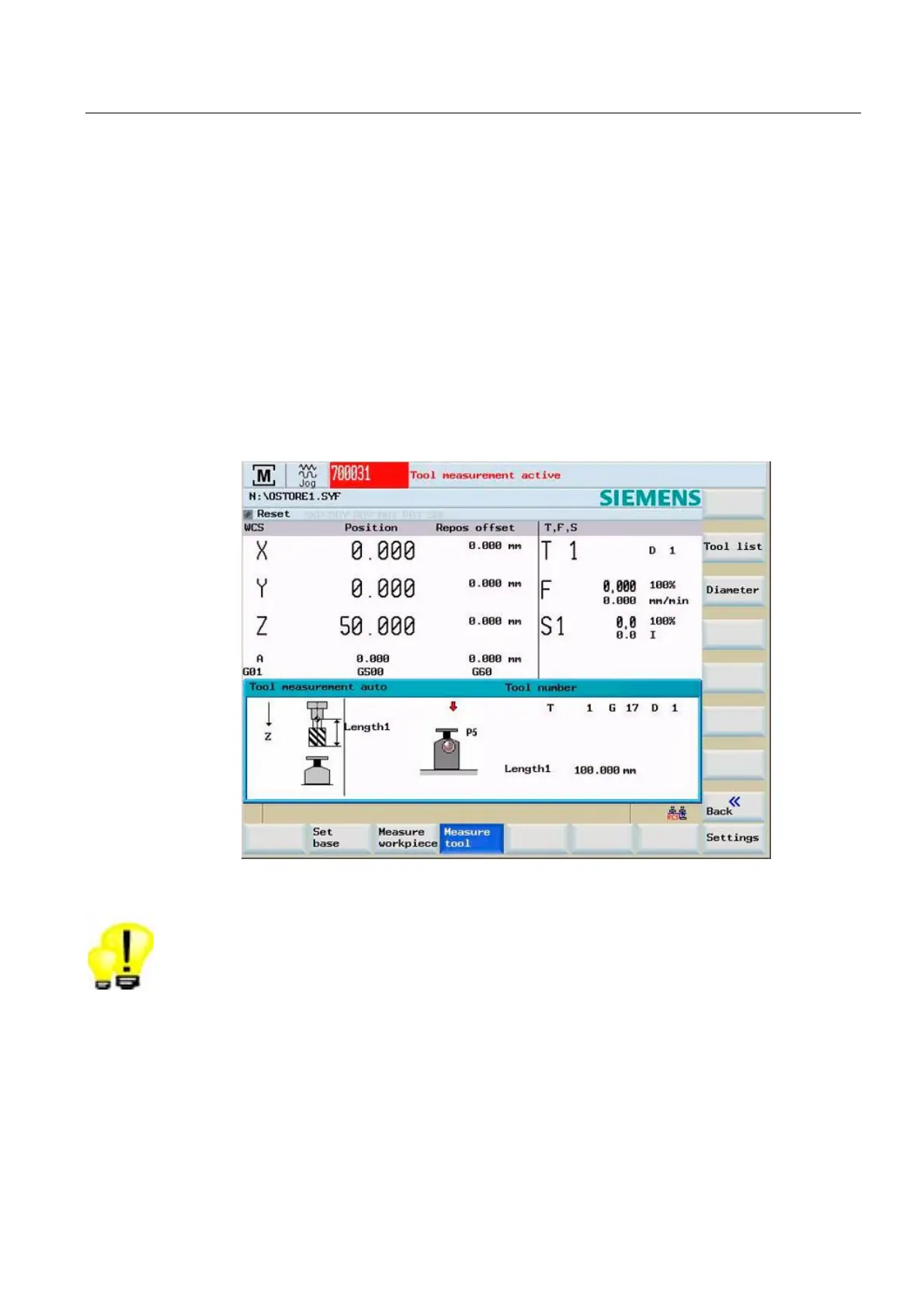

In JOG mode, you can automatically determine the tool compensation values for the length
and diameter in the machine. To this end, the SINUMERIK 802D sl pro offers graphical
support for automatic measuring and for calibrating the tool probe.
● To measure the tool diameter and length, simply move the tool near the probe.
● Click "Start". When the probe detects the tool, the controller automatically calculates the
tool geometry.
Highlight
● Speedy and precise tool measuring is standard
● Pre-installed graphic support for measuring with tool probe
