Siemens SINUMERIK 802D sl Operator's Manual

4th axis machining and mold and die
7.2 3-axis mold and die machining
SINUMERIK 802D sl pro - Milling
32 Control system overview for machine tools' sales people, 07/2008
7.1.3 4-axis interpolation
☑ Basic configuration
The SINUMERIK 802D sl pro supports 4th axis machining, e.g. for rotary tables and
swiveling tables.
Using the program command FGROUP, all 4 axes can be interpolated, e.g. FGROUP (X, Y,
Z, A).
Highlight
● 4-axis interpolation is standard

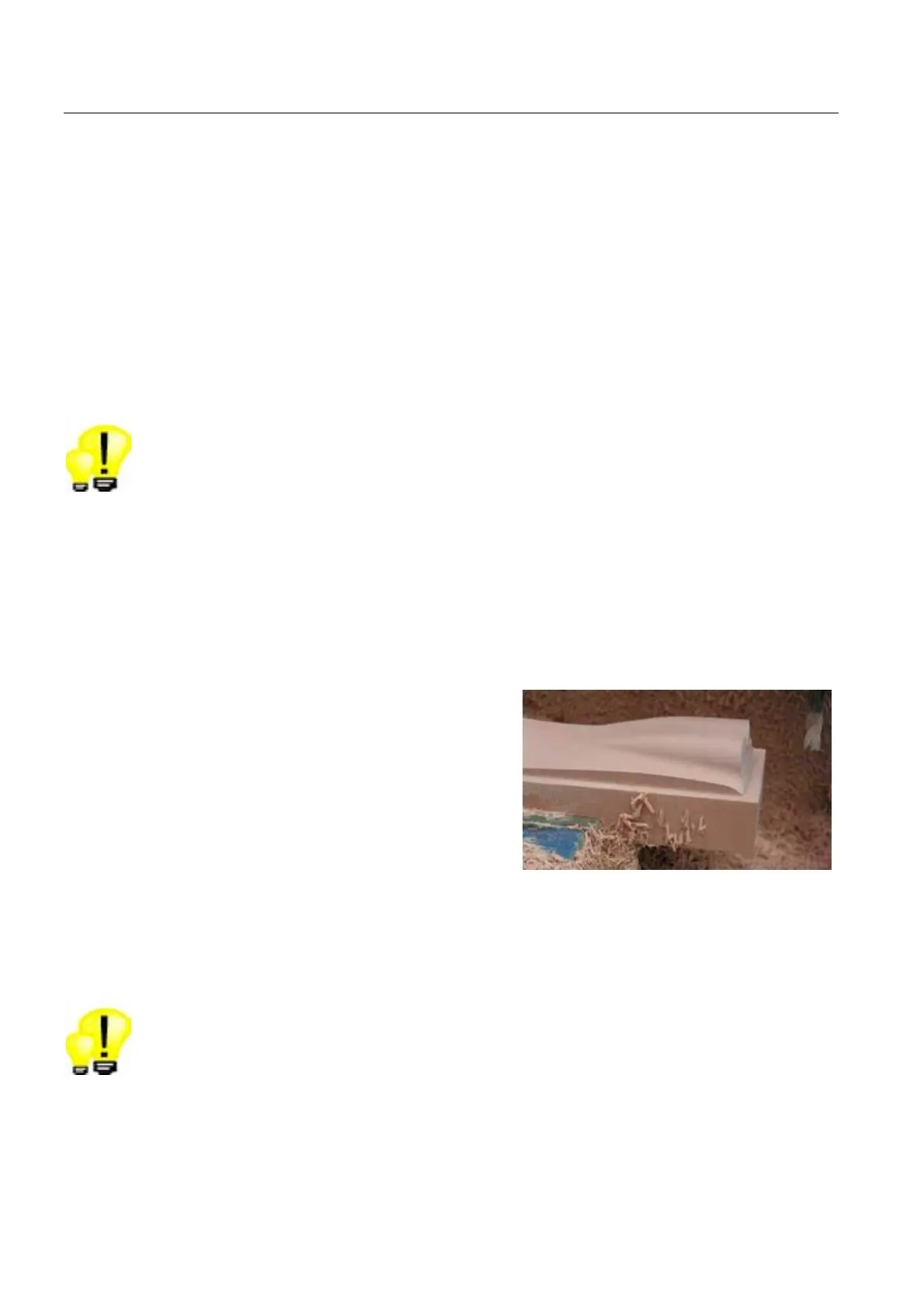

7.2 3-axis mold and die machining
7.2.1 Overview
The SINUMERIK 802D sl pro provides the best conditions for mold-making applications:
The advanced technology of the
SINUMERIK 840D is also available in the
SINUMERIK 802D sl pro, e.g.:
• Jerk limitations separated by rapid
traverse / feed
• Following error compensation
(feedforward control)
• 100 blocks Look Ahead
• Online compressor
• Large mold-making programs can be
transferred and directly executed via
CompactFlash card, USB stick or
Ethernet.
Highlight
● Machining of mold-making workpieces is already standard
