Siemens SINUMERIK 802D sl Operator's Manual

SINUMERIK 802D sl pro - Milling
Control system overview for machine tools' sales people, 07/2008
29
Simulation
6
☑ Basic configuration

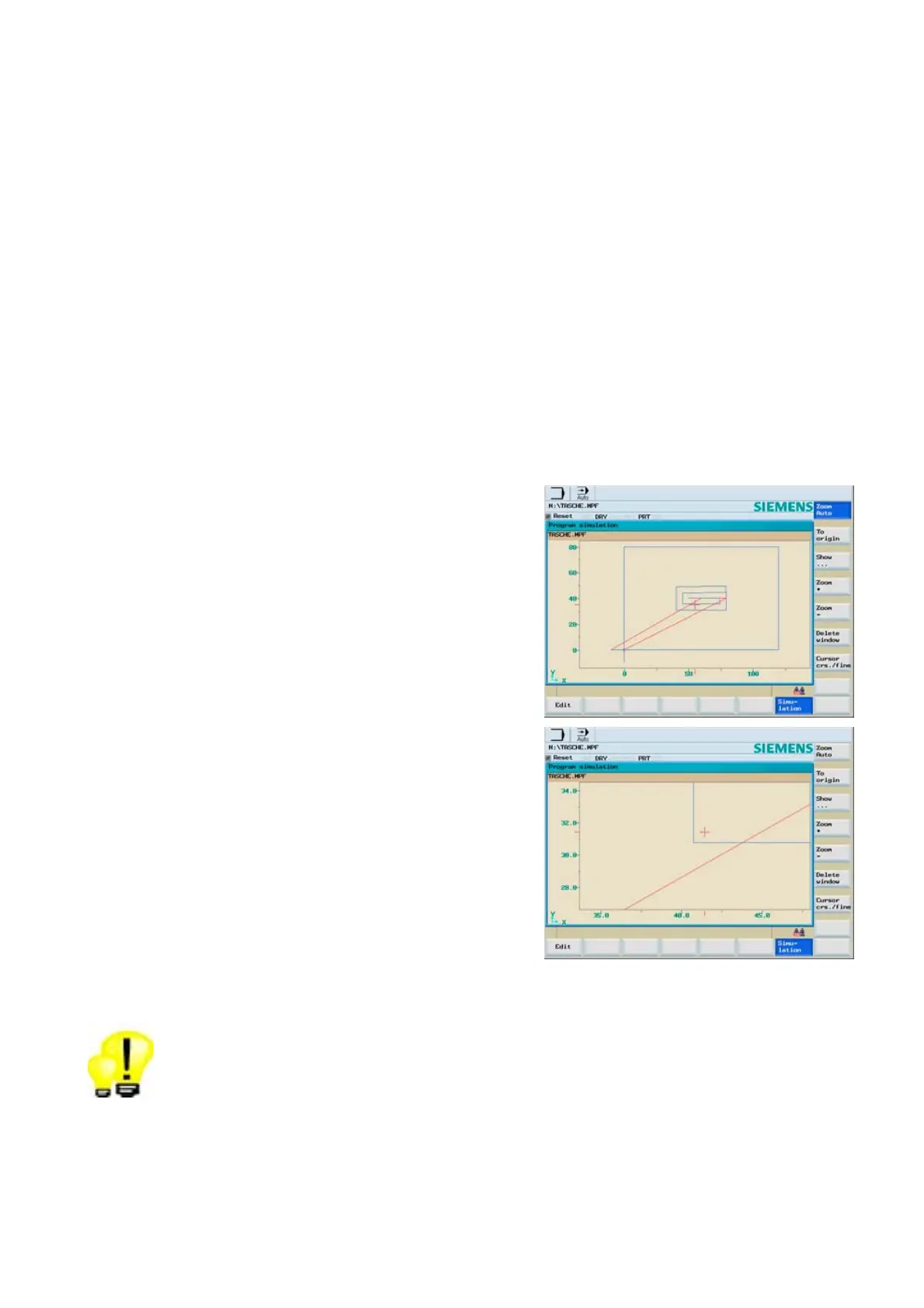

The SINUMERIK 802D sl pro offers you high process safety through integrated simulation,
since it enables you to verify part programs before they are executed. By using broken-line
graphics, you can trace the programmed tool path.
• Clear overview through use of different
colors
Rapid feedrate = red
Cutting feedrate = blue
• Quickly display simulation result by
activating dry run feedrate (used instead
of the programmed cutting feedrate)
• Possibility of zooming into details at any
time during and after simulation
• Display the entire workpiece using the
Zoom Auto softkey
Highlight
● More process safety through effective simulation
