Maintenance and diagnostics
9.2 Diagnostics
SINUMERIK 802D sl pro - Milling
42 Control system overview for machine tools' sales people, 07/2008
9.2 Diagnostics
☑ Basic configuration
The SINUMERIK 802D sl offers diagnostic functions which are easy to use:

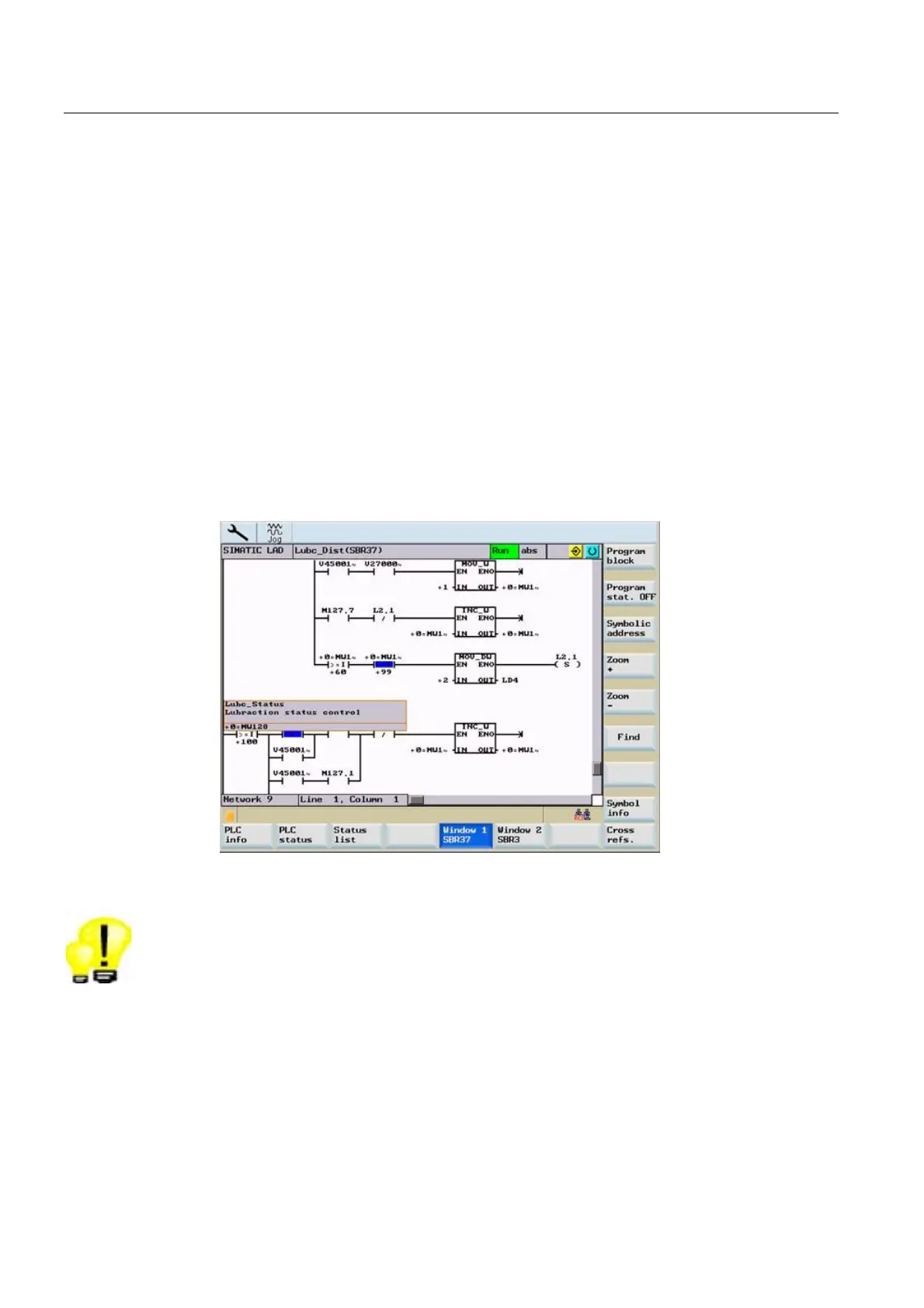

● Diagnostic functions, such as ladder display, are available for finding causes of
malfunctions or a PLC program error.
● You can switch between two windows in ladder display (e.g. for cross-references).
● You are provided with the same display as on a PC, with zoom, find, symbol info, and
cross-reference functions.
● For reasons of safety, it is not possible to edit the PLC program at the machine.
Highlight
● Highest machine availability thanks to modern diagnostic and troubleshooting tools
