5.6 Free Contour Programming / Contour Calculator
SINUMERIK 802D sl pro - Milling
Control system overview for machine tools' sales people, 07/2008
27

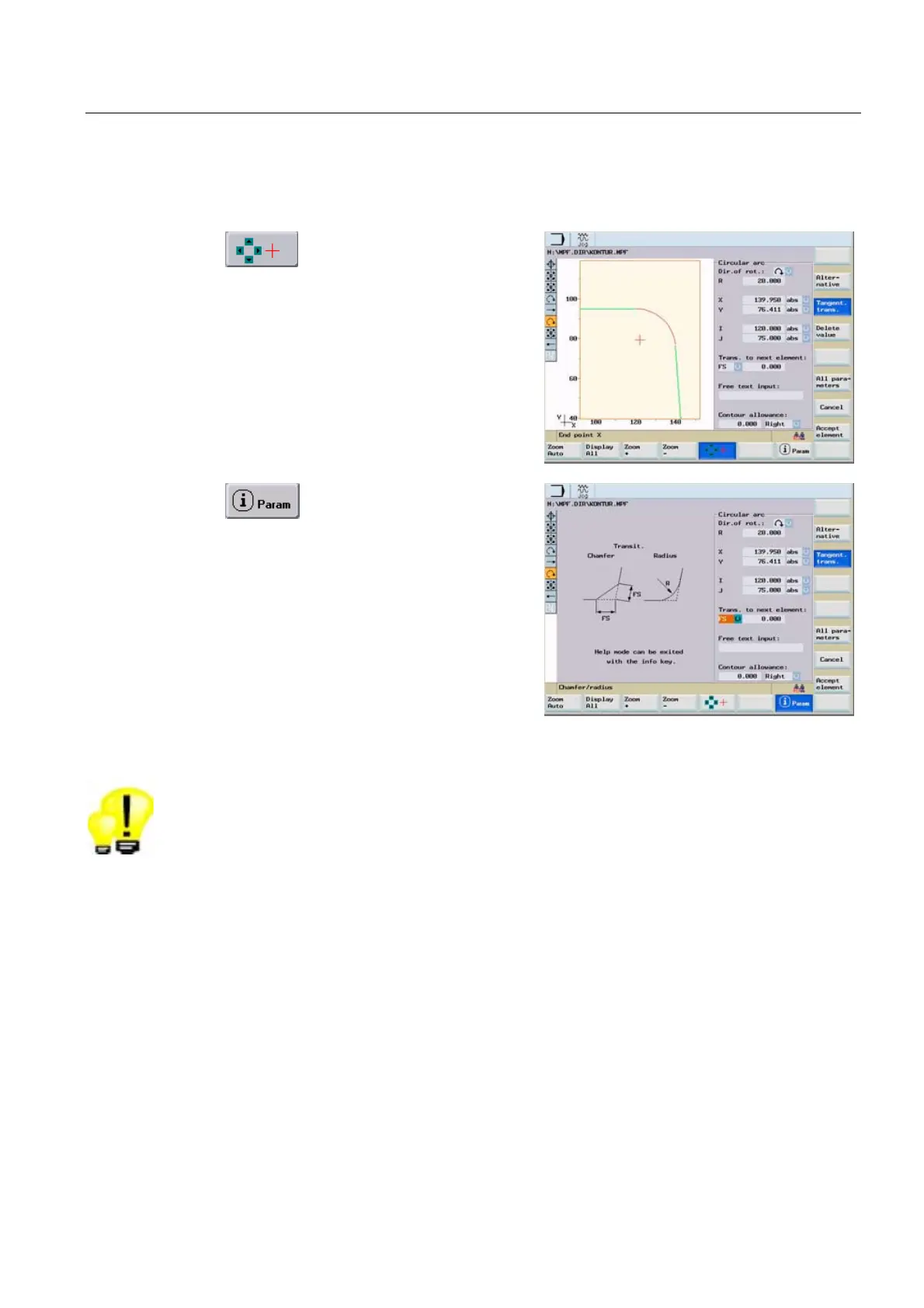

The following functions make work with the contour calculator easier:
When you select this softkey, you can use
the cursor keys to determine a picture detail
that is to be enlarged.
After selection of this softkey, graphical help
screens will be displayed in addition to the
relevant parameters.
Highlight
● Fast and safe - from the drawing to the finished workpiece
● Program recompilation for further editing in the contour calculator
● Easy input of the workpiece geometry: "Drawing dot for dot" like in ShopMill
