3.2 User interface
3.2.1 Screen layout

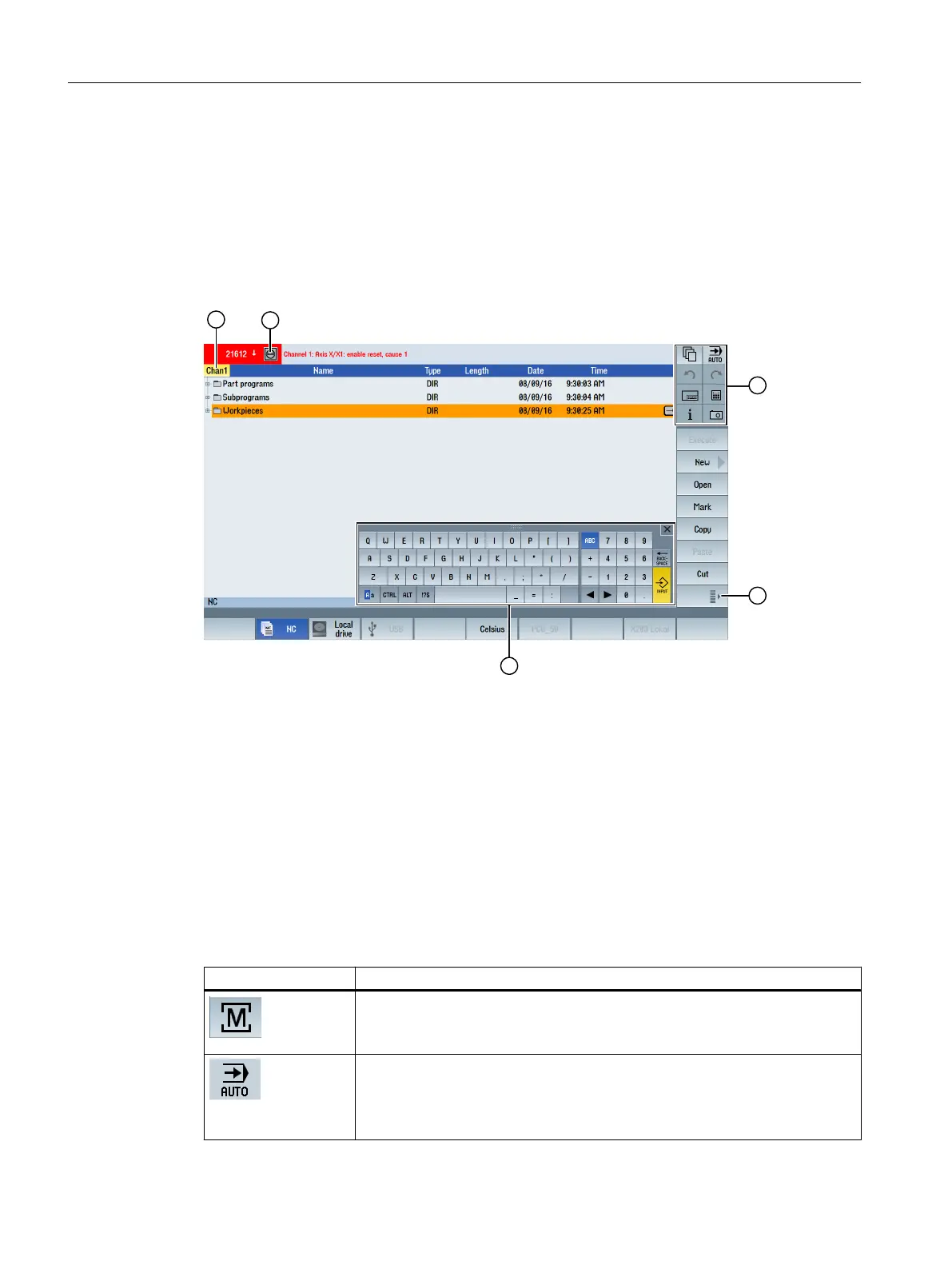

Touch and gesture operator controls for SINUMERIK Operate with the "SINUMERIK Operate
Generation 2" user interface.





① Changing the channel
② Cancel alarms
③ Function key block
④ Display next vertical softkey bar
⑤ Virtual keyboard
3.2.2 Operator controls on the "SINUMERIK Operate Generation 2" user interface
3.2.2.1 Function key block
Operator control Function
Switch operating area
Tap the current operating area, and select the desired operating area from the
operating area bar.
Switch operating mode
The operating mode is only displayed.
To switch the operating mode, tap the operating area and select the operating
area from the vertical softkey bar.
Multitouch operation with SINUMERIK Operate
3.2 User interface
Smart machine tool operation
12 System Manual, 12/2017, 6FC5397-7FP40-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
