Siemens SINUMERIK 840D sl System Manual

Creation of your own tools (controls)
You have the option of developing your own controls, which then allow you to further
individualize your operating concept.
5.4 Examples of the design for OEM-specific operating concepts.

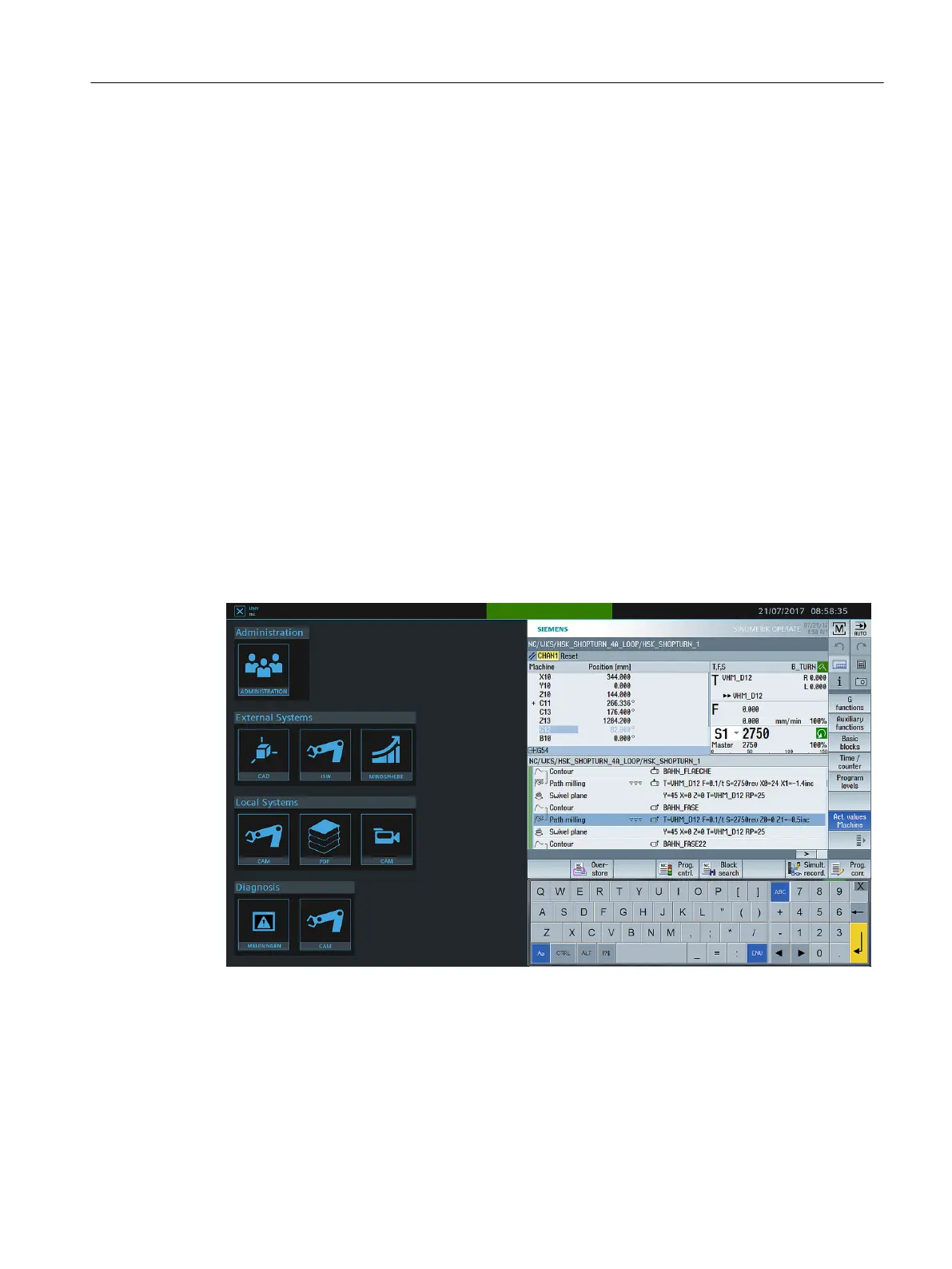

5.4.1 Example 1 - Integration of SINUMERIK Operate into a WinCC interface with
navigation keys
This example is characterized by role-specific and thematically structured navigation:
● Administrative tasks
● Simple integration and representation of information about external contents
(documentation, camera, web contents)
● Service and maintenance
Operating concept with role-specific navigation
Machine OEM-specific HMI using SINUMERIK Integrate Create MyHMI / WinCC
5.4 Examples of the design for OEM-specific operating concepts.
Smart machine tool operation
System Manual, 12/2017, 6FC5397-7FP40-0BA0 37

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
