Siemens SINUMERIK 840D sl System Manual

5.4.2 Example 2 - Integration of SINUMERIK Operate into a WinCC interface with PDF
Viewer

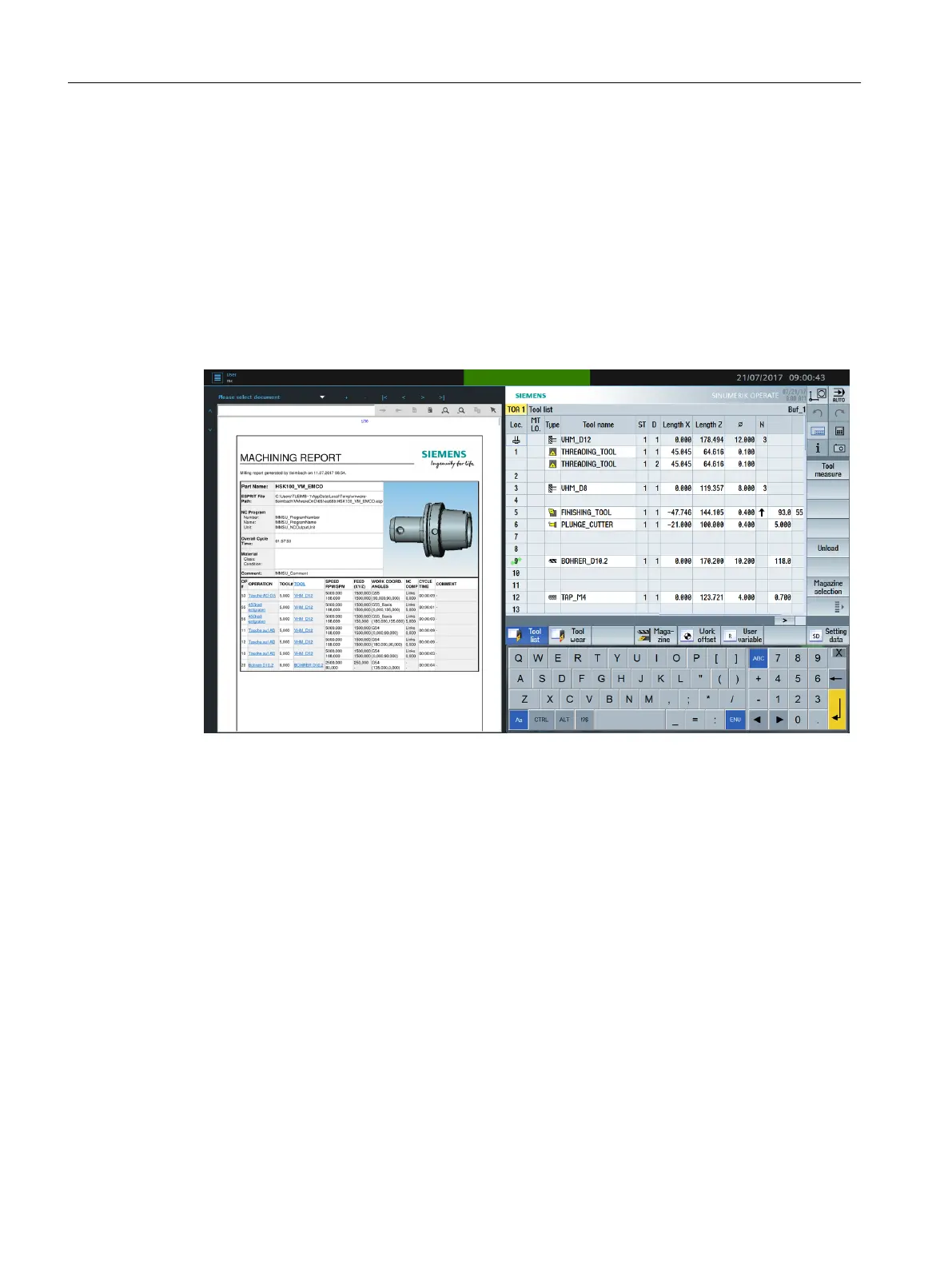

This example demonstrates electronic production by directly accessing machine
documentation.
● Representation of the setup plan parallel to the tool loading
● Copy & paste from the PDF directly into the tool list
Parallel display of information directly on the machine
Machine OEM-specific HMI using SINUMERIK Integrate Create MyHMI / WinCC
5.4 Examples of the design for OEM-specific operating concepts.
Smart machine tool operation
38 System Manual, 12/2017, 6FC5397-7FP40-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
