4.4.4 "Service life" widget

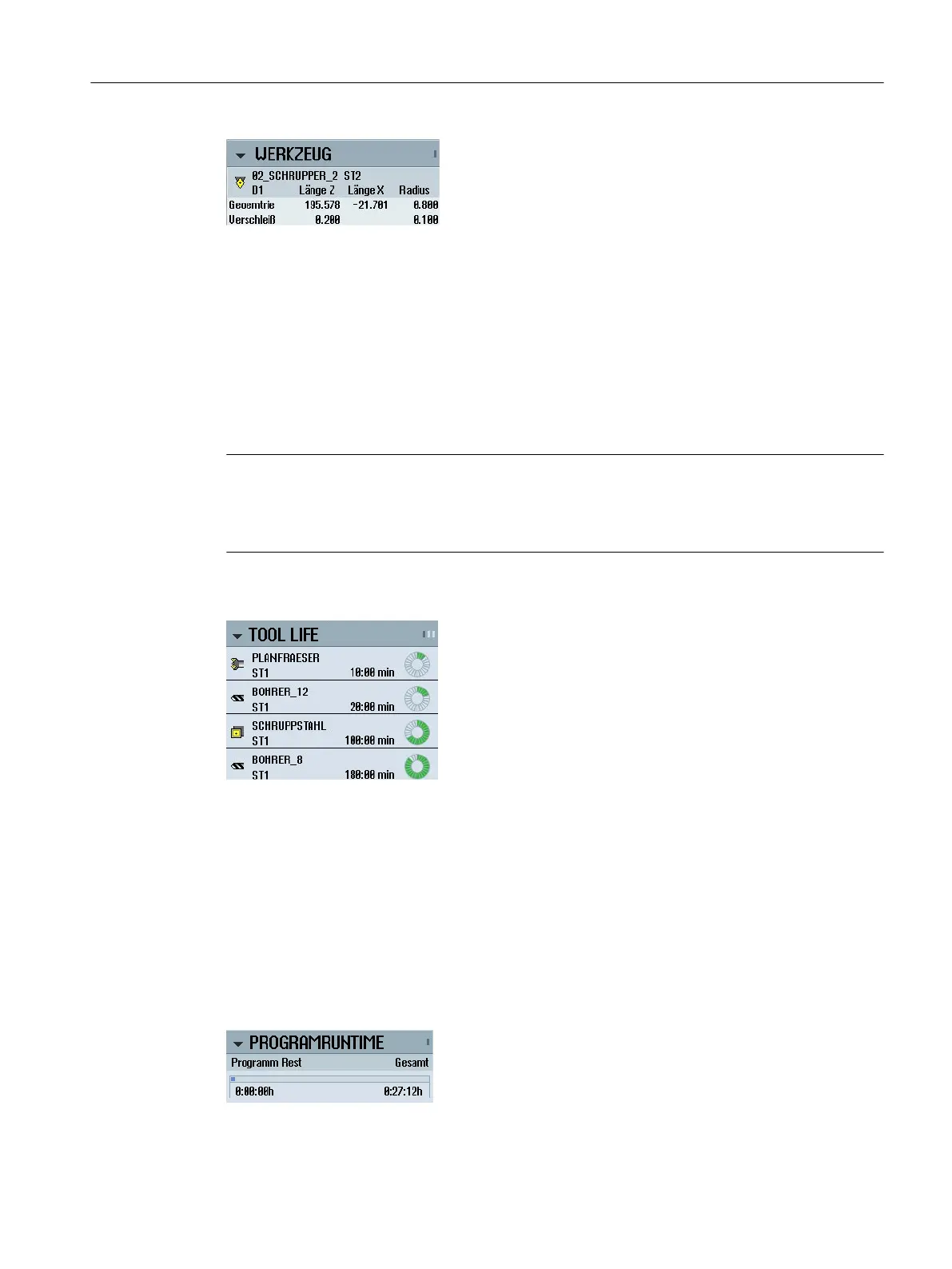

The widget displays the tool monitoring in relation to the following values:
● Operating time of tool (standard time monitoring)
● Finished workpieces (quantity monitoring)
● Tool wear (wear monitoring)
Note
Multiple cutting edges
If a tool has multiple cutting edges, the values of the edge with the lowest residual service life,
quantity and wear is displayed.
It possible to alternate between views by scrolling horizontally.
4.4.5 "Program runtime" widget
The widget contains the following data:
● Total runtime of the program
● Time remaining to end of program
This data is estimated for the first program run.
Additionally, progress of the program is visualized in a bar chart as a percentage.
SINUMERIK Operate expansion using a sidescreen
4.4 Standard widgets
Smart machine tool operation
System Manual, 12/2017, 6FC5397-7FP40-0BA0 23
