Siemens SINUMERIK 840D sl System Manual

Operator control Function
Hides the sidescreen.
Shows the sidescreen.
4.3 Operation in the sidescreen
Open sidescreen
● Tap the arrow on the navigation bar to show the sidescreen.
The standard widgets are displayed in minimized form as the header line.



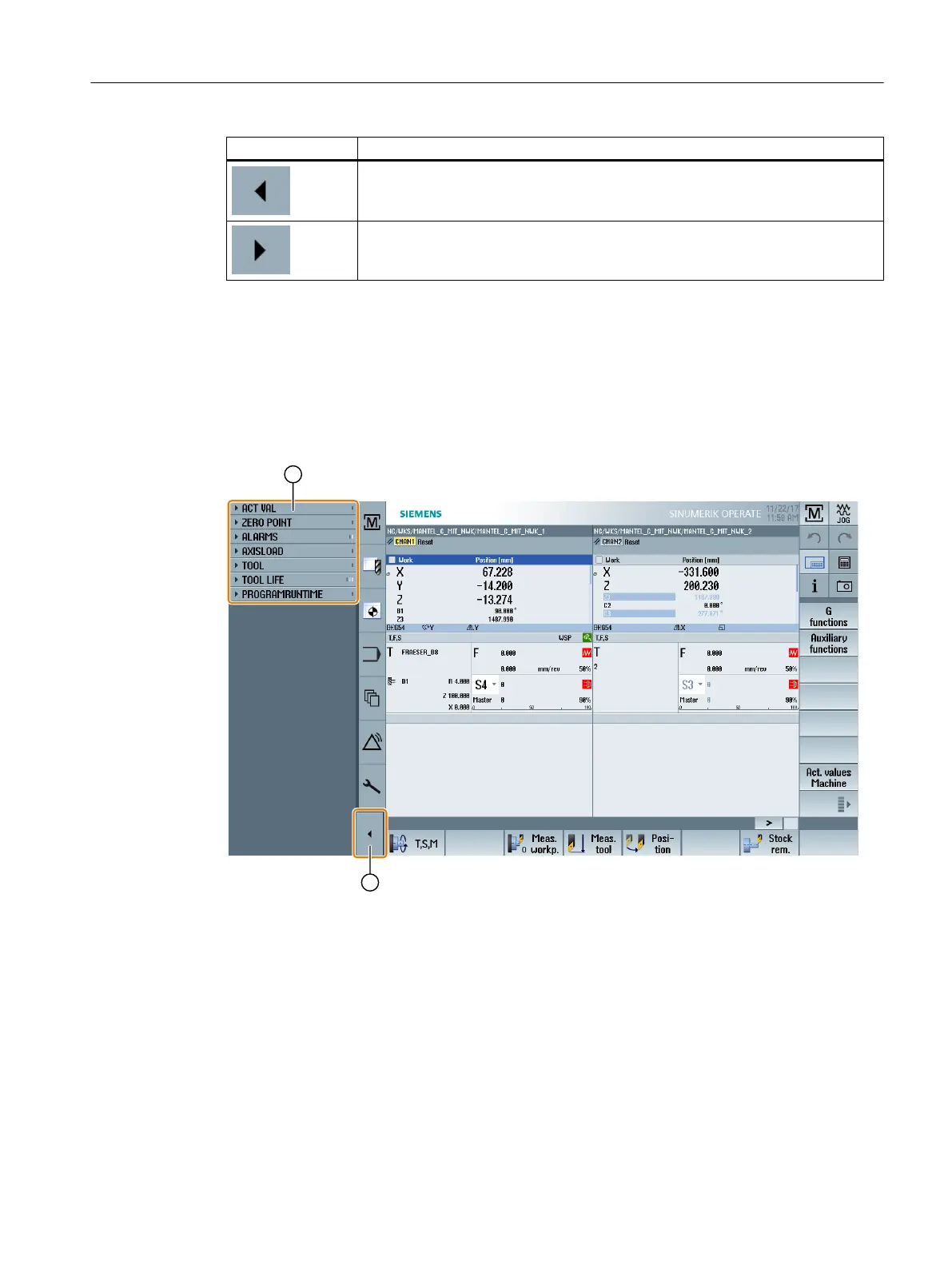

① Widget header lines
② Arrow key for showing/hiding the sidescreen
Navigating in sidescreen
● To scroll through the list of widgets, swipe vertically with 1 finger.
- OR -
● To return to the end or to the beginning of the list of widgets, swipe vertically with 3 fingers.
Open widgets
● To open a widget, tap the header line of the widget.
SINUMERIK Operate expansion using a sidescreen
4.3 Operation in the sidescreen
Smart machine tool operation
System Manual, 12/2017, 6FC5397-7FP40-0BA0 21

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
