Siemens SINUMERIK 840D sl System Manual

This navigation bar can be used to switch directly to the desired operating area, and to show
and hide the sidescreen.

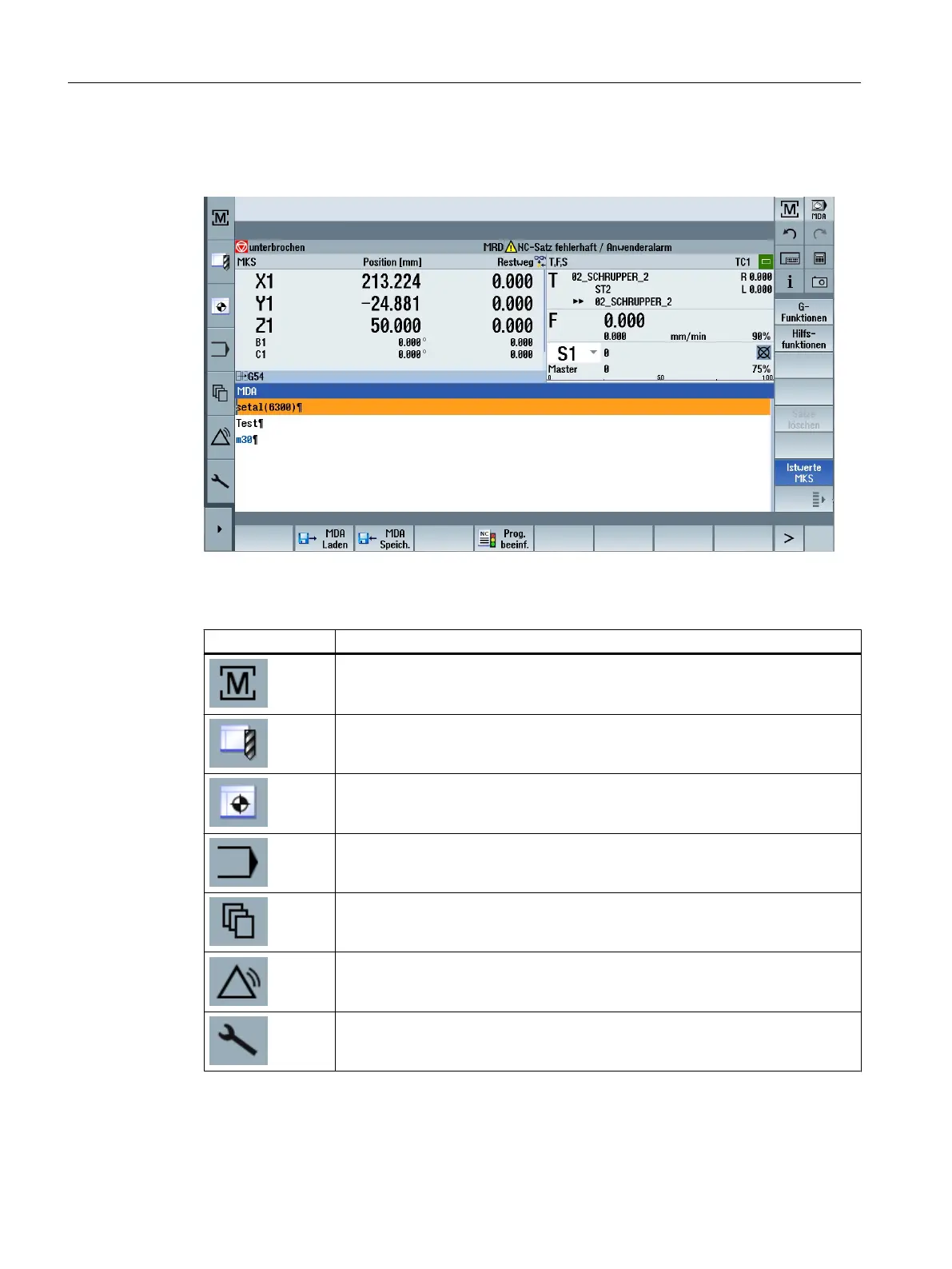

Navigation bar
Operator control Function
Opens the "Machinery" operating area.
Opens the tool list in the "Parameter" operating area.
Opens the "Work offset" window in the "Parameter" operating area.
Opens the "Program" operating area.
Opens the "Program manager" operating area.
Opens the "Diagnostics" operating area.
Opens the "Commissioning" operating area.
SINUMERIK Operate expansion using a sidescreen
4.2 Sidescreen with standard windows
Smart machine tool operation
20 System Manual, 12/2017, 6FC5397-7FP40-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
