Siemens siprotec 7SD5

A.3 Connection Examples
605
7SD5 Manual
C53000-G1176-C169-1

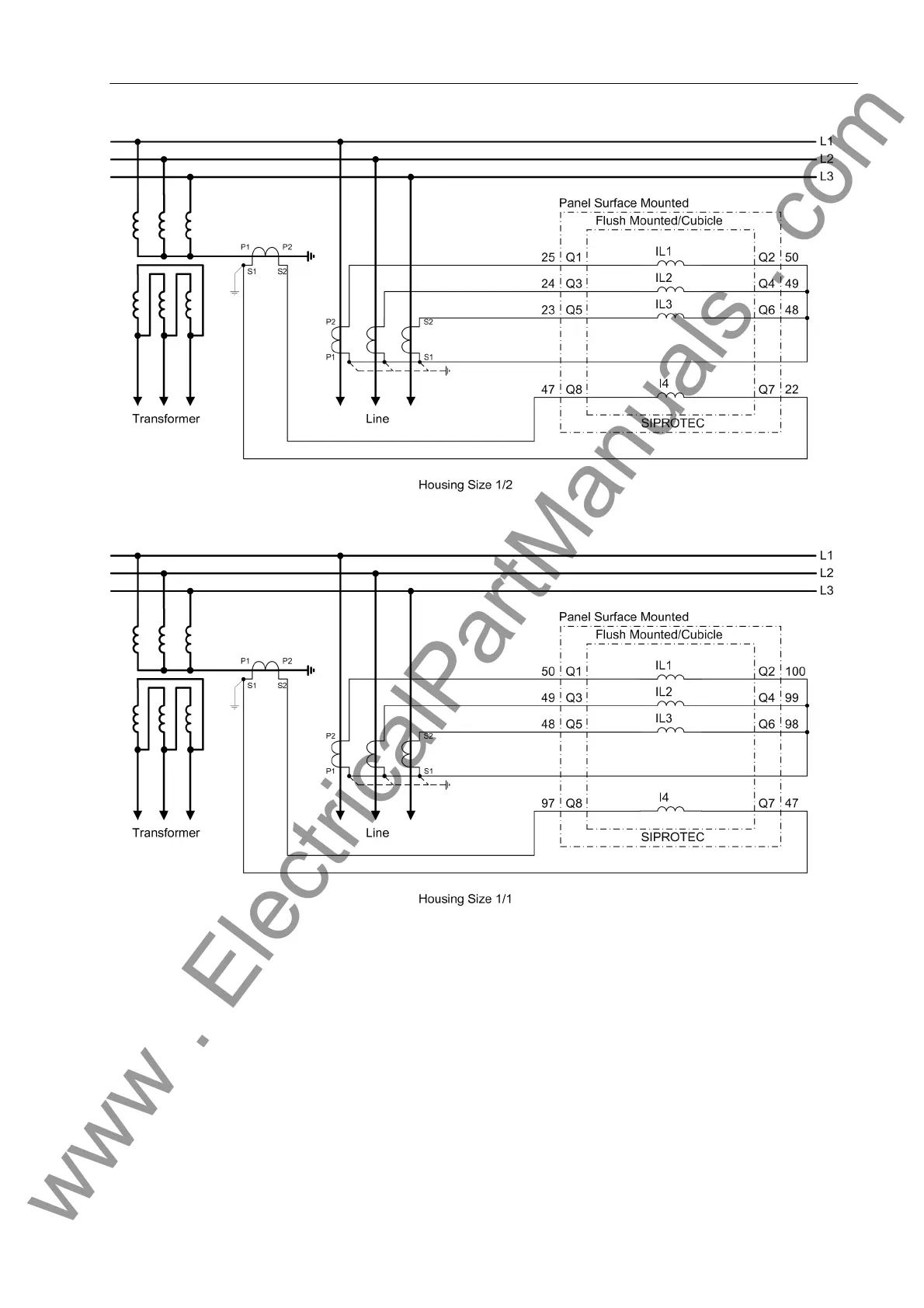

Figure A-16 Current connections to three current transformers and earth current from the star-point current of an
earthed power transformer (for directional earth fault protection)
