A Appendix
604
7SD5 Manual
C53000-G1176-C169-1

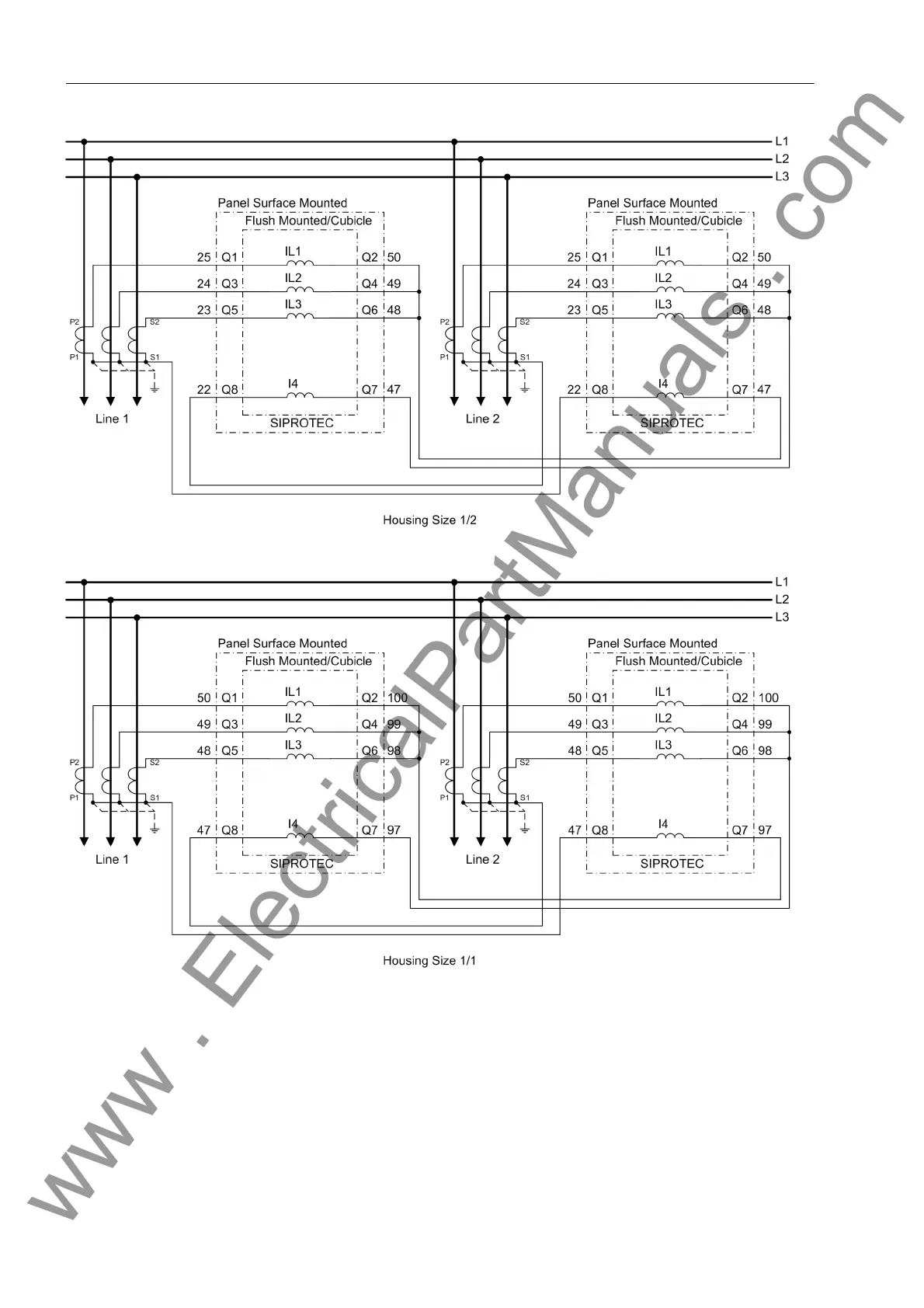

Figure A-15 Current connections to three current transformers and earth current from the star-point connection of a par-
allel line (for parallel line compensation)
