3 Mounting and Commissioning
240
7UM61 Manual
C53000-G1176-C127-3

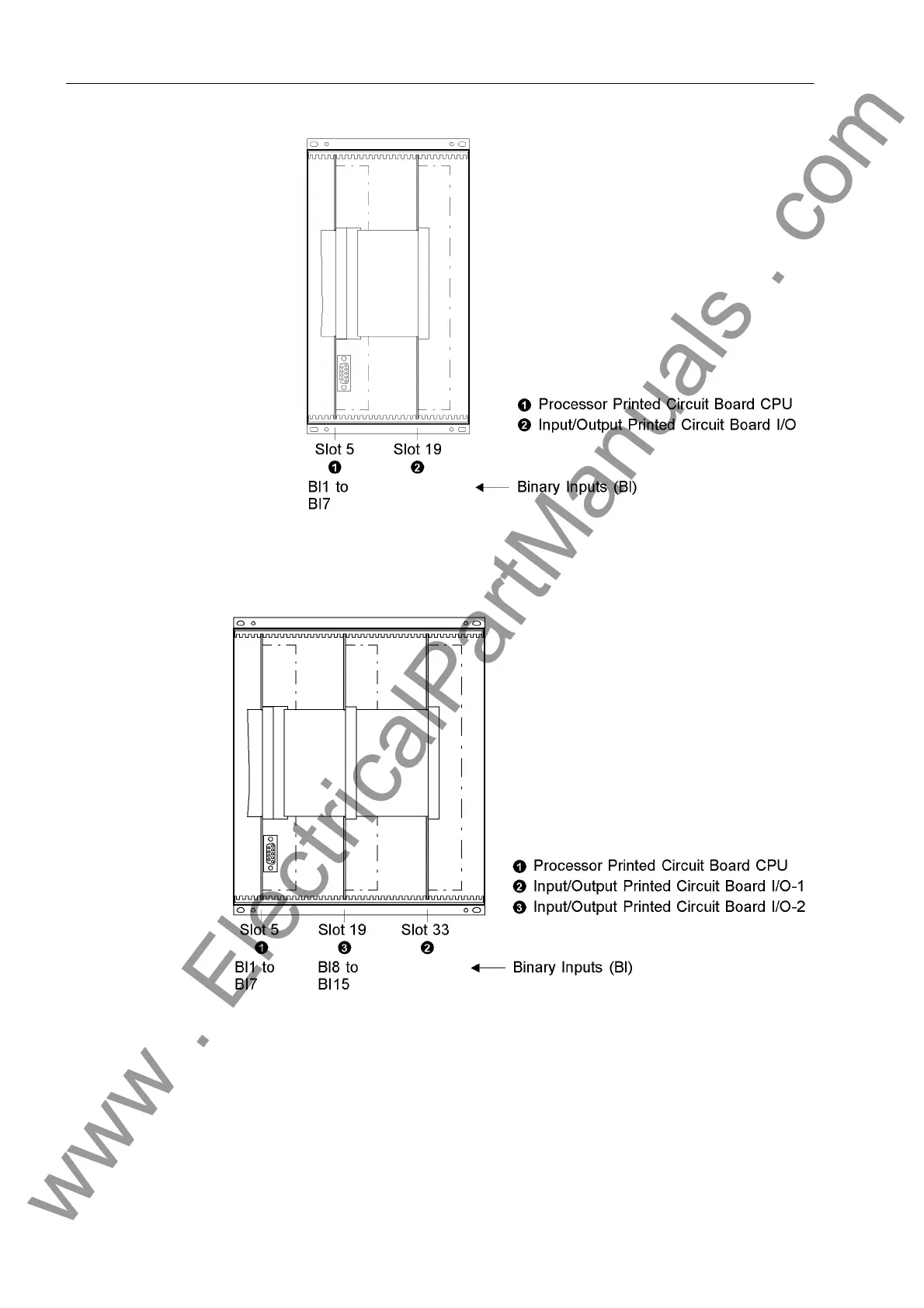

Figure 3-1 7UM611: Front view with housing size 1/3 after removal of the front cover (sim-
plified and scaled down).
Figure 3-2 7UM612: Front view with housing size 1/2 after removal of the front cover (sim-
plified and scaled down)
