3 Mounting and Commissioning
354
7UT613/63x Manual
C53000-G1176-C160-2

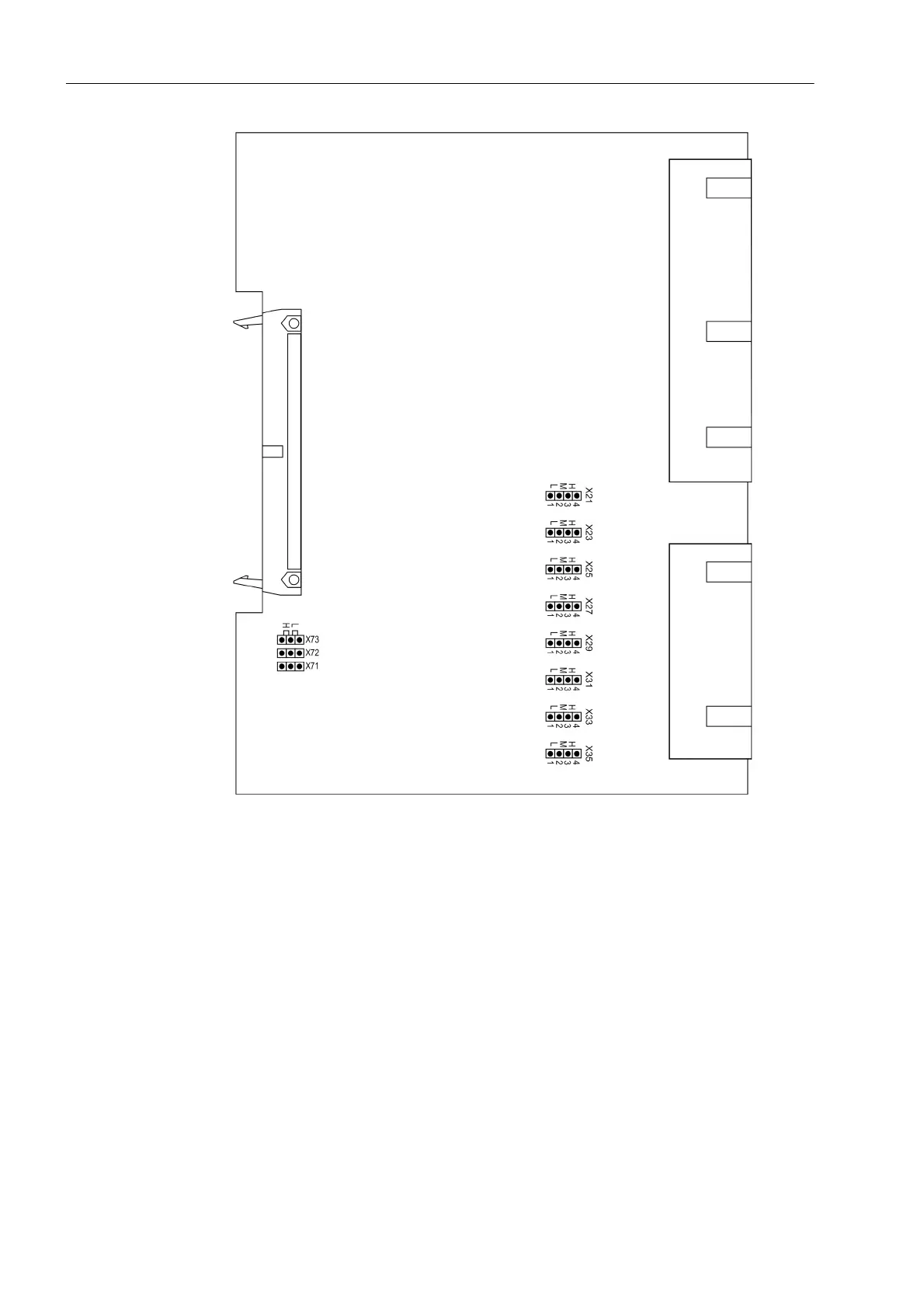

Figure 3-7 Input/output board C-I/O-10 release 7UT613/63x.../EE or higher, with represen-
tation of jumper settings required for checking configuration settings
Some of the output contacts can be changed from NO (normally open) operation to
NC (normally closed) operation (refer also to the Appendix, Section A.2).
For 7UT633 versions this applies for the binary outputs BO9 and BO17 (Figure
3-4, slot 33 left side and slot 19 left side).
For 7UT635 this applies for the binary outputs BO1, BO 9 and BO17 (Figure 3-4, slot
5 right side, slot 33 left side and slot 19 left side).
