2.8 Earth Fault Protection in Earthed Systems (optional)
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
223
Figure 2-107 shows the logic diagram. The tripping time depends on the level of the zero-sequence voltage U
0
.
For meshed earthed systems the zero-sequence voltage increases towards the earth fault location. The
inverse characteristic results in the shortest command time for the relay closest to the fault. The other relays
then reset.

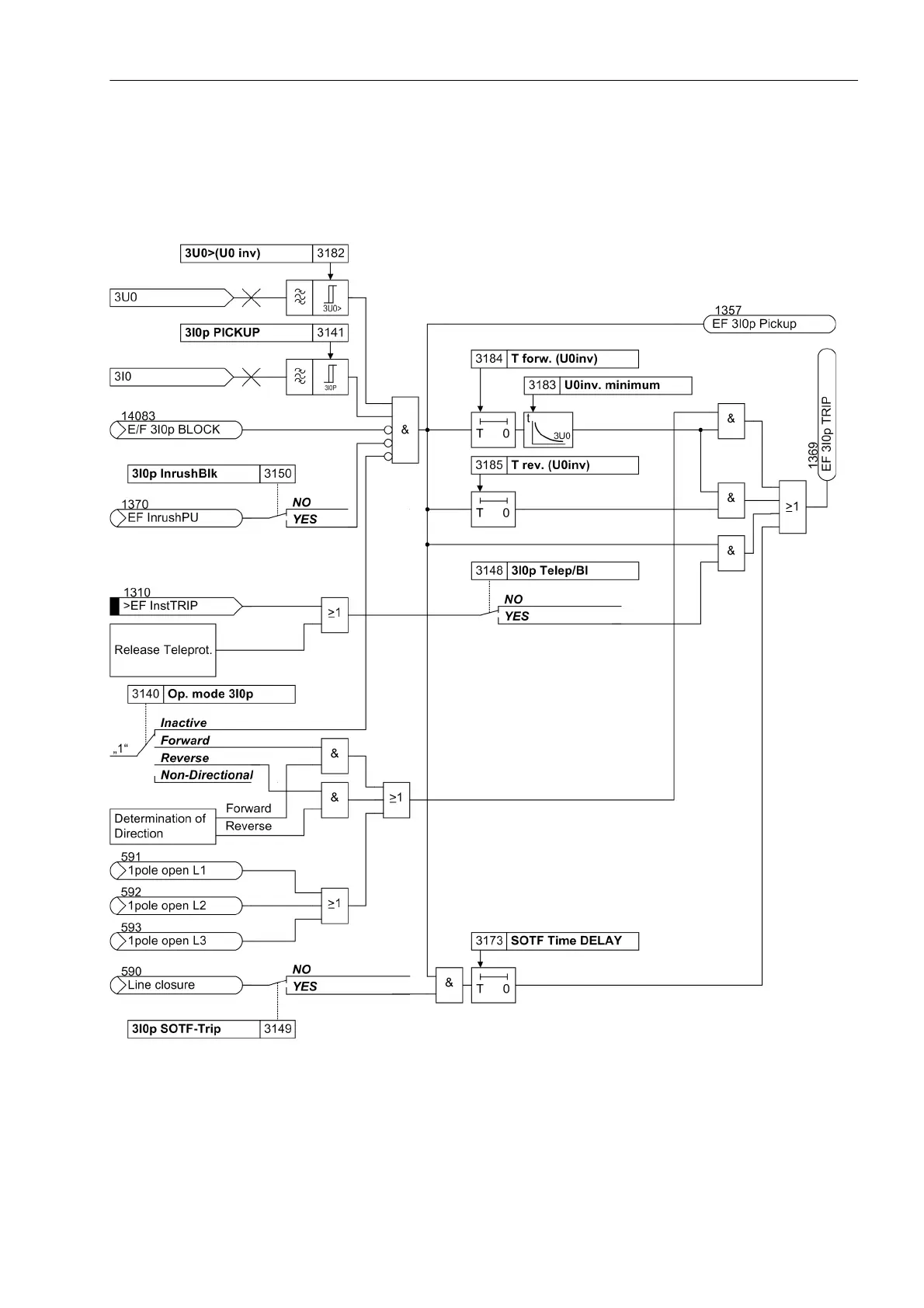

Figure 2-107 Directional zero-sequence voltage time protection with non-directional backup stage
