2.26 Additional Functions
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
465

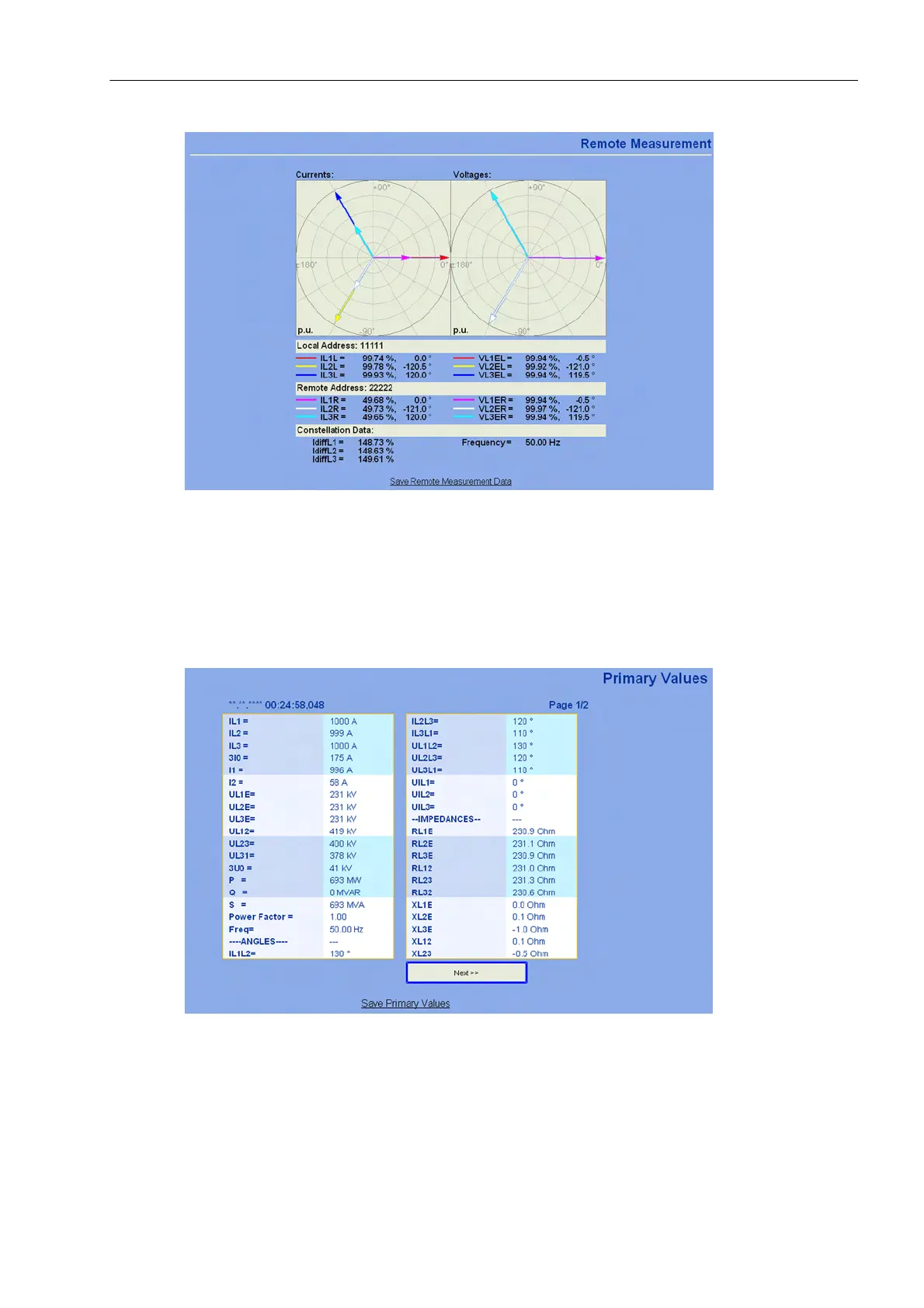

Figure 2-231 WEB-Monitor – Example of voltages and currents
Furthermore, the browser enables a comprehensive display of the most important measuring data and of the
distance protection data required for the directional check. The measured values list can be selected from the
navigation toolbar separately for the local device and remote devices. In each case a list with the desired infor-
mation is displayed (see Figure 2-231 and 2-233).
Figure 2-232 Local measured values in the WEB-Monitor — Examples for measured values
