Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
505

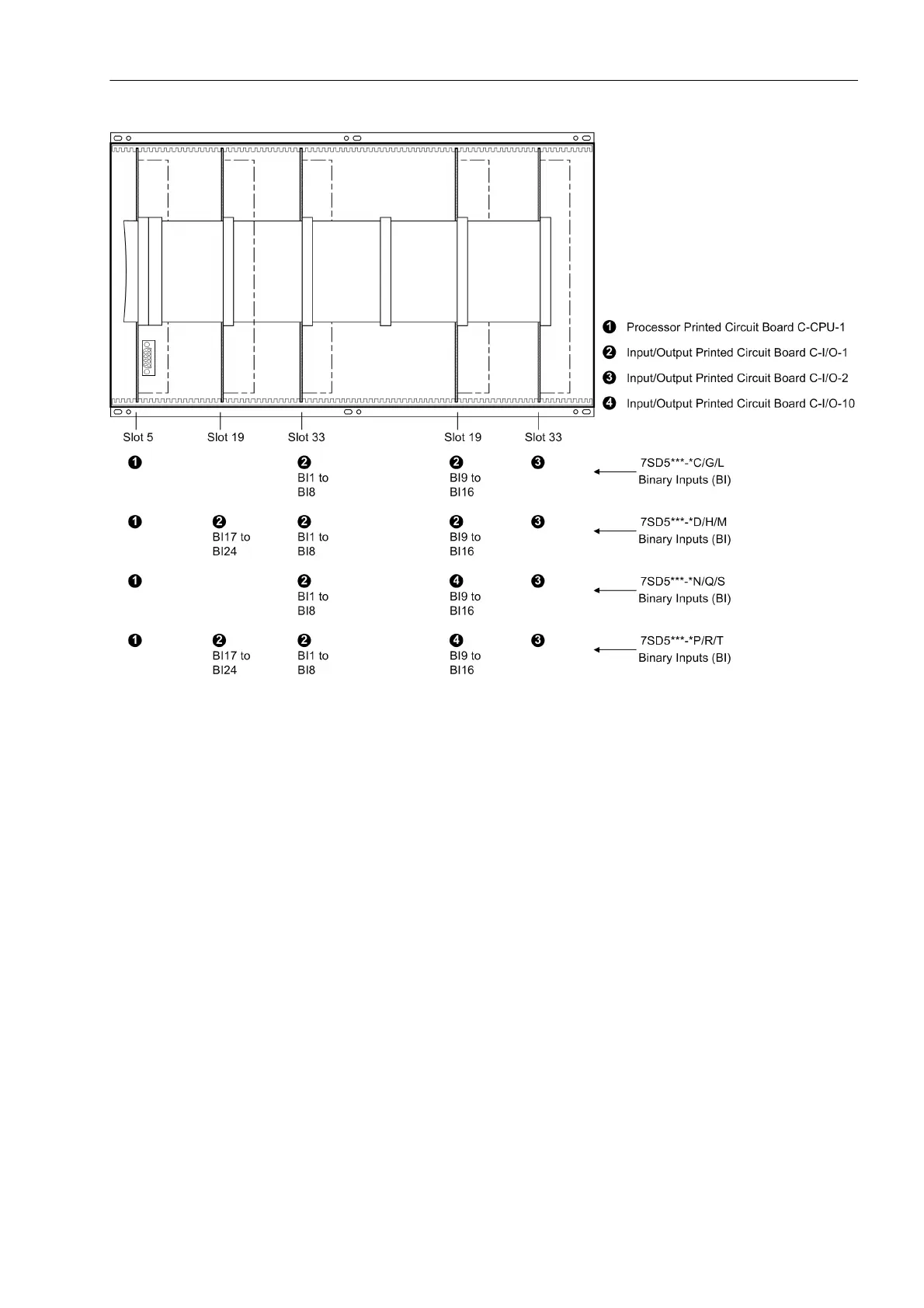

Figure 3-4 Front view with housing size
1
/
1
after removal of the front cover (simplified and scaled down)
