Mounting and Commissioning
3.3 Commissioning
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
544

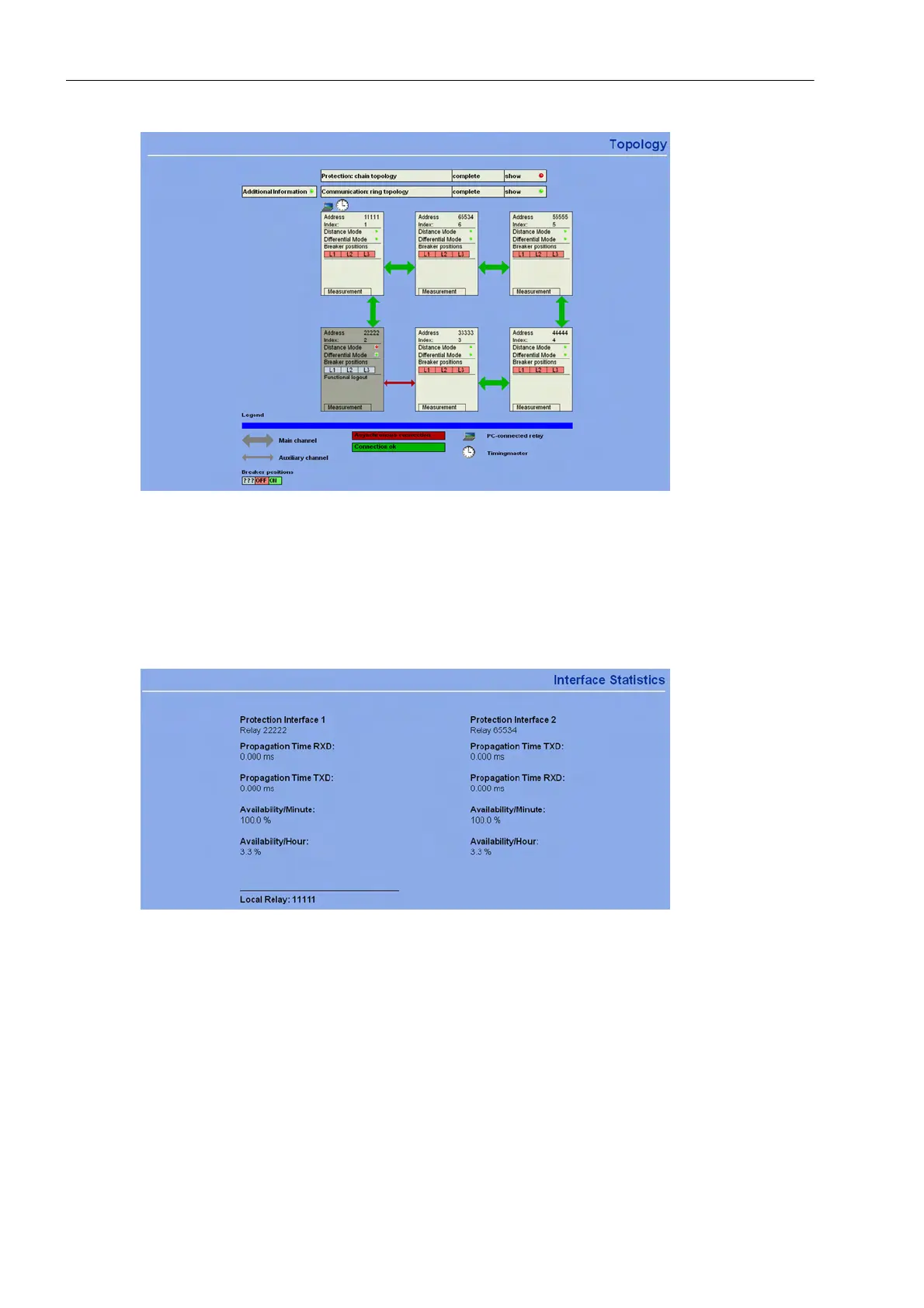

Figure 3-27 Topology – Additional representation
Figure 3-28 shows an example of the protection data interface statistics with 2 protection data interfaces. The
values for the runtime propagation times and the availability are displayed. Both RX and TX direction of the
transmission delay times are displayed, symmetric conditions are assumed if there is no GPS synchronisation.
In this case, the values displayed for the runtime propagation time are identical.
Figure 3-28 Example of runtime propagation times and availability of the protection data interface
