Mounting
5.2 Terminal coding
SIRIUS 3RN2 thermistor motor protection relay
28 Manual, 10/2016, A5E34244868002A/RS-AA/001
5.2
Terminal coding

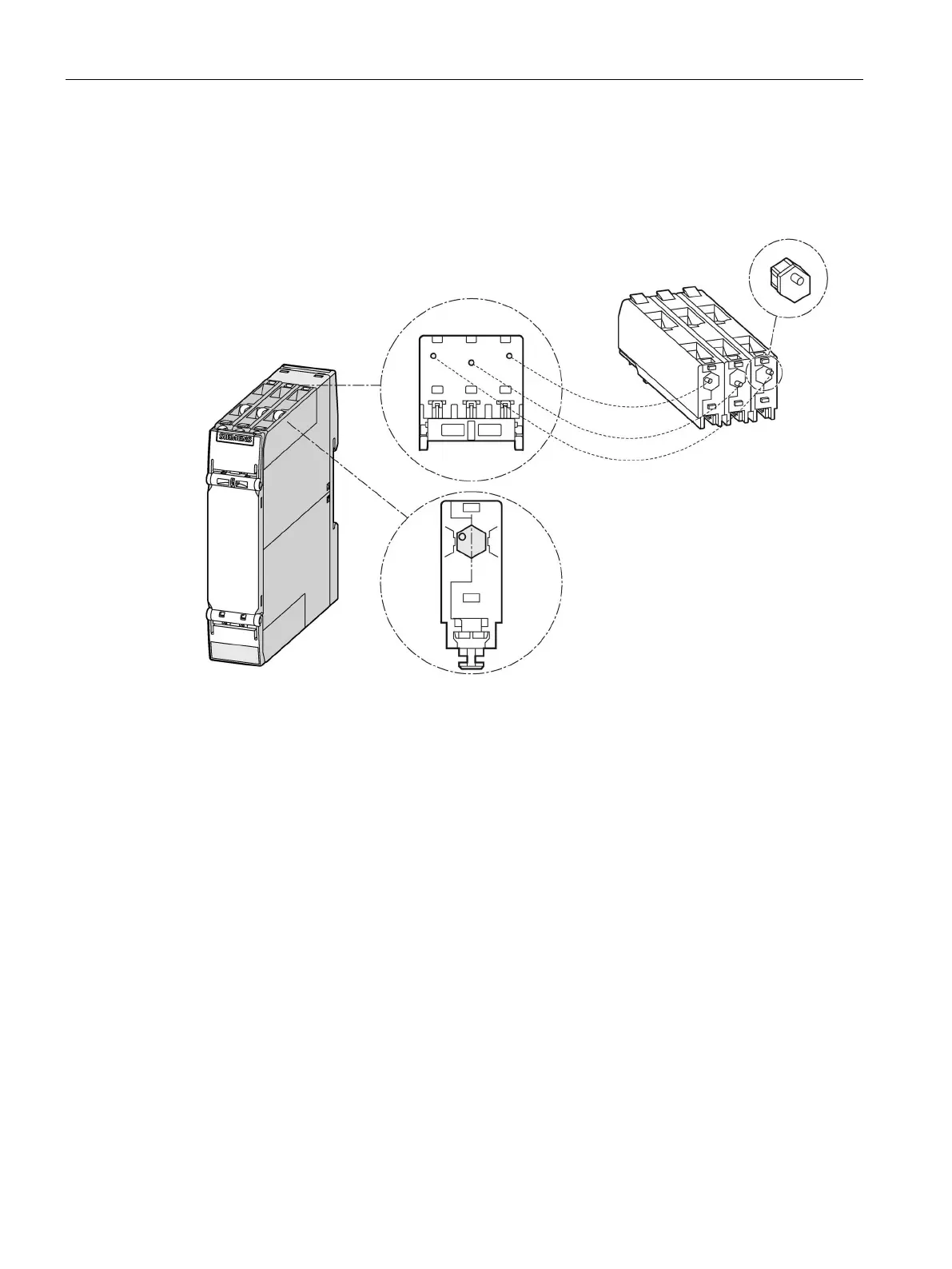

You can fit the terminals with coding pins (3ZY1440-1AA00). This helps you to avoid errors
when replacing the terminals.
