Connection
6.9 Removing the terminals
SIRIUS 3RN2 thermistor motor protection relay
46 Manual, 10/2016, A5E34244868002A/RS-AA/001
6.9
Removing the terminals
WARNING
Hazardous Voltage
Can Cause Death, Serious Injury, or Damage to Property.
Before starting work, therefore, disconnect the system and devices from the power supply.
Procedure
Note
Screw-type terminals/push-in terminals
Screw
-type and push-in terminals are removed from the module on the same principle.
Step
Instructions

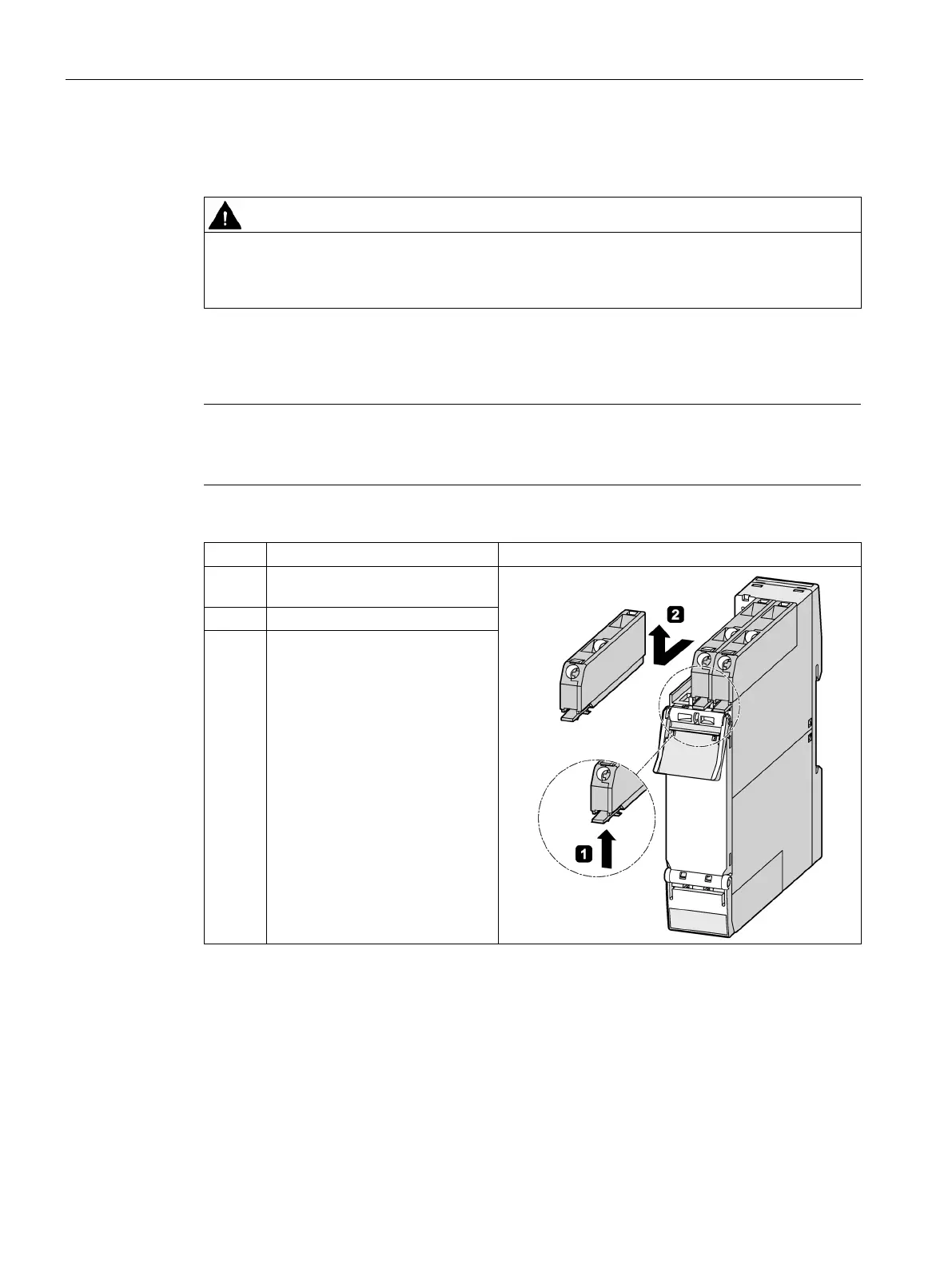

Figure
1 Press the clip of the terminals
upwards.
2
Pull the terminals out to the front.
3 Lift the terminals out of the guide
rail of the device.
