6.8 Attaching the terminals
SIRIUS 3RN2 thermistor motor protection relay
Manual, 10/2016, A5E34244868002A/RS-AA/001
45
6.8
Attaching the terminals
WARNING
Hazardous Voltage
Can Cause Death, Serious Injury, or Damage to Property.
Before starting work, therefore, disconnect the system and devices from the power supply.
Requirements
You must have removed the terminals, for the purpose of replacing a device, for example.
Procedure
Note
Screw-type terminals/push-in terminals
Screw
-type and push-in terminals are inserted into the module using the same principle.
Step
Instructions

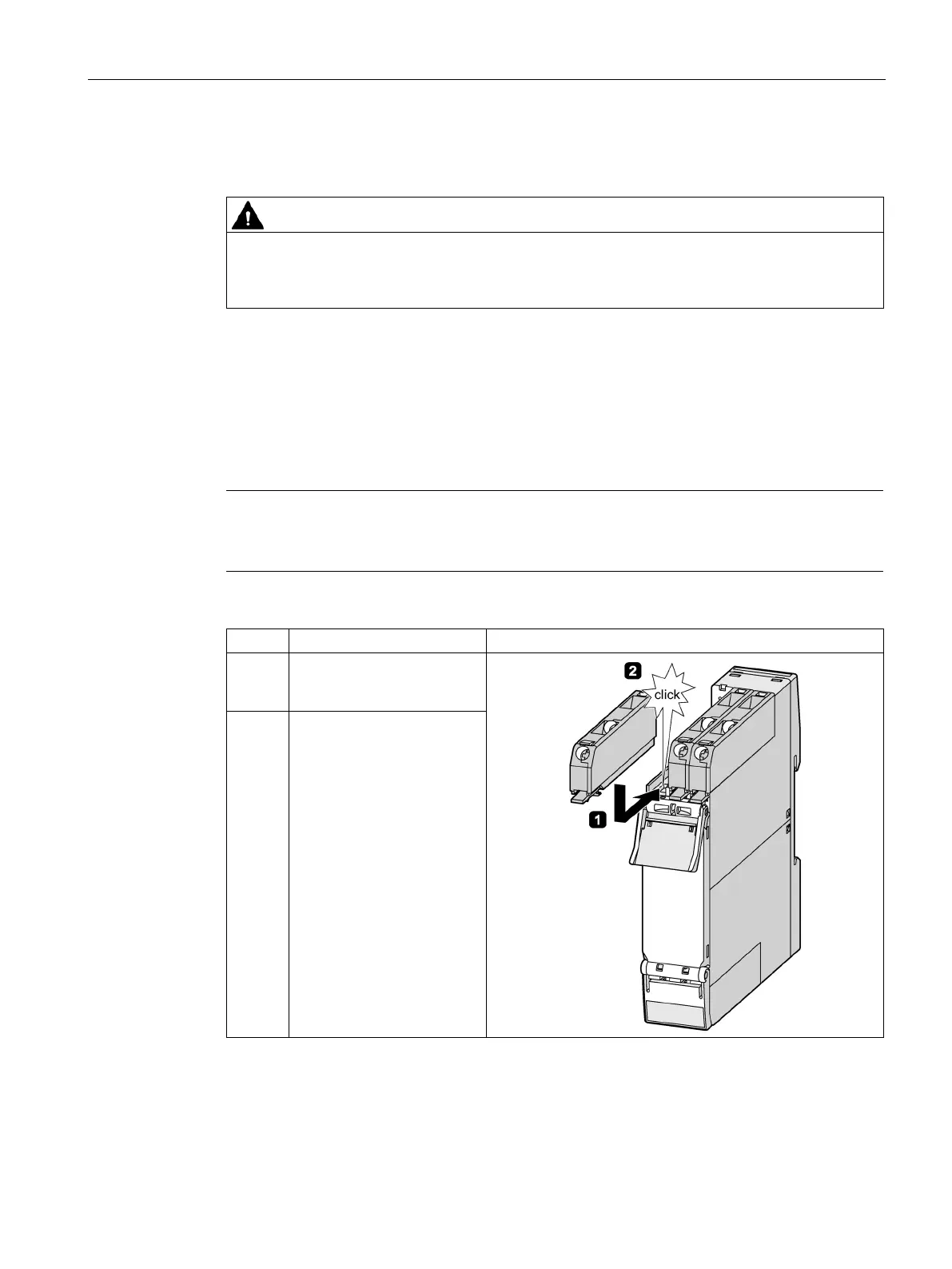

Figure
1 Insert the detachable
terminals into the guide rail
of the device.
2 Slide the detachable
terminals back until they
audibly engage.
