SIRIUS 3RN2 thermistor motor protection relay
Manual, 10/2016, A5E34244868002A/RS-AA/001
61
Dimension drawings
11

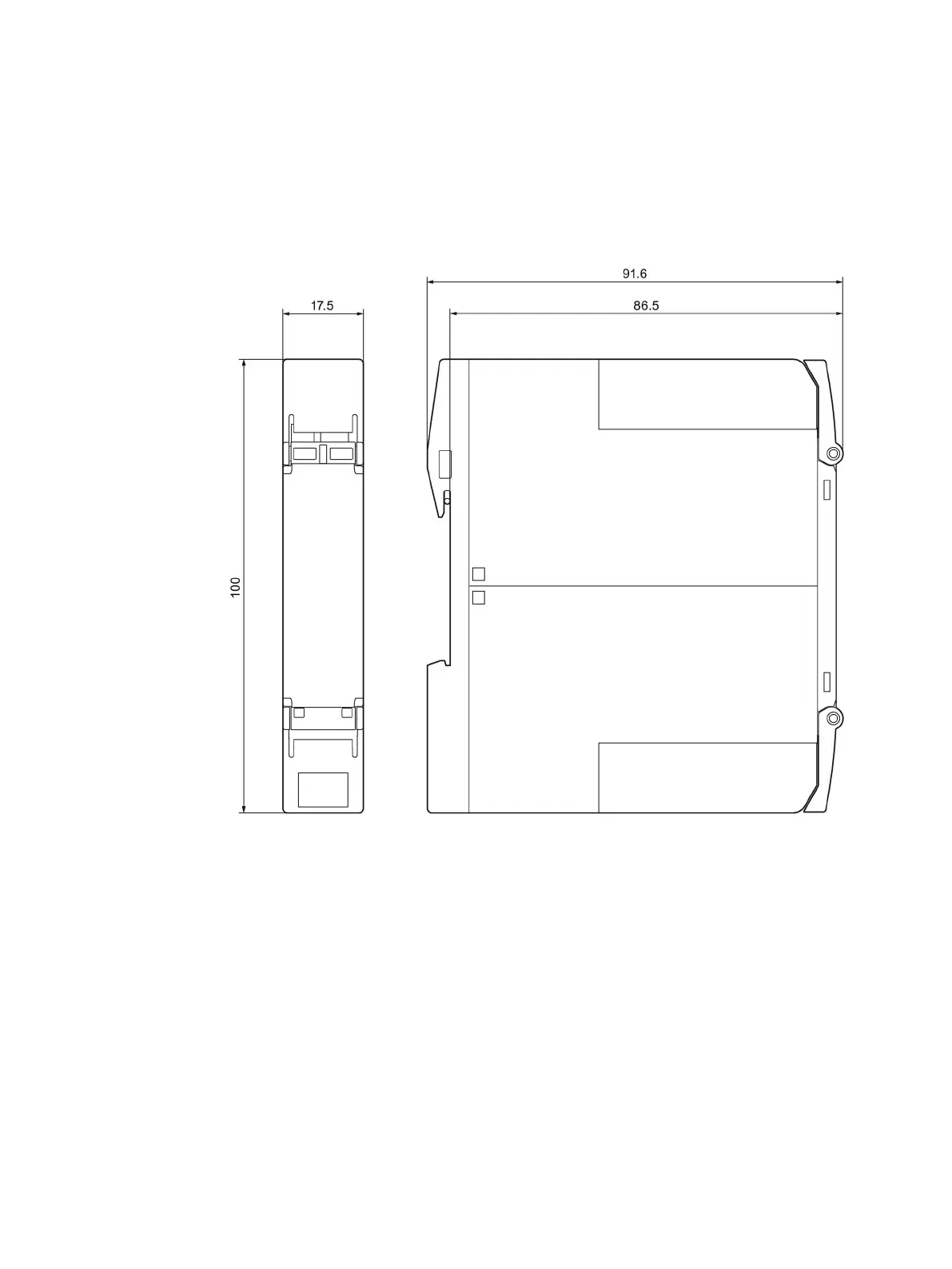

Figure 11-1 Enclosure 17.5 mm for SIRIUS 3RN2 thermistor motor protection relays
