Dimension drawings
SIRIUS 3RN2 thermistor motor protection relay
64 Manual, 10/2016, A5E34244868002A/RS-AA/001

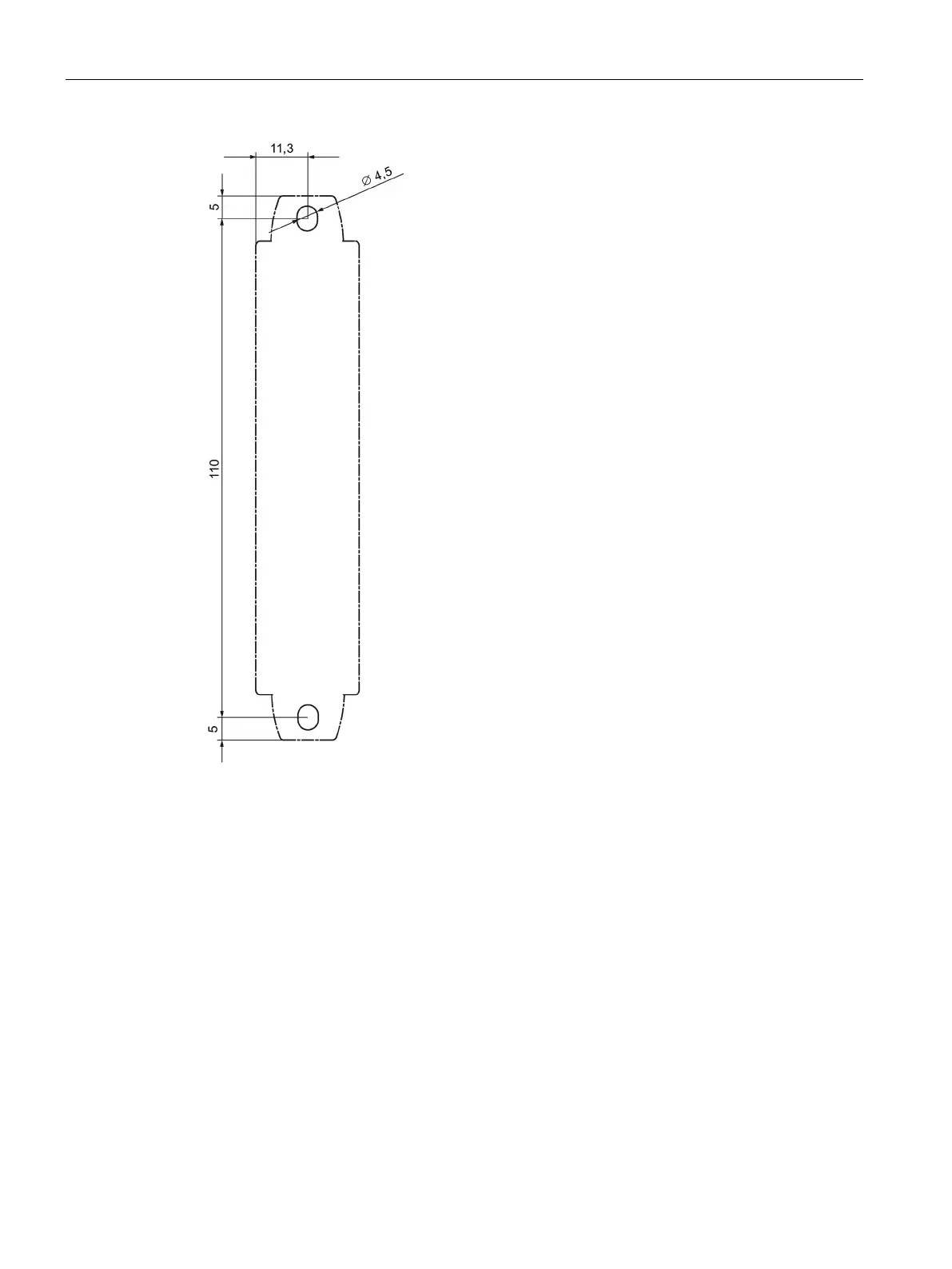

Figure 11-4 Drilling diagram, enclosure 22.5 mm
