6.7 Commissioning via handheld programmer
LR560 (PROFIBUS PA)
50 Operating Instructions, 06/2018, A5E34648471-AE
6.7.4

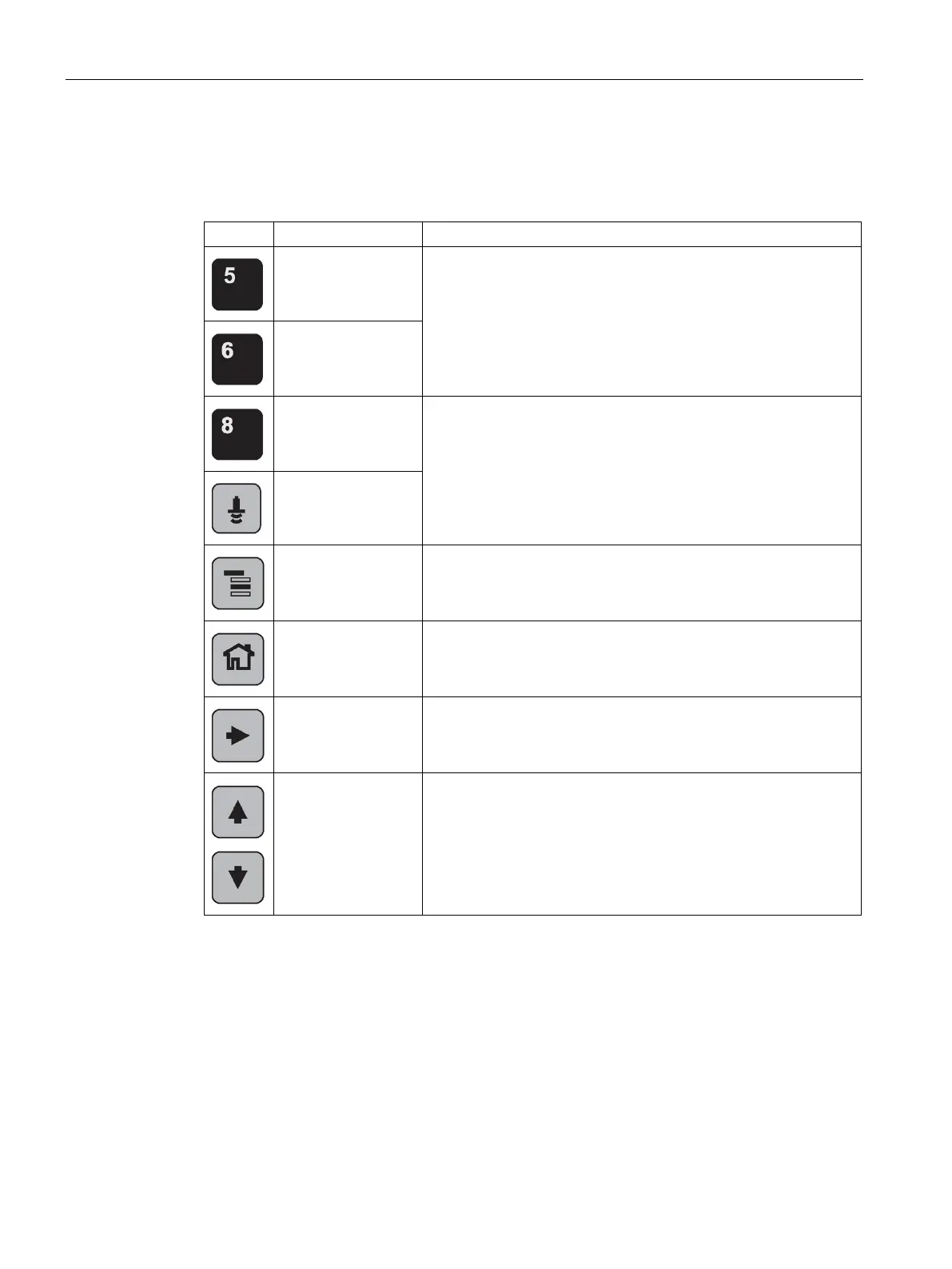

Key functions in measurement mode
Key functions in measurement mode
Key
Function
Result
Updates the loop
current
New value is shown in secondary region of local display.
Updates internal
enclosure tempera-
ture reading
Updates echo confi-
dence value
New value is shown in secondary region of local display.
Updates distance
measurement
Mode
opens
PROGRAM mode
Opens the menu level last displayed in this power cycle, unless
power has been cycled since exiting PROGRAM mode or more
than 10 minutes have elapsed since PROGRAM mode was used.
Then top level menu will be displayed.
Home
toggles local
display
Local display toggles between % or linear units
RIGHT arrow
opens
PROGRAM mode
Opens the top level menu.
UP
or
DOWN arrow
toggles between
linear units and per-
cent
Local display shows measured value in either linear units or per-
cent.
