Programming of Traversing Blocks 04.97
4.11.8 Flying actual-value setting (G87, G88, G89)
The "Flying actual-value setting" function is triggered by a fast input, the block change taking
place on the fly and the actual value being at the same time set to a new measure. In addition,
it is possible to read out the actual value saved at the moment of arrival of the fast input
(command: "Read out flying measured value"). The fast input must be programmed with the
"Flying actual-value setting" function.
The rapid input must be preset in MD 15 of the programmed axis.
Programming:
N10 G90 G77 X100.000 FX4000.00
N15 G89(G88) X50.000 FX2000.00
N20 G90 X300.000 FX4000.00
N25 G87 X400.000 FX4000.00

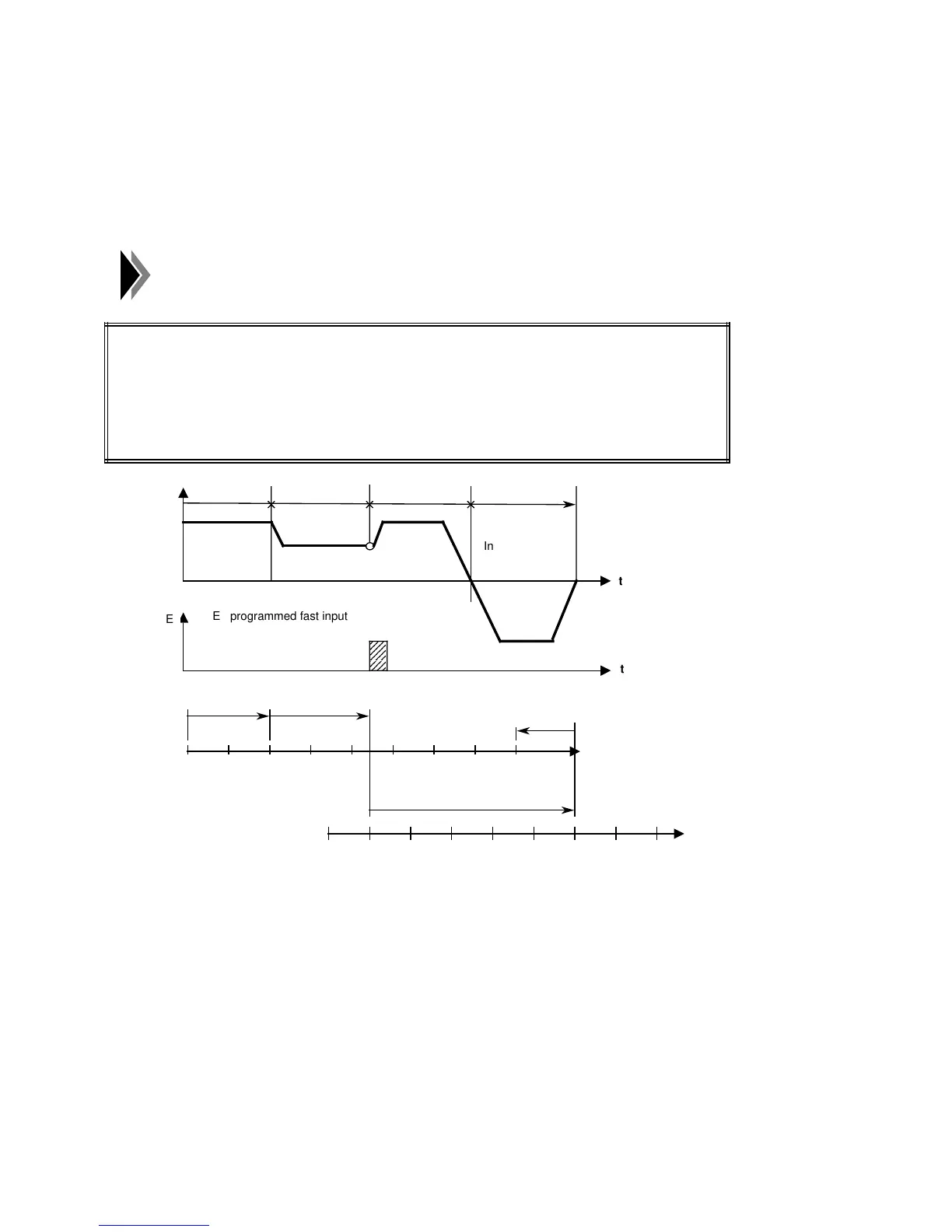

N10 N15F
X
➂➁
➀
N25
N20
a a a a a
a
a a a
a
a
a a a
a
a
a a a
a
a
a a a
a
a a a a a
E
E programmed fast input
t
t
Inversion of the
direction
E
0 50 100 150 200 250 300 350 400
x
N25
N10
N15
0 50 100 150 200 250 300 350 400
x
Measuring
system
N20
Measuring system
displaced
➀ Flying block change from N10 to N15, G89 effecting a movement in positive direction and
G88, a movement in negative direction, at the programmed velocity of N15.
➁ The axis traverses in the specified direction until a positive edge change takes place at the
fast input. This triggers the following reactions:
– Flying block change and immediate processing of block N20
– Flying actual-value setting to the block position of N15 and, therefore, displacement of
the measuring system
– Saving of the current encoder actual value
The programmed position in block N20 refers to the displaced measuring system.
➂ Flying block change from N20 to N25, G87 cancelling the measuring-system displacement
and effecting a reference-measure programming to the block position of N25, as G90 is
still active.
