11 Extinguishing process diagrams
The following diagrams show the execution of an extinguishing process initiated by
an automatic activation, a manual release and a mechanical release on the
cylinders (optional).

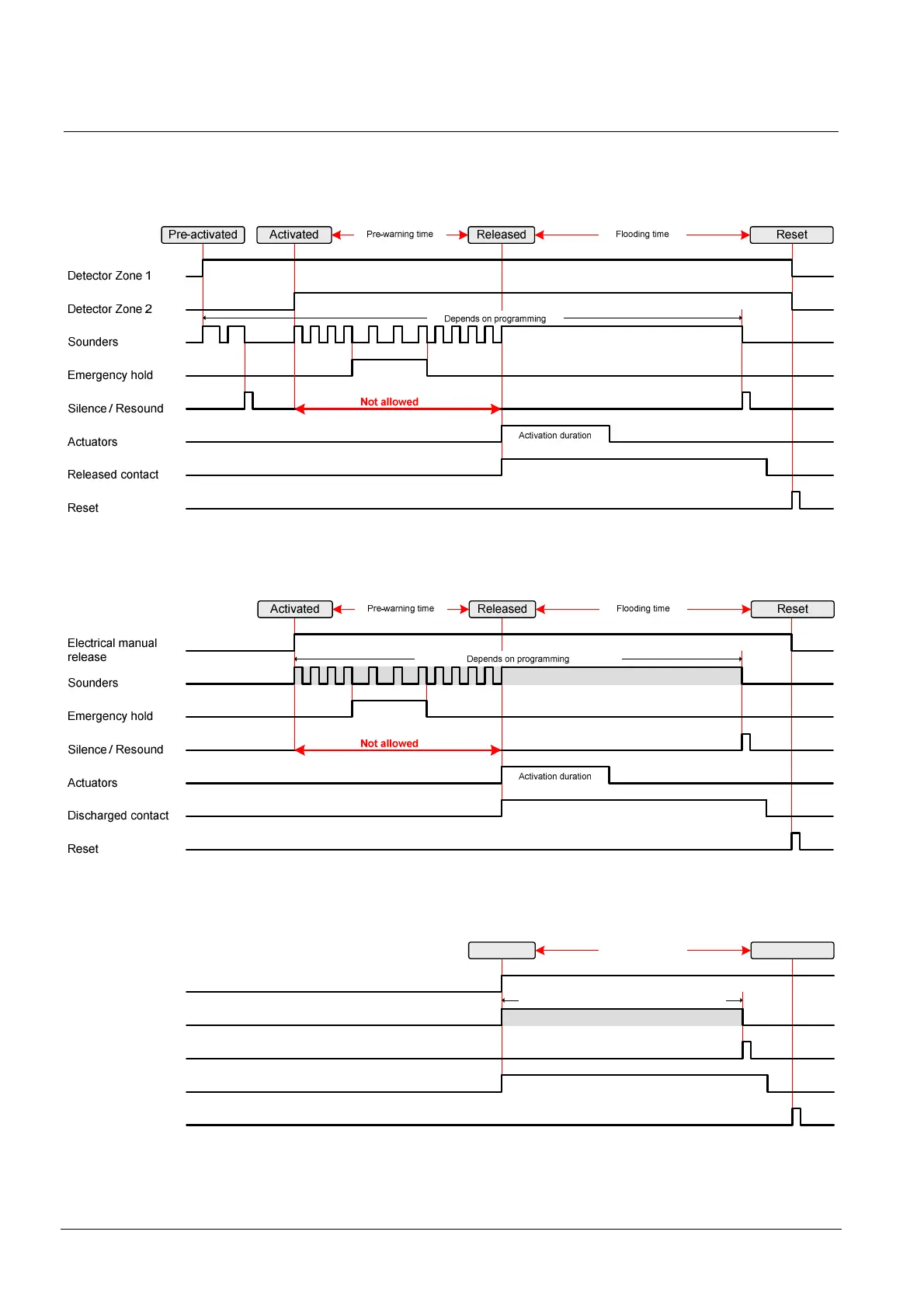

Fig. 33 Extinguishing process initiated by automatic detectors
Fig. 34 Extinguishing process initiated by a manual release (DM1103-L)
Silence / Re-sound
Sounders
Mechanical manual
release (optional)
Discharged contact
Reset
Released Reset
Flooding time
Depends on programming
Fig. 35 Extinguishing process initiated by a mechanical release on the cylinders
