SIGLENT
SSA3000X User Manual 7
5. Esc
During parameter editing process, press this key to clear the inputs in the active function area
and exit parameter input.
When the instrument is in remote mode, use this key to return to local mode.
6. Enter
In parameter editing, the system will complete the input and insert a default unit for the parameter.
1.4.4 Front Panel Connectors

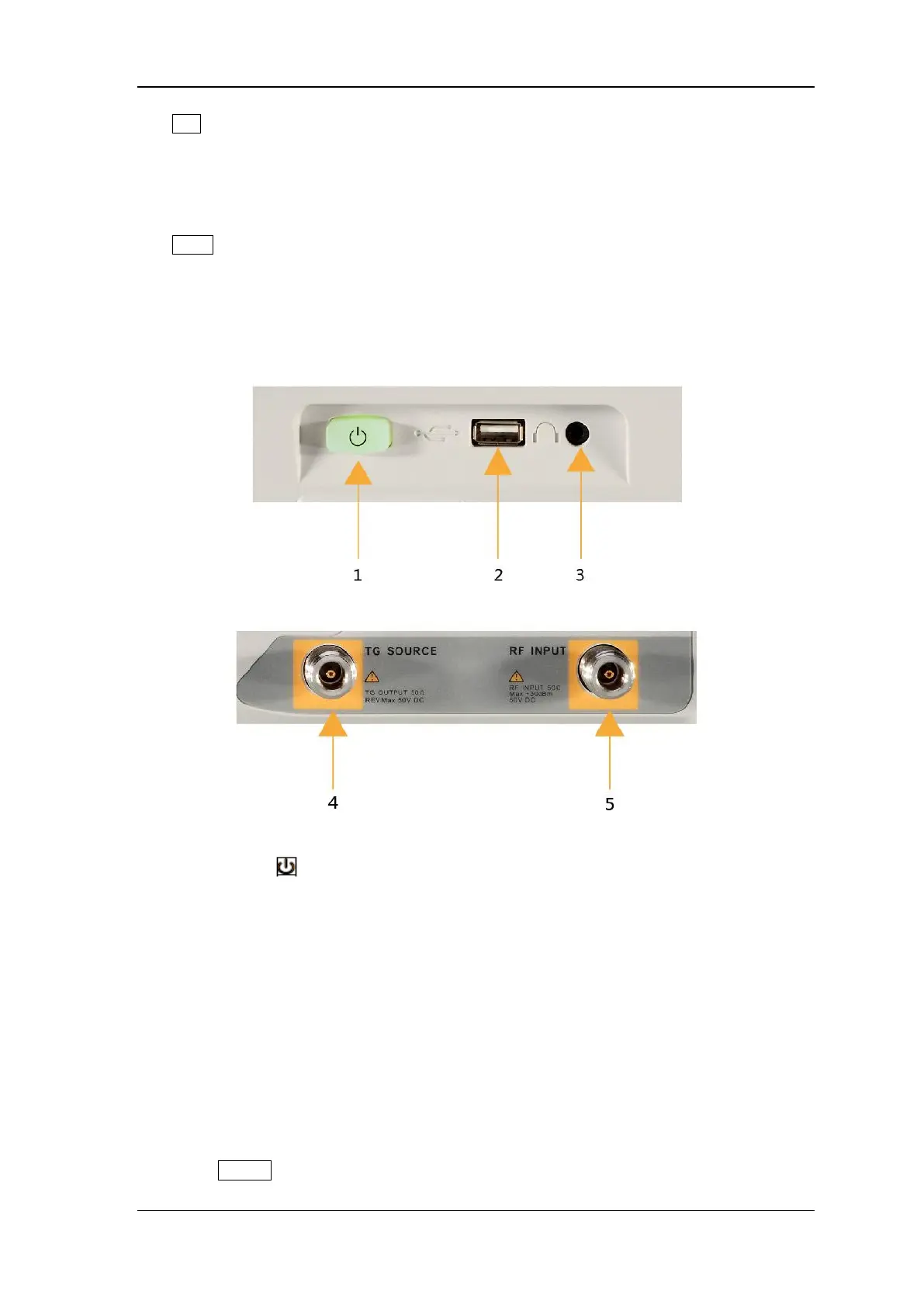

Figure 1-9 Front Panel Connectors
1. Power Switch
Power up/Power down the instrument.
2. USB Host
The analyzer can serve as a host” device to connect external USB devices. This interface is
available for USB storage devices.
Read and store the instrument state or trace in the USB storage device or store the contents
currently displayed on the screen in the USB storage device in .png or .jpg or .bmp format.
3. Earphone Jack
The analyzer provides AM and FM demodulations. Insert the earphone to the jack to acquire the
audio output of the demodulated signal. You can turn on or off the earphone output and adjust the
volume via Demod ->Volume.
