SSA3000X User Manual 6
1.4.2 Front Panel Key Backlight
The on/off state and the color of the backlights of some keys at the front panel indicate the working
state of the spectrum analyzer. The states are as listed below.
1. Power Switch
Flash on and off alternatively, in breathing state: indicate the unit is in stand-by state.
Constant on: indicate the instrument is in normal operating state.
2. Mode
When the function is Spec Analyzer, the backlight is turn off. When in the other mode, the
backlight of Mode turns on.
3. TG
When the TG source is on, the backlight of TG turns on and turns off when the function is off .
1.4.3 Using the Numeric Keyboard
The analyzer provides a numeric keyboard at the front panel (as shown in the figure below). The
numeric keyboard which supports English uppercase/lowercase characters, numbers and
common symbols (including decimal point, #, space and +/-) are mainly used to edit file or folder
name and set parameters (refer to “Parameter Setting”).

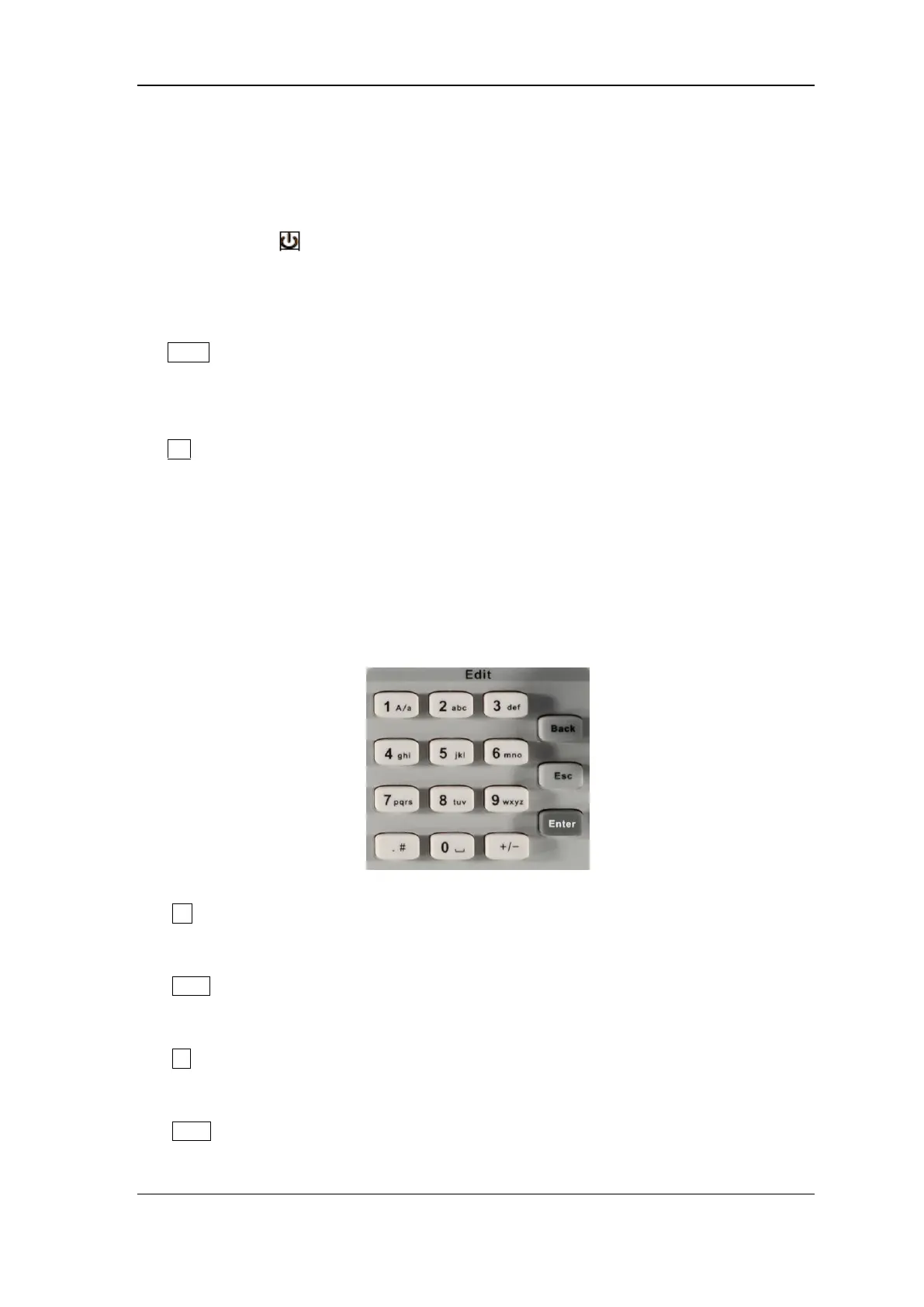

Figure 1-8 Numeric Keyboards
1. +/-
In number input, set the sign of number; in file input , switch in number and letter.
2. 1 A/a
In number input, enter number 1; in file input, switch between uppercase and lowercase letter.
3. . #
In number input, a decimal point; in English input, special character.
4. Back
In parameter editing, press this key to delete the character on the left of the cursor.
