SSA3000X User Manual 10
1.6 Display Annotations

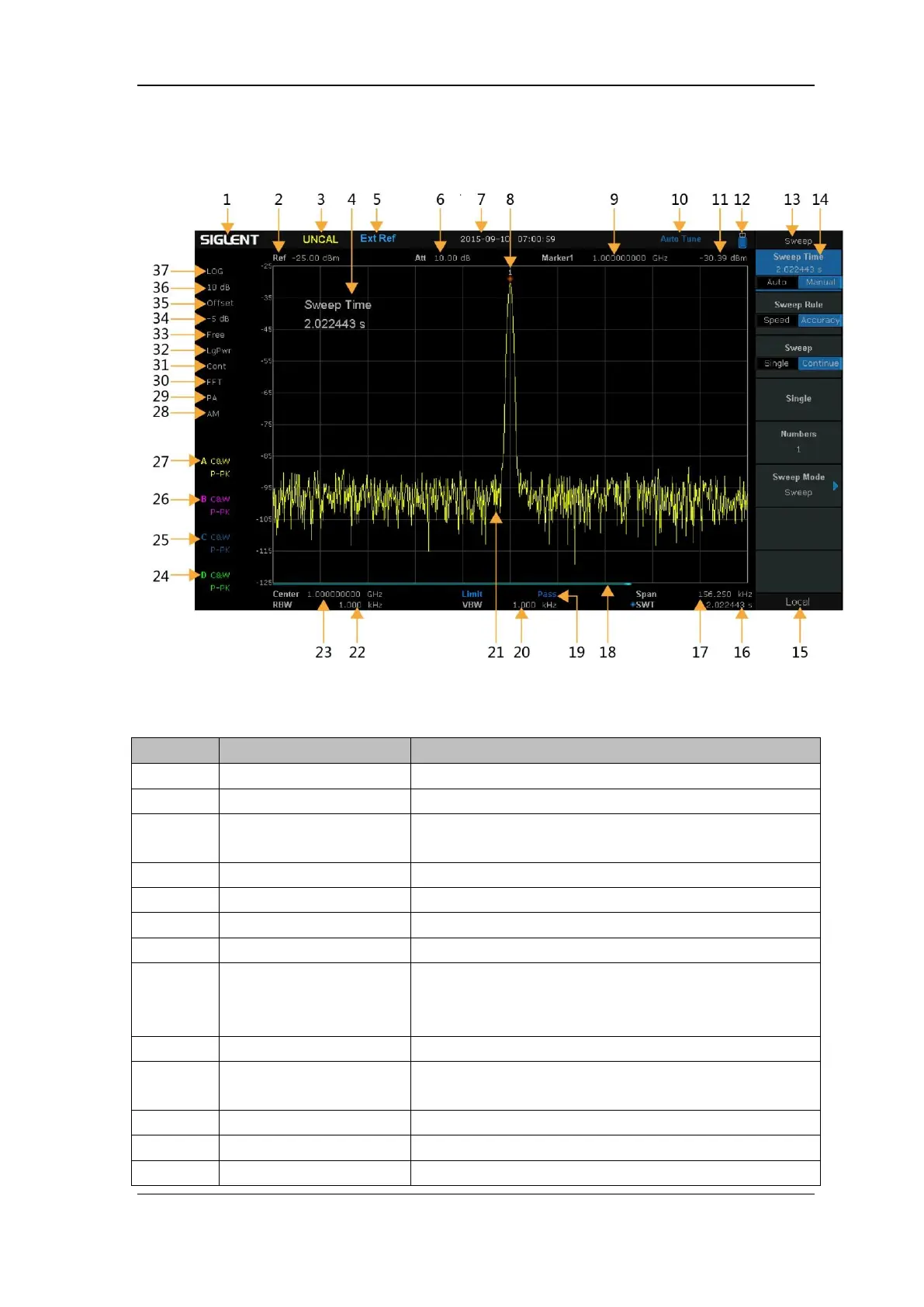

Figure 1-11 User Interface
Table 1-3 User Interface labels
NO.
Name
Description
1
SIGLENT
Logo of SIGLENT
2
Ref
Reference level
3
UNCAL
When the sweep time less than the auto couple time, the
measure result may be inaccuracy, then appear “UNCAL”
4
Active function area
Current parameter and its value
5
EXT REF
Ext 10 MHz refence clock detected indicator
6
Att
Attenuator Value
7
Day and time
System time
8, 9, 11
Maker parameter
8:current active marker;
9:current marker frequency value;
11:current marker amplitude value;
10
Auto Tune
Automatically sets the optimal parameters
12
USB storage device
identification
The identification is displayed when a USB disk is
inserted
13
Menu title
Function of the current menu.
14
Menu items
Menu items of the current function
15
Operation status
Local is local mode, Remote is remote mode, Upgrade
