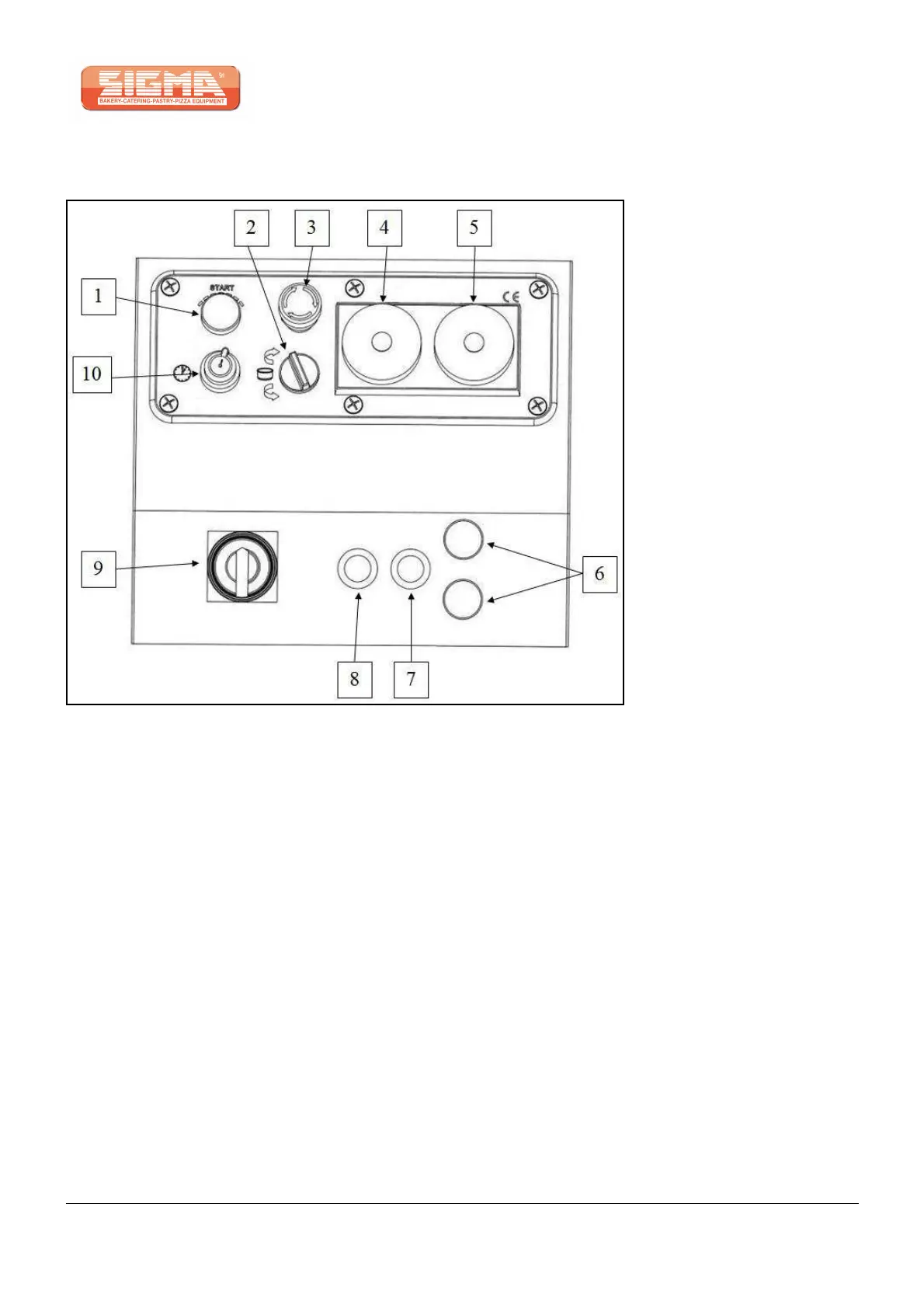

10.2. Control panel
1) START BUTTON
2) BOWL ROTATION
DIRECTION REVERSAL (for a
limited time, ONLY in first
speed)
3) STOP/EMERGENCY
BUTTON
4) FIRST SPEED TIMERS
5) SECOND SPEED TIMERS
6) MIXER MACHINE ASCENT
AND DESCENT BUTTON
7) MAINS INDICATOR (white
light)
8) PHASE ERROR (indicates
when the power supply cables
have been reversed)
9) MASTER SWITCH
10) MANUAL SELECTOR
(activate in case of faulty
timers, you can choose
between first and second
speed)
10.3. Type of drive, motors.
TYPE OF DRIVE: MECHANICAL
BOWL MOTOR T80: 4P 400V 0.75kW 50Hz 3.44-1.98A THREE-PHASE
SPIRAL MOTOR T132: 4/8P 5.1/3kW 400V 50Hz 9.8/12A THREE-PHASE
LIFTING MOTOR T100: 4P 2.2KW 230-400V 50Hz 10.2/5.9A
10.4. Storage and conservation of the machine
10.4.1. Storing the packaged machine:
The machine must be stored in a closed and covered place, on a smooth and solid surface protected from dust and
dirt, from atmospheric agents and in a hygienically safe place.
The temperature must be between 5 and 40°C, humidity must not exceed 90%.
10.4.2. Storing the unpackaged machine.
If the machine has already been unpackaged, in addition to the above, it should be lifted off the ground with a pallet
or other and covered to protect it from damp, dust and dirt. If it is wrapped with cellophane or another type of
plastic, do not hermetically seal underneath the machine to avoid corrosion due to condensation.
