Instructions, us
e and maint
enance m
anual
Pag. 46/49
SAU 160-200

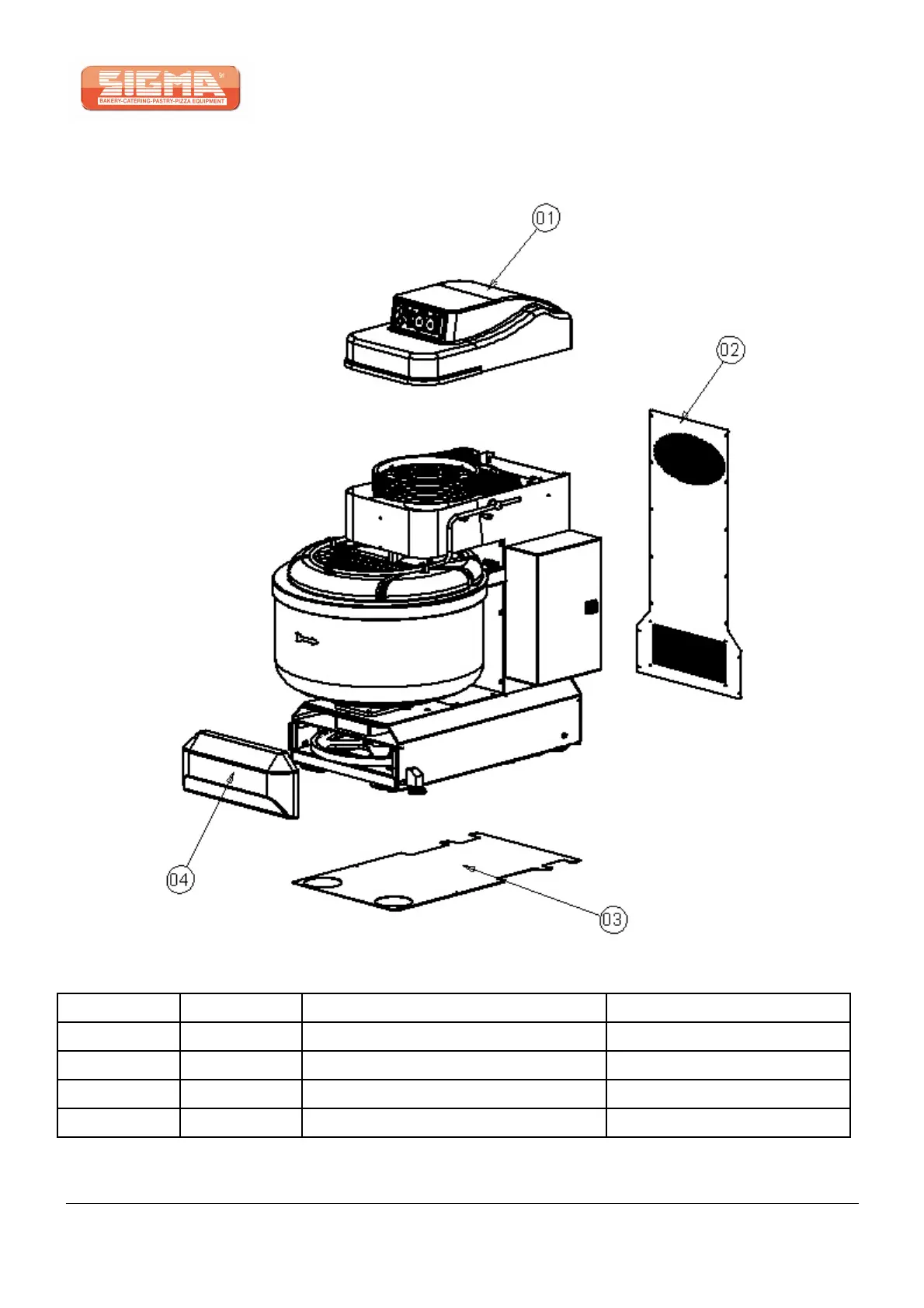

16.1.
Casing exploded
view
Pos.
Q.ty
Description
Drawing
1
1
UPPER CASING
03197045-1
2
1
REAR CASING
86197025-2
3
1
LOWER CASING
86197023-2
4
1
BASE FRONT
CLOSING CASI
NG
861970221-
45
47
